- Page 1 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Door Phone NUDV NUDV - 00 NUDV - 01 NUDV - 02 NC - mod4 NM - mod4 NKLA Installation and Operating instructions...

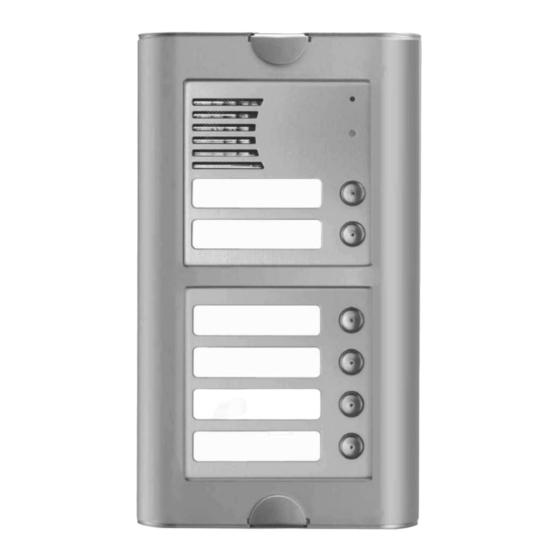

- Page 2 Welcome We congratulate you on purchase of “New All-Purpose Door Guard” (NADG = NUDV), which is the improved version of successful “All-Purpose Door Guard” (ADG = UDV). This all-purpose guard will widely manage to satisfy your needs of communication with persons at the building front door or your company entry, or family house doorway.
-
Page 3: Table Of Contents
Table of Contents BASIC DESCRIPTION..................5 ...................... 5 EATURES ..................6 ODULE SSEMBLY ..................7 ODULE EATURES 1.3.1 NUDV Basic Module................. 7 1.3.2 Extending Module with NC-mod4, NM-mod4 Buttons......10 1.3.3 NKLA Keyboard Module................. 11 1.3.4 Other modules..................11 ............11 NSTALLATION OF UARD SSEMBLY... - Page 4 TECHNICAL PARAMETERS................. 30 ................30 LECTRICAL ARAMETERS ................30 ECHANICAL DIMENSIONS TABLE FOR EASY PROGRAMMING............31 DECT – DISTYBOX..................33 ................33 ISTY ESCRIPTION ................. 33 ISTY IGNALING ................34 ISTY ROGRAMMING ................34 OG ON TO TATION NUDV – Installation and Operating Instructions...
-
Page 5: Basic Description
1 Basic Description 1.1 Features Modular system allows to connect 1 to 64 buttons Voice communication is supplied only from telephone line Impulse and tone dialing (DTMF) Two 16digit numbers with each button (including ρ, #, Flash and Pause) Day/night switching Possibility of the call extension by ρ... -
Page 6: Module Assembly
1.2 Module Assembly The NUDV structural elements are the basic modules with two, one or no buttons and extending button modules NC-mod4 and NM-mod4 with four buttons. Further it is possible to provide the assembly with numerical keyboard and camera module. The complete assembly consists similarly to UDV system of max. -
Page 7: Module Features
1.3 Module Features 1.3.1 NUDV Basic Module The NUDV basic module is supplied in three variants – with two NUDV2 buttons, one NUDV1 button and without buttons, type NUDV0. V1.x Fig. 1 Rear view of basic module Fig. 2 Rear view of setting parts in version V6.x NUDV –... - Page 8 To ensure the basic function the telephone line can be connected – the terminal marked as "a b LINE". It is connected in the same way as any telephone to any branch exchange. The guard’s circuits are supplied from telephone line, so that nothing should be connected for voice communication. If one or two switches are necessary to be used, the A.C.
- Page 9 The "G" Faston 2.8mm terminal protects against static electricity – to be connected to earthing. The "HEAT" jumper serves the switching of board heating. This function requires the connection of 12V supply on "12V" marked terminal. The "EXPANSION" marked connector serves the connection of extending modules by means of flat cable.
-
Page 10: Extending Module With Nc-Mod4, Nm-Mod4 Buttons
1.3.2 Extending Module with NC-mod4, NM-mod4 Buttons This module is supplied in two designs. The NC-mod4 module has four buttons and includes the electronics to be connected to the basic module or to previous NC-mod4 module. This module is only connected by flat cable – buttons and lighting through is already interconnected. -
Page 11: Nkla Keyboard Module
X, the guard will hang up. 1.3.4 Other modules Other modules extending the guard assembly are actually offered on www.alphatech.cz and can be ordered by phone or fax on number: +420272103334. 1.4 Installation of Guard Assembly 1.4.1 Installation on Plaster... -
Page 12: Change Of Nameplates
Each button has its separate nameplate hold by means of plastic flag (see figure). The paper nameplates can be printed from Excel form (to be downloaded on www.alphatech.cz) or from Nset setting program. NUDV – Installation and Operating Instructions... -
Page 13: All-Purpose Guard Operation
2 All-Purpose Guard Operation 2.1 Signaling Overview The all-purpose guard signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under microphone hole). You can listen the signaling samples in Nset setting program. -
Page 14: Guard With Keyboard
guard will lift up the line neither immediately (the button is not the first number from code lock), or with delay (parameter 53) and after period given by parameter 55 will dial the programmed phone number. The dialing number differs by choice mode, which is set in the guard (parameter 47): Day/night mode = being the guard in Day mode, so it is always dialing a number set in parameter 1, in Night mode, it is always dialing a number set in parameter 2. -
Page 15: Person Inside Object
managed by Day/Night setting or mode for two groups of numbers (as described in Chapter 2.2.1). 2.3 Person Inside Object The person inside object is considered a person that is in phone contact with all-purpose guard. 2.3.1 Outgoing Call The outgoing call is the call from guard (caused by visitor). After guard choice the telephone is ringing inside object and the lifting up will allow speaking to the visitor at door. -
Page 16: Programming Of Parameters
3 Programming of Parameters 3.1 Programming through Phone 3.1.1 Entry to Programming The all-purpose door guard will be set to programming mode in two ways: 1. by password – only incoming call! – answer the telephone and dial a number, where the guard is lined (either branch number, if connected to branch exchange or number of state line to object, where the guard is placed . -
Page 17: Programming From Pc - Program Nset
– the guar will answer and if Nset program runs he will report his conversion to programming mode. For details of setup refer to program help and on producer’s pages www.alphatech.cz. NUDV – Installation and Operating Instructions... -
Page 18: Description Of Parameters
4 Description of Parameters 4.1 Direct Dialing – Memories Parameter Value Meaning Basic Exam.1 Exam.2 tt nn… No. nn under button tt tt – Button number (memory), always set in two-digit manner [01-64] nn – telephone number up to 16 digits, we want to store. To mean. - Page 19 m=3 lighting mode – it will close by guard lifting up and stay closed even for ss period after guard hanging up (the line is engaged for this period). m=4 switch mode – it will close after button pressing and open after ss period (used for e.g.
-
Page 20: Basic Parameters
The same command can be set for both switches, then they are activated at the same time. The advantage is to set the same command both for switch closing and command to guard hanging up (parameter 43) aa=bb. List of related parameters: 31 36 37 38 43 8# 83 Parameter Value Meaning Basic... - Page 21 Parameter Value Meaning Basic Exam.1 Exam.2 ρ ρ ρ sign for call extension z – sign for call extension ρ or # (10sec before call end the guard will send a notice, then the call may be extended) List of related parameters: 52 8# 84 Parameter Value Meaning Basic...
-
Page 22: Time Parameters
Parameter Value Meaning Basic Exam.1 Exam.2 keyboard connection c – c=0 only NC-mode connected to the basic module c=1 the keyboard connected on the first position c=2 the keyboard connected on the second position c=3 the keyboard connected on the third position ATTENTION !! This parameter setting will sharply influence whole guard function. - Page 23 Parameter Value Meaning Basic Exam.1 Exam.2 time among button presses w – max. time [sec] among button presses [range 1-9] normal buttons switch closing – if time between two next presses is bigger than w time, the code is not evaluated correctly. dialing –...
- Page 24 Parameter Value Meaning Basic Exam.1 Exam.2 number of rings before hanging up h – after finishing the dialing it calculates number of KVT (ringing tones). If the number exceeds h value, it will hang up [range 04-99]. The dialing is repeated in case, when the dialing mode of 2 groups is set.
-
Page 25: Presetting And Deleting
4.5 Presetting and Deleting Parameter Value Meaning Basic Exam.1 Exam.2 executes basic setting executes setting per exam. 1 executes setting per exam. 2 This setting does not influence 1 and 2 (numbers stored in memory) Parameter Value Meaning Basic Exam.1 Exam.2 deletes all numbers in group 1 (Day mode) deletes all numbers in... -
Page 26: System Setting
4.7 System Setting Parameter Value Meaning Basic Exam.1 Exam.2 number of non-fitted buttons of basic module The basic module is fitted with 2 buttons as standard, i.e. s = 0, s = 1 is set up for basic module with one button and s = 2 for module without buttons. This setting is a factory one, no service can change it and so it is recommended not to change this parameter. - Page 27 in DAY + NIGHT mode 2 122 2 4562 pasw. hhhhhh for r in r hhhhhh DAY mode pasw. hhhhhh for r in r hhhhhh NIGHT mode command aa from phone r aa 155 266 155 266 155 266 after r switch closing ss period [sec] of r switch r ss 105 205 102 202 105 205...
- Page 28 pause duration / interdigit (800ms) (800ms) (800ms) executes basic setting executes setting per exam. 1 executes setting per exam. 2 deletes all numbers in group 1 (Day mode) deletes all numbers in group 2 (Night mode) basic setting only only 3.. for parameters 3x basic setting only only 4..
-
Page 29: List Of Presetting Parameters
4.9 List of Presetting Parameters parameter bas. cast. example 1 example 2 switch 1 mode lock m=1 lock m=1 lock m=1 switch 2 mode lock m=1 camera m=2 prog. m=5 passw.Day+Night switch 1 4561 passw. Day+Night switch 2 4562 passw.Day switch 1 passw.Day switch 2 passw. -
Page 30: Technical Parameters
5 Technical Parameters 5.1 Electrical Parameters Parameter Value Conditions Minimum line current 18mA line answered Minimum line voltage line hang up Voltage on line while guard < 8V I = 20mA answers (VA characteristics) < 12V I = 60 mA Leakage in hang up status <... - Page 31 6 Table for Easy Programming Complete the values in empty part of table you want to program. In double- frame part there are whole programming commands, so the programming is very simple and without errors. Furthermore such programmed values will be available for next changes in manual.
- Page 32 Day+Night Password for switch 1 Day+Night Password for switch 2 Password for switch 1 Password for switch 2 Password for switch 1 Night Password for switch 2 Night Clos. of switch 1 fr. phone Clos. of switch 2 fr. phone [sec] Closing time of switch 1 [sec]...
-
Page 33: Dect - Distybox
7 DECT – DistyBox 7.1 DistyBox Description This module is a separate box allowing the connection of analogue telecommunication device to wireless system DECT – GAP (e.g. Siemens line GigaSet, TopCom line Butler etc.). DistyBox is suitable for guard connection, because it is not necessary place conductors from house to the... -
Page 34: Distybox Programming
7.3 DistyBox Programming You can enter the programming mode 20 sec – 10min after power supply ON by ρρ ρρ9 choice (to dial/busy tones) namely after DistyBox power supply ρρ ρρ ON. If you had entered a new PIN in previous programming (par.2) so now you must enter a correct PIN for entry to programming (following main reset (par. - Page 35 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 36 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
