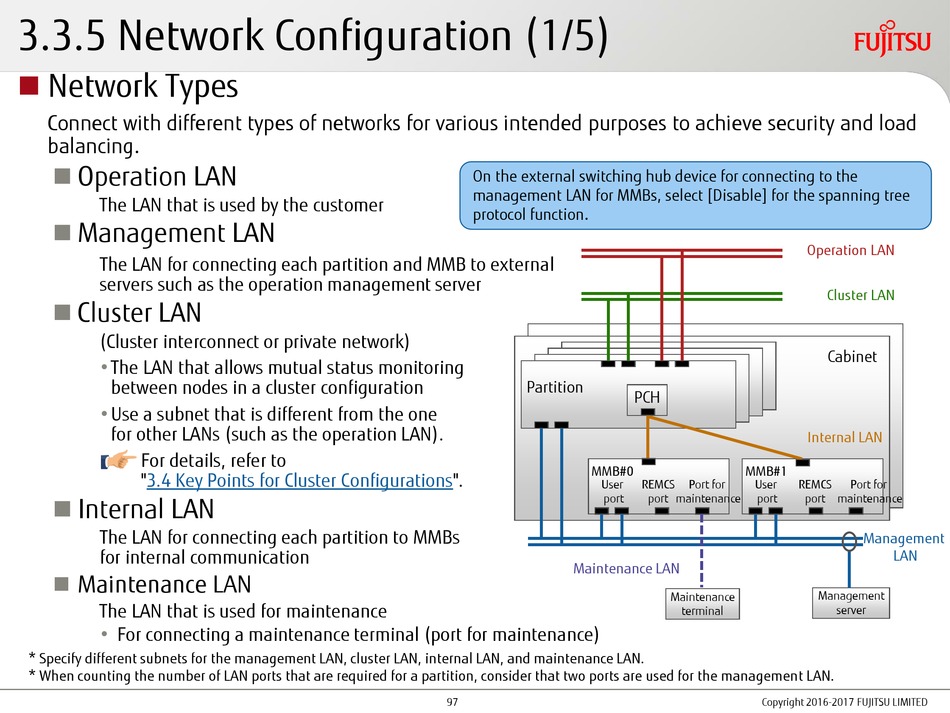

3.3.5 Network Configuration (1/5)
Network Types

Connect with different types of networks for various intended purposes to achieve security and load
balancing.
Operation LAN

The LAN that is used by the customer

Management LAN


The LAN for connecting each partition and MMB to external
servers such as the operation management server
Cluster LAN

(Cluster interconnect or private network)
•The LAN that allows mutual status monitoring
between nodes in a cluster configuration
•Use a subnet that is different from the one
for other LANs (such as the operation LAN).
For details, refer to
"3.4 Key Points for Cluster
Internal LAN

The LAN for connecting each partition to MMBs
for internal communication
Maintenance LAN

The LAN that is used for maintenance
• For connecting a maintenance terminal (port for maintenance)
* Specify different subnets for the management LAN, cluster LAN, internal LAN, and maintenance LAN.
* When counting the number of LAN ports that are required for a partition, consider that two ports are used for the management LAN.
PRIMEQUEST 2000 Series Design Guide
On the external switching hub device for connecting to the
management LAN for MMBs, select [Disable] for the spanning tree
protocol function.
Configurations".
97
Partition
PCH
MMB#0
User REMCS Port for
port port maintenance
Maintenance LAN
Maintenance
terminal
Operation LAN
Cluster LAN
Cabinet
Internal LAN
MMB#1
User REMCS Port for
port port maintenance
Management
LAN
Management
server
