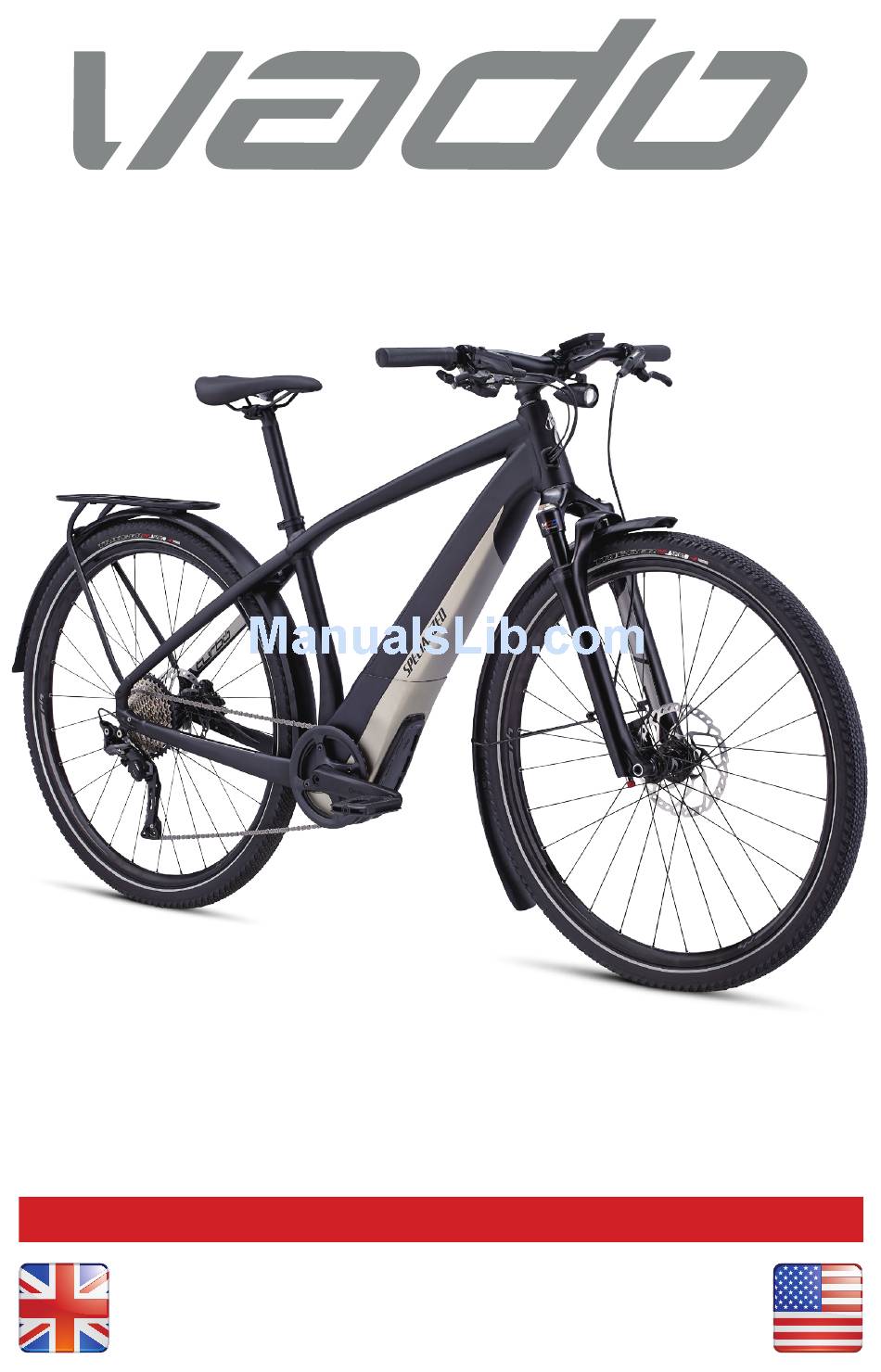

- Page 1 USER MANUAL...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ........................1 1.1. WARRANTY ..................................1 2. VADO COMPONENTS ......................2 3. GENERAL INFORMATION ABOUT YOUR VADO ..............3 3.1. INTENDED USE ...................................3 3.2. PEDELEC / EPAC ................................3 3.3. L1e S-PEDELEC (SPEED PEDELEC) ..........................3 3.4. STARTING THE SYSTEM ..............................3 4. -
Page 4: Introduction
1. INTRODUCTION IMPORTANT: This user manual is specific to your Specialized Turbo VADO bicycle (the VADO) and should be read in addition to the Specialized Bicycle Owner’s Manual (“Owner’s Manual”). It contains important safety, performance and technical information, which you should read before your first ride and keep for reference. You should also read the entire Owner’s Manual, because it has additional important general information and instructions which you should follow. -
Page 5: Vado Components
46. License plate* 11. Cassette 23. Remote** 35. Rear brake caliper 47. Fender 12. Derailleur hanger 24. Mirror* 36. Rear brake rotor * 45 km/h VADO version only ** Left side on 25 km/h (20 mph USA) VADO version only... -
Page 6: General Information About Your Vado
3.2. PEDELEC / EPAC If your VADO is classified as a Pedelec, your motor support will automatically switch off when you reach a maximum speed of 25 km/h (15.5 mph) or 20 mph in the US. A driver’s license or insurance is typically not required. -
Page 7: General Notes About Assembly
4.2. HEADSET The VADO frames use a 1 1/8” (41.8mm x 8mm x 45°) Campagnolo Standard compatible top and bottom bearing. Ensure that replacement bearings are compatible with the Specialized headset specification. No tools are needed for installation or removal of both bearings. -
Page 8: Seatpost
For general instructions regarding the installation of the seatpost, refer to the appropriate section in the Owner’s Manual. The VADO frames have a 30.9mm seatpost diameter and require that the seatpost have a tolerance of 30.78mm to 30.95mm. -
Page 9: General Notes About Riding
The VADO bicycle can also be ridden as a normal bicycle without motor assistance by switching the display to the OFF mode. The same applies if the battery charge drops below 1%. -
Page 10: Before Your First Ride
WARNING! Specialized bicycles are only designed and tested for use by one person at a time. Carrying a child on your Specialized bicycle is at your own risk. If you choose to install an accessory on your Specialized bicycle such as a trailer, carrier, or trailer cycle, make sure it is compatible and refer to the manufacturer’s instructions and your Authorized Specialized Retailer. -
Page 11: General Notes About Maintenance
If you hear any creaks or discover any cracks, no matter how small, or any damage to components, immediately stop riding the part and have it inspected by your Authorized Specialized Retailer. The bicycle should also be maintained regularly by an Authorized Specialized Retailer, which means it should be cleaned, inspected for signs of corrosion and/or cracks and lubricated. -
Page 12: Replacing Parts On Your L1E S-Pedelec
7. REPLACING PARTS ON YOUR L1e S-PEDELEC The VADO bicycle, as originally spec’d, is approved as a Pedelec or an L1e S-Pedelec. If you change components on the bicycle, it may no longer be approved by your local regulatory authority Below is a general summary of components that may affect governmental approval if changed. -
Page 13: System Interface
+ BUTTON: Increases the amount of support. Pressing and holding activates the walk-assist mode. „ - BUTTON: Decreases the amount of support. „ LIGHT/HORN: Turns the light on/off (25 km/h or 20 MPH USA VADO models) or activates the horn (45 km/h „ VADO models). 8.1. SUPPORT MODES The VADO motor support is available in three different drive settings - TURBO, SPORT and ECO. -

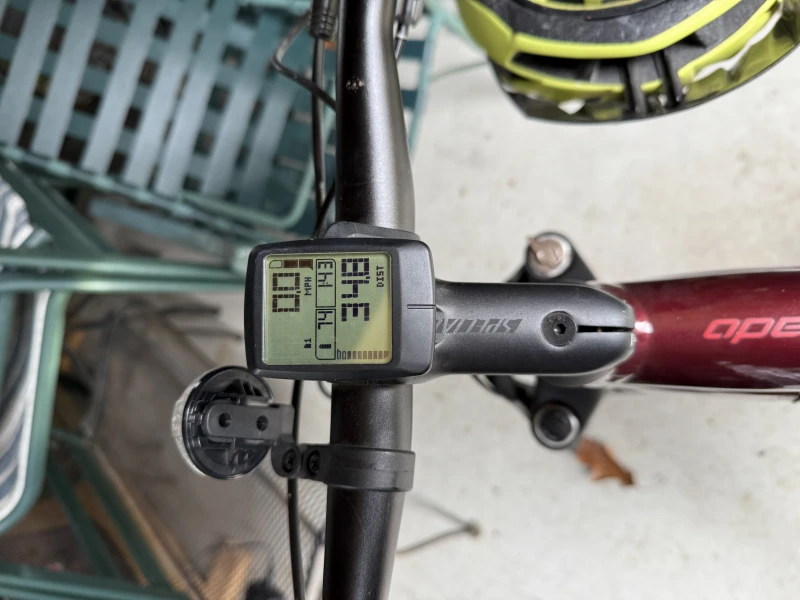

Page 14: Display Functions (Lcd Display)
8.2. DISPLAY FUNCTIONS (LCD DISPLAY) HEADLIGHT BLUETOOTH SUPPORT LEVEL CLOCK (12/24hr) WARNING SPEED BATTERY WALK-ASSIST METRIC / IMPERIAL - TRIP DISTANCE TRIP DISTANCE RIDE TIME - RIDE TIME - ODOMETER METRIC / IMPERIAL ODOMETER SETTING THE TIME / UNIT To set the time, long-press the SET button once. When the „... - Page 15 ADJUSTING THE MOTOR SUPPORT SPORT TURBO Press the “+” or “-” button to increase or decrease the level of „ motor support. TURNING THE LIGHT ON AND OFF Press and release the light button to turn the light on or off. „...
-
Page 16: Display Functions (Tft Display)
The TFT display is equipped with a highly adjustable operating system that may improve over time. Make sure you periodically visit your Authorized Specialized Retailer for potential software updates to make sure you have the latest software and features. - Page 17 ADJUSTING THE MOTOR SUPPORT 12:34 TURBO SPORT TURBO The VADO is equipped with several levels of motor support. Press the “+” or “-” button on the remote to increase or decrease „ the level of motor support. POWER SCREEN 12:34...
- Page 18 MAP SCREEN In addition to the Home screen information, the Map screen shows: The rider’s current position. „ A trace of the distance covered or a planned route. „ The rider can interact with the map by: Pinching and spreading to zoom in and out. „...
- Page 19 ARCHIVED TRIP 12:34 27.10.2016 TRIP TIME 03:30 CLIMB MAX HEIGHT 1024 A user profile is created when a rider logs in and creates an account by connecting to the bike via a smartphone. All archived trips are associated to this account. The profile shows the following information: Date „...
- Page 20 TOUCH CONTROL 12:34 TOUCH CONTROL Always obey the traffic laws and pay attention to traffic. Standstill Always Standstill: The setting means touch screen functionality is „ disabled when riding (default). Always: The setting means touch screen functionality is enabled „ when riding.
- Page 21 LANGUAGE 12:34 LANGUAGE English Deutsch Français Español The rider can choose between the following languages: English „ Italiano Deutsch „ Español „ Français „ Nederlands Italiano „ Nederlands „...
- Page 22 BIKE 12:34 BIKE Bike Frame ID WSBC601123456K 123 Days Inspection 172 Miles Usage Charging Cycles Odometer 1886 km Software Versions BLOKS. OS Motor The BIKE setting displays the following specification information: Battery Bike „ Usage „ Software versions. „ SWITCHING OFF When turning the battery off, the screen will display: Battery charge (Icon + %) „...
-
Page 23: Battery / Charger
Only operate the battery between the temperature range of -20° C (-4° F) and +70° C (+158° F). „ Only use the VADO battery with the VADO bicycle. Do not use the VADO battery with any other bicycle or any „... -
Page 24: Charge Level Display
If your battery or charger exhibits any signs of damage, do not use it and immediately bring it to your Authorized Specialized Retailer for inspection. The battery can be charged whether installed in the bicycle or not. Refer to the appropriate instructions regarding removing and installing the battery. -
Page 25: Installing The Battery
At 10% battery charge remaining, the system will start to reduce the amount of support. At 1%, the system switches off the motor support. If your bicycle is at a standstill for at least 10 minutes, the Battery Management System will switch the system off. In order to continue riding with support, you have to switch the system on again. -
Page 26: Removing The Battery
Always unplug the charger from the battery and the wall socket before cleaning. CAUTION: Never use a high-pressure cleaner when cleaning your VADO. Instead, use a dry or slightly damp cloth. Please ensure no water comes into contact with the electrical components while washing. -
Page 27: Battery Technical Data
9.8. BATTERY TECHNICAL DATA DESCRIPTION UNIT SPECIFICATION OPERATING VOLTAGE °C 0 — +50 CHARGING TEMPERATURE °F +32 — +122 °C -20 — +70 DISCHARGING TEMPERATURE °F -4 — +158 °C -20 — +35 STORAGE TEMPERATURE °F -4 — +95 DEGREE OF PROTECTION IP67 WEIGHT BATTERY... -
Page 28: Transport
Retailer may also have helpful information available. When carrying the battery outside the frame, you should use an approved battery transport box. CAUTION: Be aware that your VADO bicycle is significantly heavier than a bicycle without motor support. Use caution when handling, carrying or lifting your VADO bicycle. -
Page 29: Specifications
Use a quality pressure gauge and refer to the tire pressure recommendations written on the side of the tires. Because of the extra weight of the VADO, as a rule of thumb, tire pressure should generally be higher compared to a regular bicycle. -
Page 30: Ec - Declaration Of Conformity
Morgan Hill, CA 95037, USA Tel: +1 408 779-6229 hereby confirms for the following products: Product description: EPAC (Electrically Pedal Assisted Cycle) Model designation: Specialized Turbo VADO 2.0 Specialized Turbo VADO 3.0 Specialized Turbo VADO 4.0 „ „ „ Year of construction:... -
Page 31: Retailer Service Schedule
13. RETAILER SERVICE SCHEDULE 1st Inspection: 2nd Inspection: 3rd Inspection: After approx. 200 kilometers (120 miles) After approx. 1000 kilometers (600 miles) After approx. 2000 kilometers (1200 miles) Work done: Work done: Work done: ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________... -
Page 36: Specialized Bicycle Components
SPECIALIZED BICYCLE COMPONENTS 15130 Concord Circle, Morgan Hill, CA 95037 (408) 779-6229...
