between DCP and SNMP Channels.
DCP and SNMP Communication traffic will be displayed in either hexadecimal or ASCII. Data transmitted by the
NetGuardian 216 is displayed in green text, and data received by the NetGuardian 216 is displayed in red text.
To stop Analyze Mode monitoring, click the Stop button. To exit Analyze Mode, click the Exit button.
8

Updating Firmware

Your NetGuardian 216 ships with the correct firmware already installed. You will need to upload firmware to the
unit only if updated firmware is released. It is recommended that you upload firmware using the T/NG216
software included with the NetGuardian 216. However, some users may prefer to use two other DPS Telecom
utility programs, ComloaderW for Windows or DPSLoad for MS-DOS. Only one program needs to be used to
upload firmware.
8.1

Updating Firmware with T/NG216

To update NetGuardian 216 firmware, use the following instructions:
1. Open the T/NG216 main menu.
2. Click the Firmware Load icon.
Note: The NetGuardian 216 is offline during the firmware loading process.
4. Power the NetGuardian 216
5. Connect the DB9 connector of the included download cable to the COM port of your PC.
6. Connect the other end to the craft port on the front panel of the NetGuardian 216.
7. Select a task file by typing its path name in the Task File box, or browse to the file by clicking the Browse
button. Only ".tsk" files will be available for your selection.
Warning : Once you start the upload, do not disrupt the process.
8. Click the Start button. The firmware upgrade will be automatically uploaded to the NetGuardian 216.

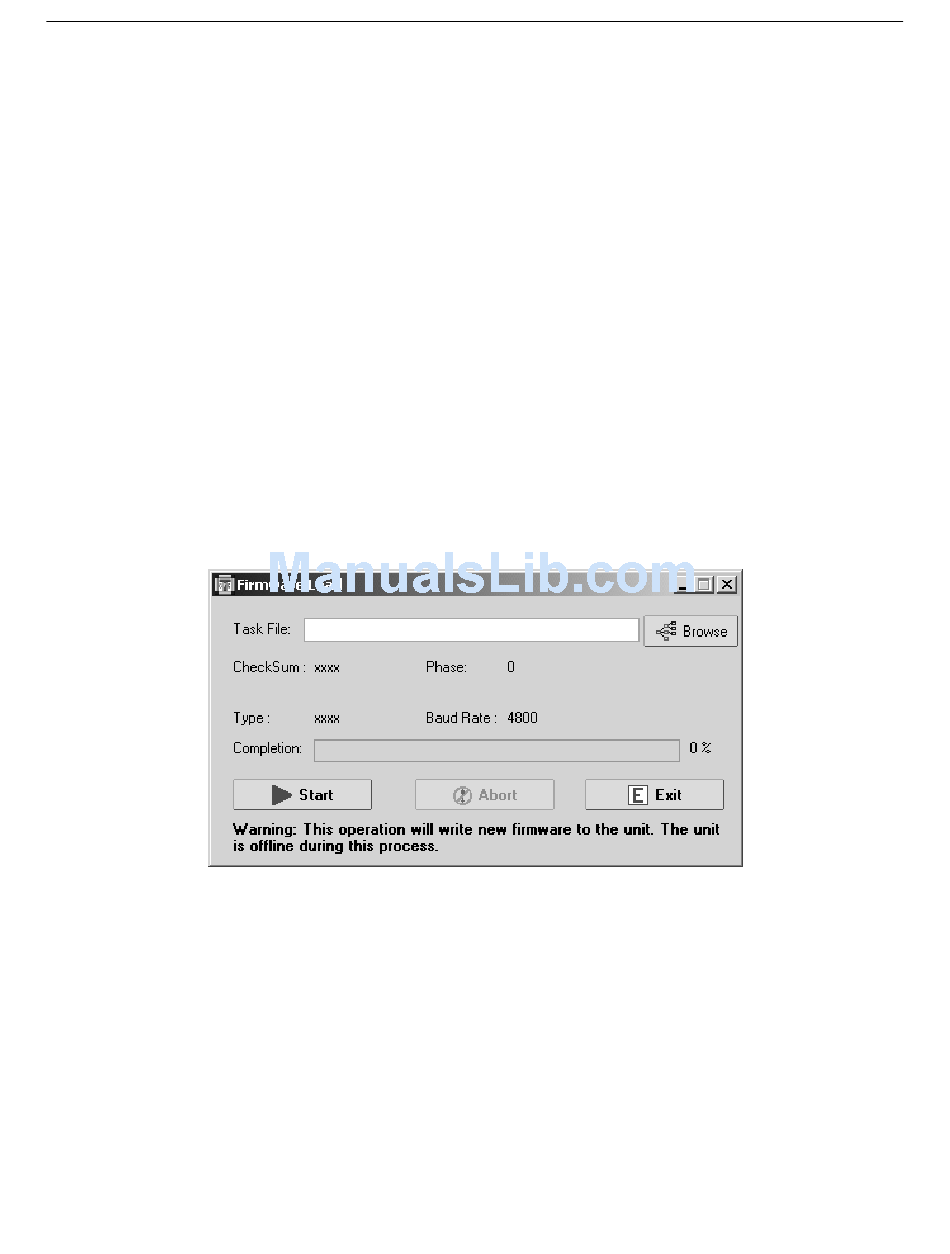

Fig. 8.1 The Firmware Load screen
