5.2.1 Connecting via Craft Port

To read from the NetGuardian via the craft port, follow these steps:
1. Click the Exit button
2. Select the Settings Menu
3. Select COM Port — see Figure 5.2.
4. In Communication Mode select Craft Port — see Figure 5.3.
5. Enter your Comport Number

5.2.2 Connecting via TCP/IP

If you are reading from the NetGuardian via TCP/IP follow these steps:
To read from the NetGuardian via the TCP/IP, follow these steps:
1. Click the Exit button
2. Select the Settings Menu — see Figure 5.4.
3. Select COM Port.

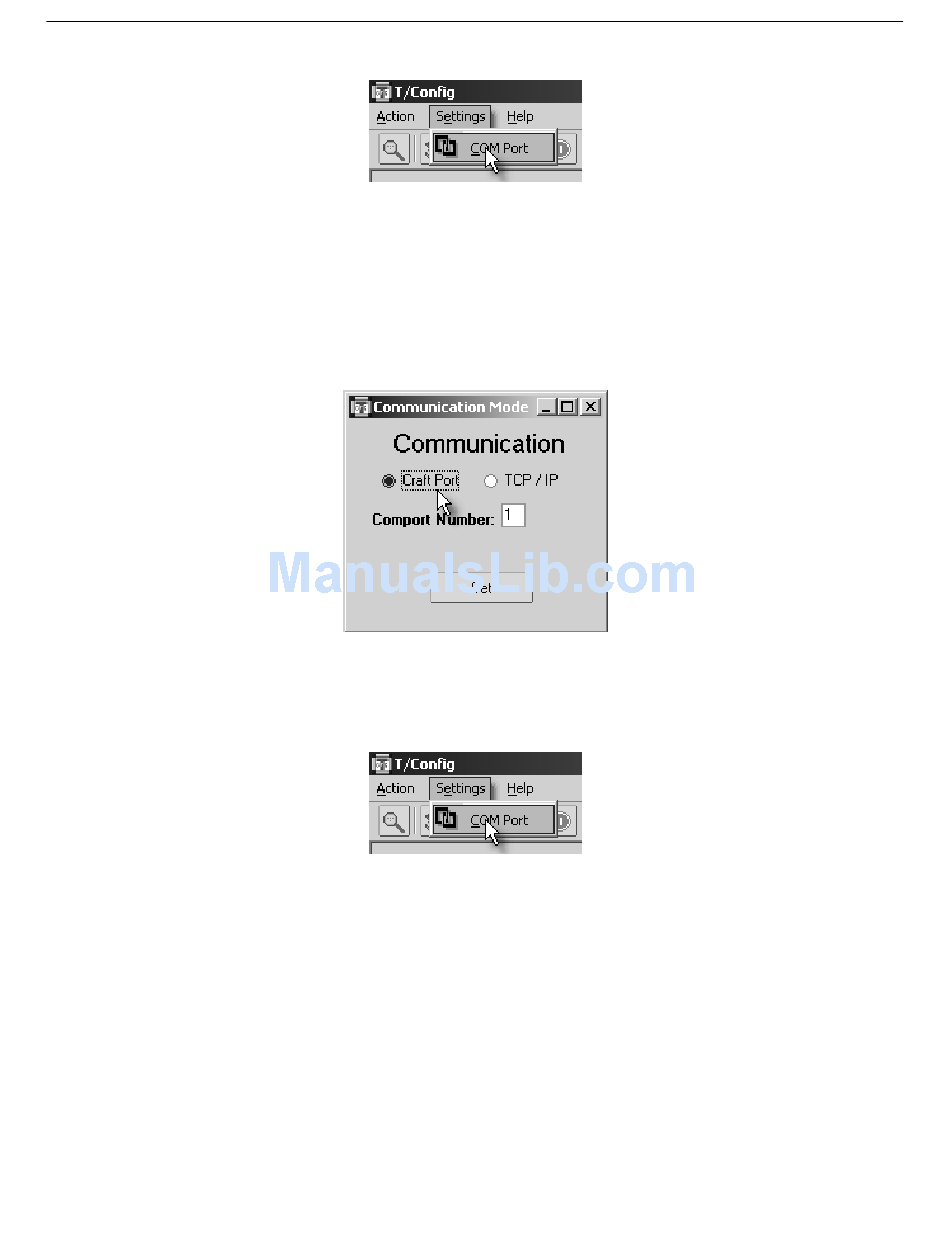

Fig. 5.2 Select a different port or TCP/IP connection
Fig. 5.3 Change your COM Port
Fig. 5.4 Select a different port or TCP/IP connection
