Note: If you select Off in either the DCP or Alarm Channel, T/NG216 will not show the fields in the

corresponding panels.

5.6.3 Configure Alarm Channel

To set SNMP configurations use the following instructions:

1. Choose the Channel tab.

2. Use the drop-down menus to set the Protocol, Port Type and Net Port for the SNMP Channel. Default settings

for each field appears in the tab — see Figure 5.15.

3. Refer to Table 5.A for descriptions of the Get, Set and Trap SNMP community settings. Set each field using

the descriptions.

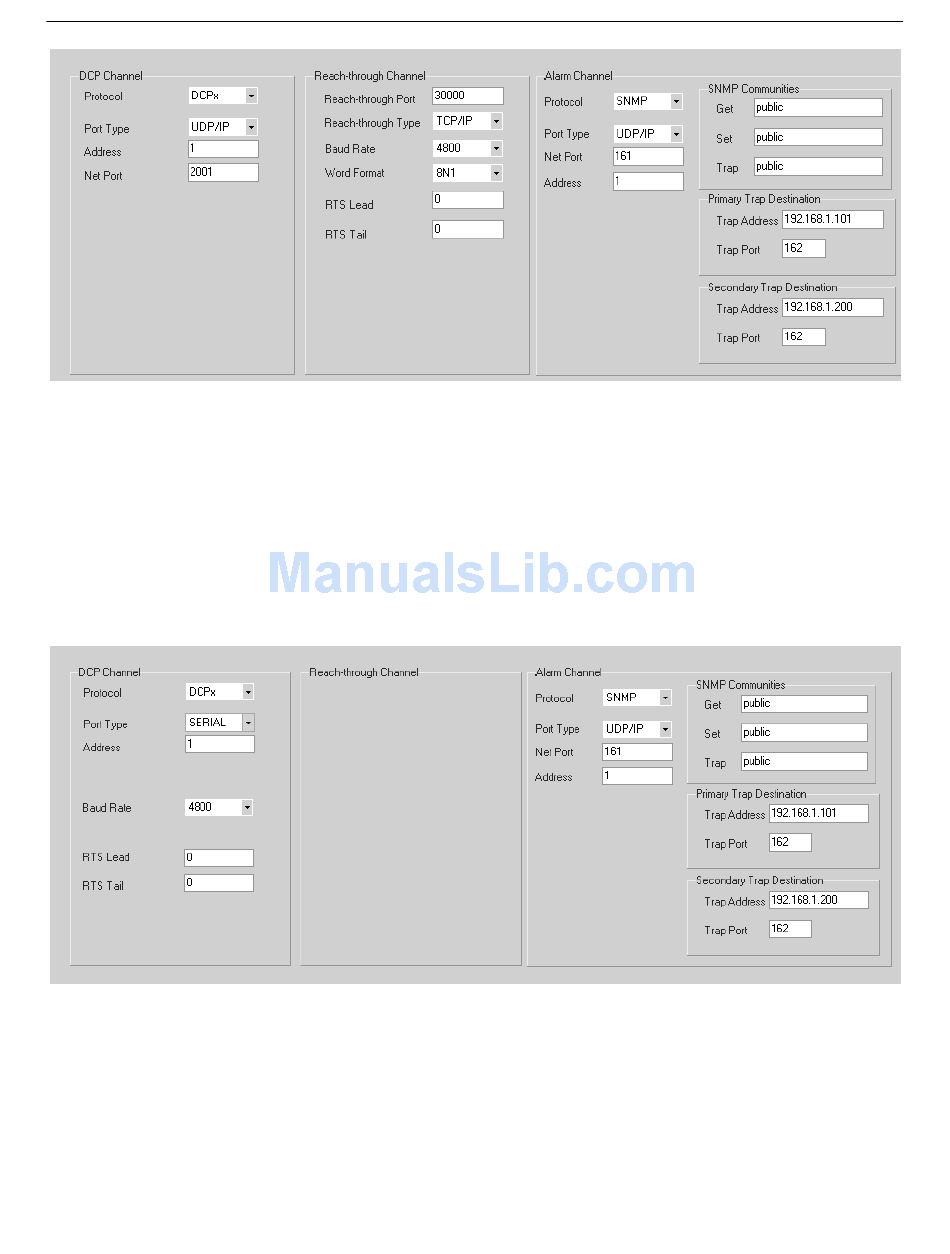

Fig. 5.14 Configure the Reach-through port in the Channel tab

Fig. 5.15 Configure your Alarm Channel in the Channel tab
