Audible Notification and Mode Button

The NetGuardian features audible notification with adjustable volume control on the front panel — see Figure
4.16. You must enable the speaker in Editor Mode, Device Tab — see section 5.5 (Editor Device Tab).
Note : The speaker is disabled when DCP channel is off.
The Mode button acknowledges alarm state changes — see Figure 4.17. Once you have enabled your speaker in
the Editor Mode, Device Tab, you will hear a beep whenever an alarm is triggered. You can press the front panel
Mode button to acknowledge the alarm and silence the audible notification.

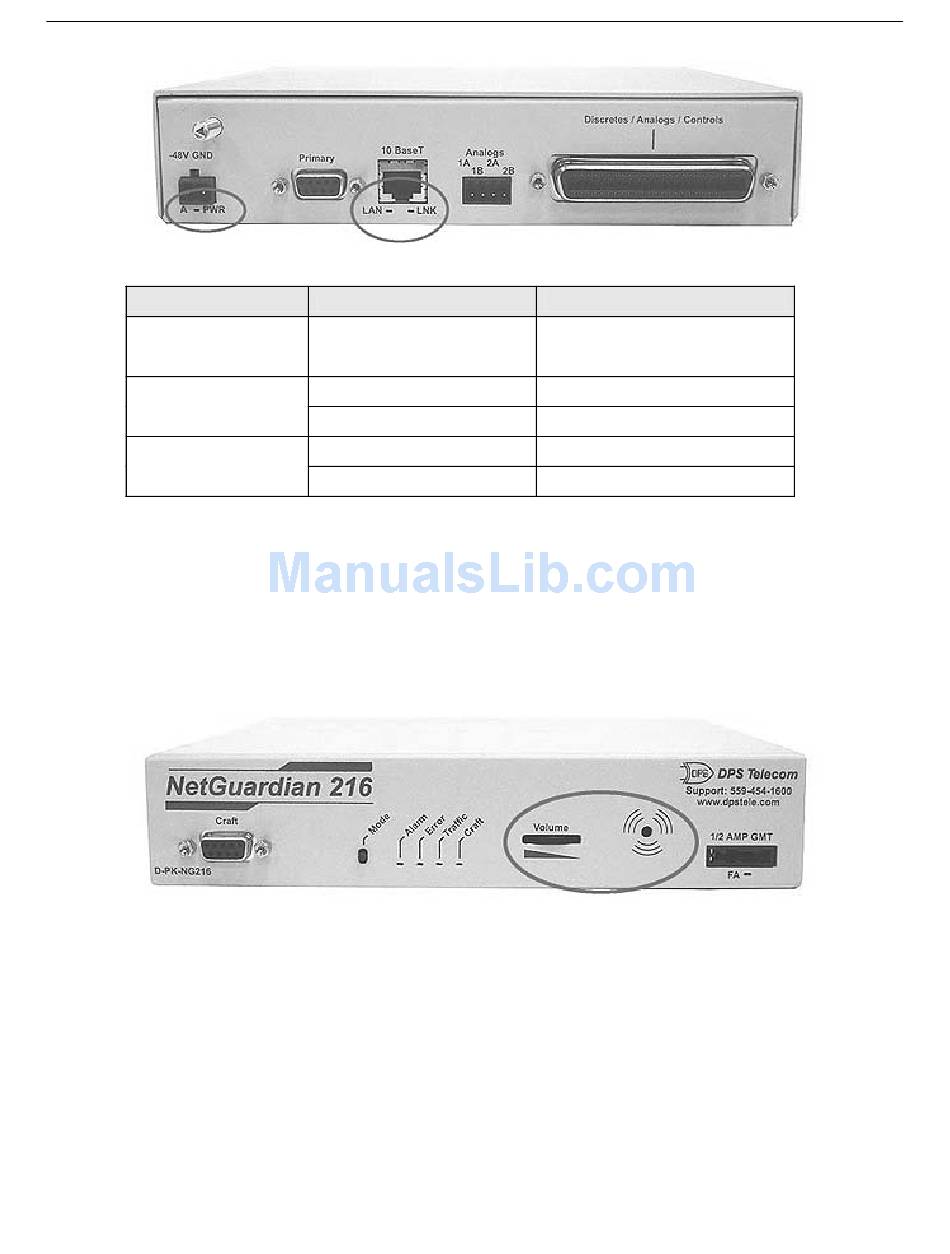

Fig. 4.15 Back panel LEDs
STATUS
Blink Green
Solid Green
Off
Solid Green
Solid Red
Table 4.D LED status messages
Fig. 4.16 Speaker and Volume Control
DESCRIPTION
LAN data transmit
Ethernet link OK
Ethernet link failure
Power Polarity correct
Polarity is backwards
