Pillow speaker

A ¼" stereo-style pillow speaker (pendant control) jack is located on the TV's connector panel on the backside. This
TV is designed to work with either a digital pillow speaker that generates digital-style control codes or a single-button
analog (switch-style) pillow speaker. A rear panel mounted switch allows use of different brands of pillow speakers
and supports the major brands: Zenith, Philips, and RCA.
CAUTION: Confirm the pillow speaker type and set the side switch appropriately BEFORE connecting
the pillow speaker to the TV. Failure to follow this procedure could result in damage to the pillow
speaker and/or TV.

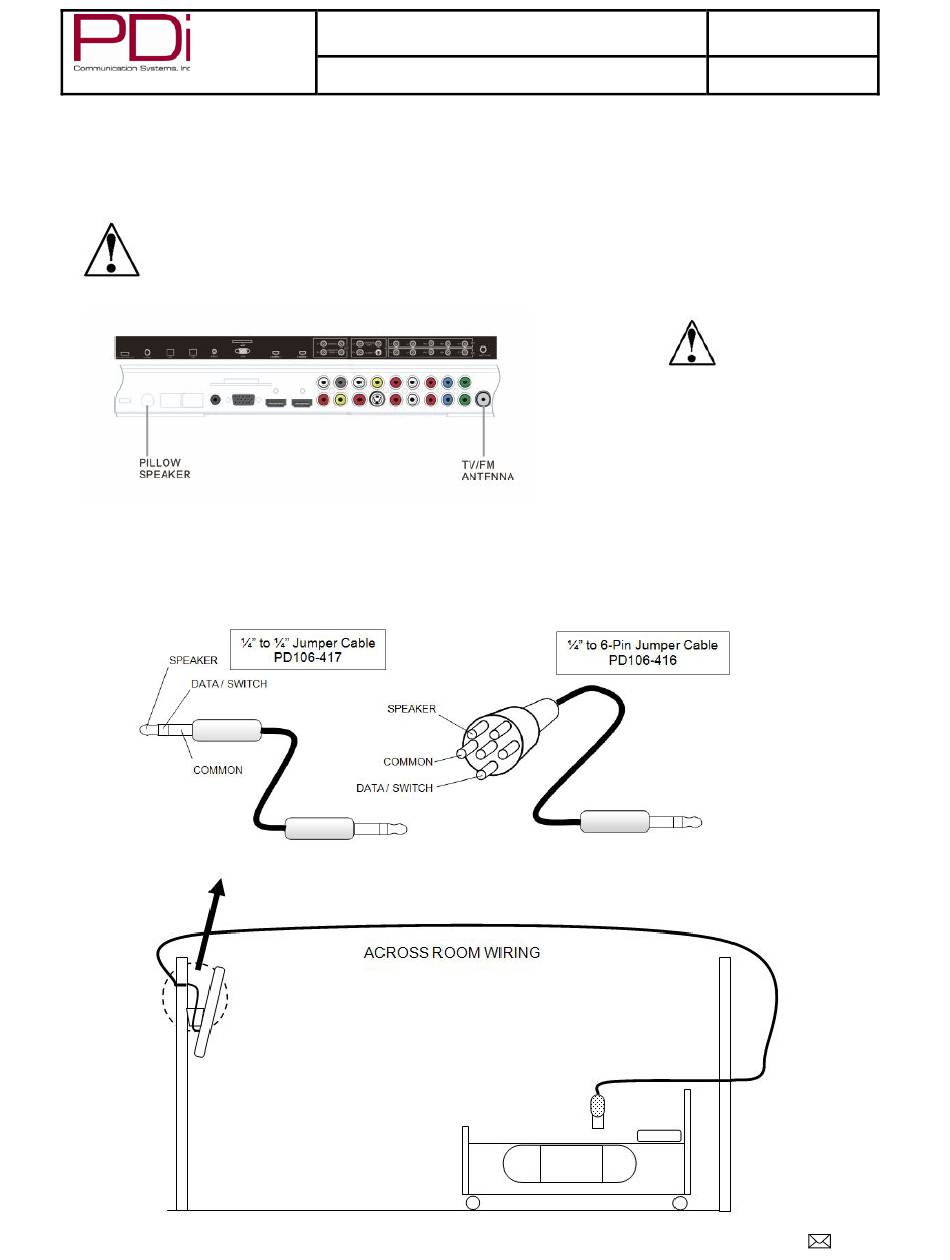

Across-Room Wiring

NOTE: A Jumper Cable is NOT supplied with the TV and must be ordered separately
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 800-628-9870 FX 937-743-5664
MODEL NUMBER:
CV2600, CV3200
Healthcare LCD TV
TM
Document Number:
PD196-241R2
Page 5 of 9
CAUTION: Some hospital
cable systems provide
power voltage on the
coaxial cable. This TV is
NOT designed to be
powered via a coaxial
cable. DO NOT connect to
a powered coaxial cable.
Damage will result to the
TV.
