Wall Mounting On Wall Bracket - PDi -P15LCDC-ARM User Manual

-WR Model, Wall Mounting on Wall Bracket
1. Refer to Figure 1. Select a location on the
wall approximately 7 inches below the
ceiling. Position the Wall Bracket and
locate two mounting holes. Secure the
bracket to the wall (mounting hardware is
not included).
NOTE: Do not locate AC, Across-Room
Wiring, and CATV Signal outlets below the
Wall Bracket's location as it will cause
clearance issues and interfere with the
TV's cabinet when mounted to the bracket.
2. Refer to Figure 2. Position the Back Mount
on the LCD TV cabinet. Attach with four
M4 screws provided.
3. Mate the Back Mount to the Wall Bracket
making sure the pivot pins are retained in
the "U" shaped slot. Using the pilfer
security driver packed with the hardware,
secure with two 10x32 pilfer screws.
4. Slide the Power Pack into the metal
holster. Connect the DC Power Plug into
the "DC 12V" connector on the back of the
TV. Connect the AC line cord.
5. Connect the Pillow Speaker Jumper Cable,
and CATV Coax Cable.
6. The TV's tilt can be adjusted by loosening
both Pilfer Screws, adjusting tilt, and then
tighten.
CROSS-ROOM
& CATV SIGNAL
WIRING
Wall Bracket
P15LCDC-WR
13¾" Vert x 15½" Horiz

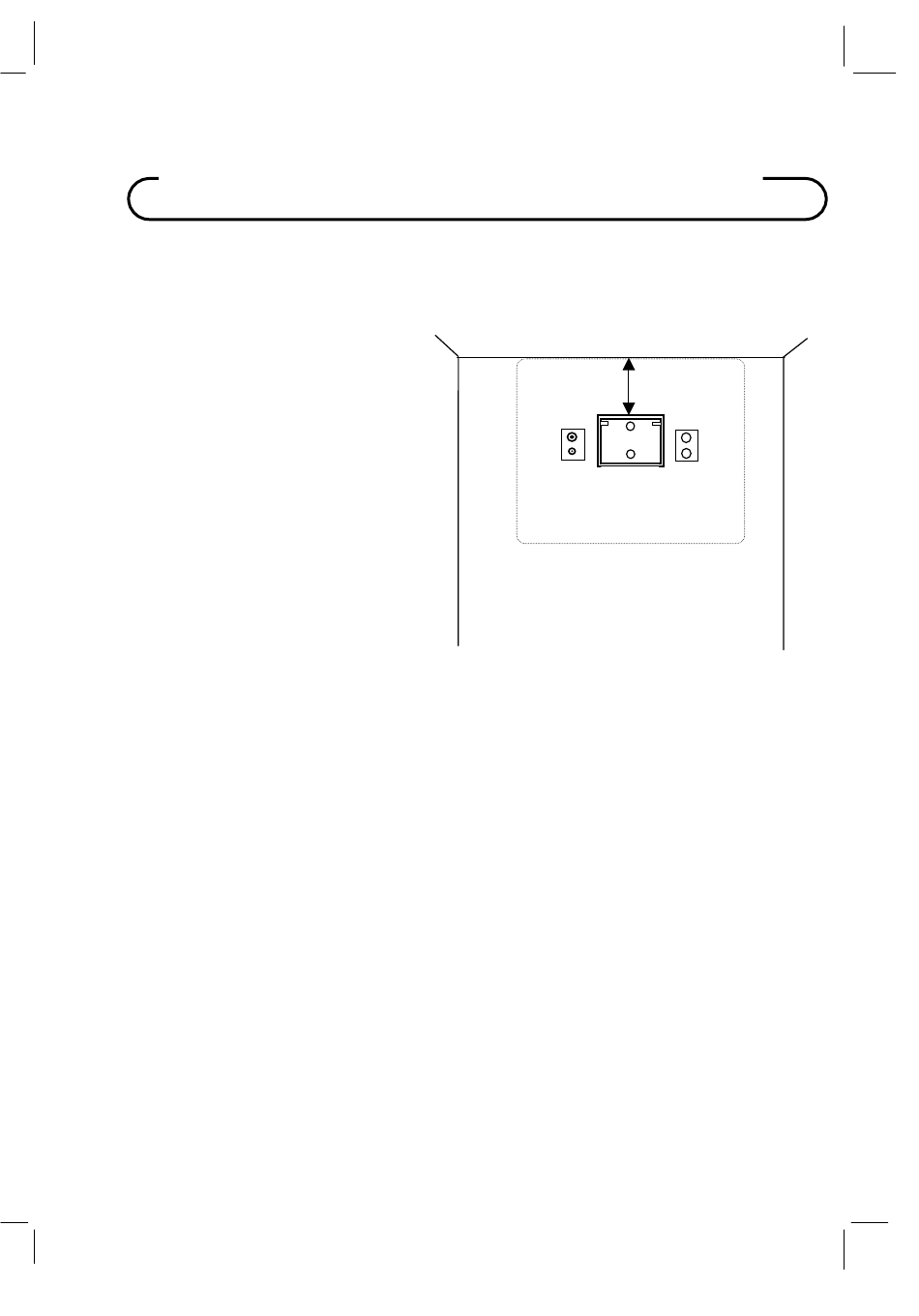

Figure 1
14
7"
AC
NOT TO SCALE
