SPRT SP-POS8VI User Manual page 11

7
20
Fig. 2-3 The pin assignment of serial interface
Note: (1)"Source" denotes the source that signal come from;
(2)Logical signal level is EIA.
The baud rate and data structure in serial interface mode is 9600bps, 8-bit
data bits, no parity bit and 1 stop bit.
The serial interface of SP-POS88VI can be connected to standard RS-232C
interface. When it is connected to IBM PC or its compatible machine,
connection can accord to Fig.2-4.
PDF created with pdfFactory trial version
GND ——
DTR Output
IBM PC
Printer
25PIN

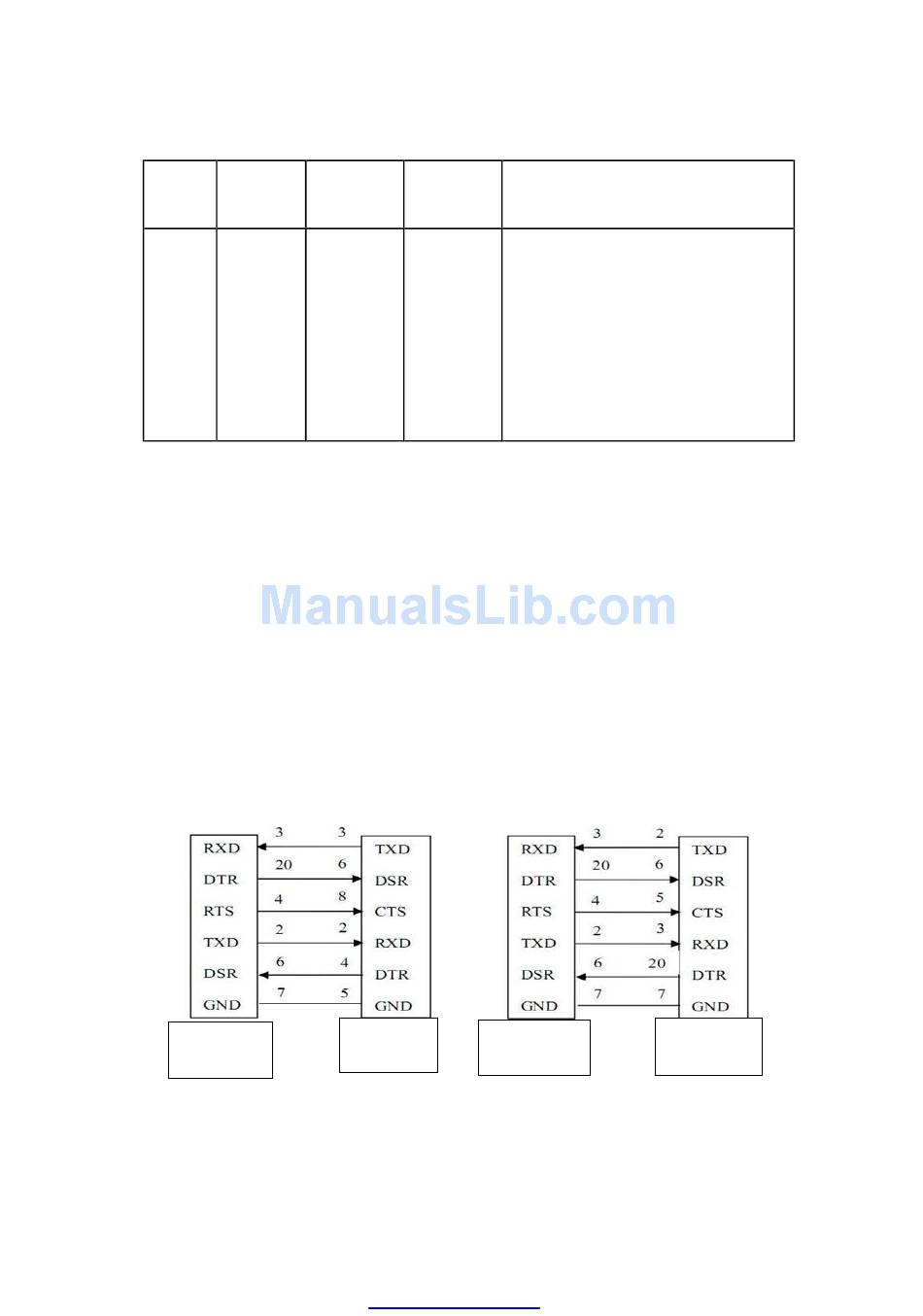

Fig.2-4 Connection between SP-POS88VI and IBM PC Serial Interface Sketch Map
www.pdffactory.com
—— Signal Ground
Printer Signal "MARK" means the host
is busy and can not receive
data.Signal "SPACE" means the
host is ready to receive data.
Printer
DB9
25PIN
IBM PC
DB25
