- Page 1 SPRT ® Thermal Receipt Printer User’s Manual SP-POS801 （Ver 1.00） Beijing Spirit Technology Development Co.,Ltd.
-
Page 2: Table Of Contents
Content Content..........................1 Introduction........................2 Chapter 1 Feature and Performance................2 1.1 Print Performance....................2 1.2 Print Paper......................2 1.3 Print Font......................3 1.4 Interface.........................3 1.5 Print Control Commands..................3 1.6 Power Supply......................3 1.7 Operation Environment..................12 1.8 Outline Dimension....................12 Chapter 2 Operation Specification.................13 2.1 Printer Appearance.....................13 2.2 Installation of the printer...................15 2.3 Paper Installation....................16... -
Page 3: Introduction
Introduction POS801 printer is a new type line thermal printer, which features is fast speed printing, low printing noise, high reliability, perfect printing quality, avoiding the vexation of regular maintenance. POS801 is with small dimension, easy operating, and wide application field. -
Page 4: Interface
1.3 Printing Font ● ANK Character Set 12×24 dots，1.5（W）×3.00（H）mm ● GB18030(Chinese): 24×24 dots，3.00（W）×3.00（H）mm. 1.4 Interface ● RS-232C Serial Interface： IDC10 socket, supports XON/XOFF and DTR/DSR protocols. Baud rate:1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable. Data structure: 1start bit + (7 or 8) data bits + 1 stop bit. Parity checking: no parity or odd, even parity optional. -
Page 5: Operation Environment
1.7 Operation Environment ● Operation temperature: -10～50℃; Operation humidity: 10～80％ ● Storage temperature: -20～60℃; Storage humidity: 10～90℃ 1.8 Outline Dimension Pls check outline dimension in the below picture 1-1:... -
Page 6: Chapter 2 Operation Specification

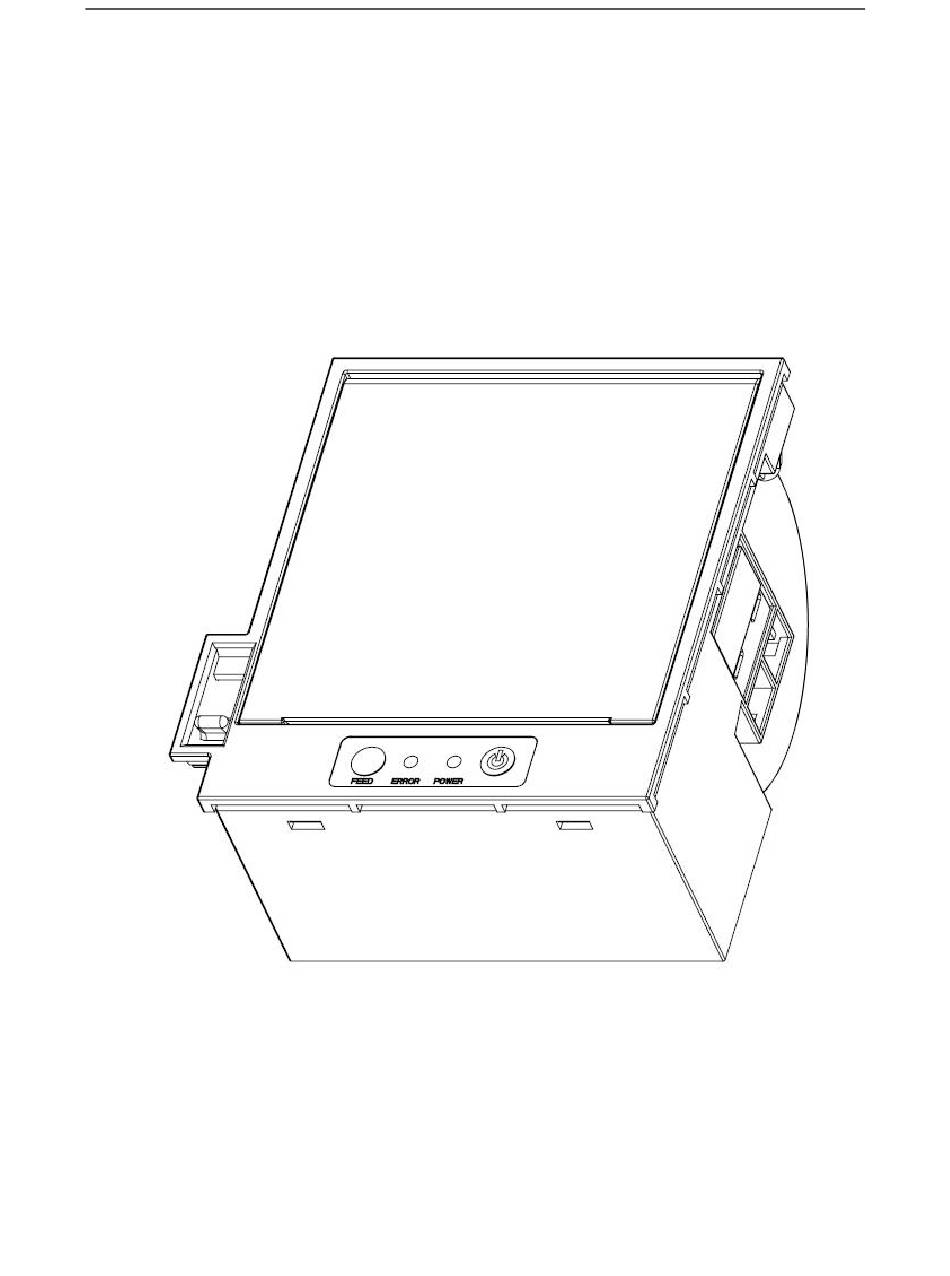

Fig.1-1 Installing hole dimension of customer’s panel, as picture1-2: Fig.1-2 Chapter 2 Operation Specification 2.1 Printer Appearance About the name of each part of printer, pls refer to picture 2-1:... - Page 7 Paper cover Paper exit Door handle Feed button Power button Indicater （Red） Power indicater(Green) Serial interface Power socket USB Interface...
-
Page 8: Installation Of The Printer
Paper ending sensor socket Fig.2-1 Printer Appearance 2.2 Installation of the printer Embedded printer in the installing hole of customer’s panel. open the printer paper cover, clockwise to tighten the two screws to complete the installation of the printer . Print installation shown in Figure 2-2. Clockwise rotation FIG 2-2... -
Page 9: Paper Installation
2.3 Paper Installation 2.3.1 Paper Loading POS801 adopts 79.5mm±0.5mm width thermal paper roll. Steps of Loading Thermal Paper are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 10: Interface
2.4 Interface 2.4.1 Serial Interface The serial interface of SP-POS801 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses IDC10 socket. The pin order of the serial port is as Fig.2-3 shows: Fig.2-3 Pin Order of Serial Port... - Page 11 The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-POS801 can be connected to standard RS-232C interface. When it is connected to IBM PC or its compatible machine, connection can accord to Fig.2-4.
-
Page 12: Usb Interface
Figure 2-5: Figure 2-5； Mini-USB socket and pin definitions 2.4.3 Power Connection SP-POS801 printer uses the external power supply adopter as 24V±10％、2A, power socket is 2114S-02 model, as Fig. 2-6 shows: Fig.2-6 Power Socket 2.5 Buttons and Indicators... - Page 13 second, the buzzer will sound, then release【POWER】 button. Printer gets into the normal working status. When the printer is on, press【POWER】button for one second, the buzzer will sound, then release 【POWER】button. Printer is powered off. 【FEED】is paper feed button. The function of this button is on/off can be set by print command.
-
Page 14: Turn On The Printer
addression ) LED flashes five times : UIB error LED flashes eight times : temperature detection circuit is wrong Recoverable error: the indicator continuously flashes and persisment off for a period. Error type Description Type of flash LED flashes once .the place Recoverable of cutter is wrong error... -
Page 15: Hexadecimal Printing
type, at last four lines black and white alternating icon. Way of self-test: hold down 【FEED】 button and press 【 POWER】 button to turn on the printer, after buzzer sounds, release 【POWER】button firstly, then release【FEED】 button. At this time, printer will print out self-test receipt. The content is as below picture 2-7: Fig. -
Page 16: Setup Of Printer Parameter
feed one line with single press of “FEED” button, after 3 times, it will print out “*** Completed ***”, and exit hexadecimal printing mode. 2.9 Setup of printer parameter This function is for the setup of parameters. Steps for setting parameters: Power off , open【Printer Roller】and press the 【FEED】... - Page 17 Paper case paper case Cover cover Paper case Paper case Paper case Print lack of Blackmark Printing Speed Buzzer Cover Cover Cover paper Baudrate： FEED FEED FEED 9600 19200 38400 57600 MODE FEED FEED FEED 4800 2400 1200 115200 Language： FEED FEED Traditional Chinese...
- Page 18 FEED...
