- Page 1 SPRT® POS Thermal printer user manual （SP-POS88Ⅵ） （Ver 1.01） Beijing Spirit Technology Development Co., Ltd PDF created with pdfFactory trial version www.pdffactory.com...
-
Page 2: Table Of Contents
Contents Brief Introduction ..........................3 Chapter 1 Feature and Performance ..................... 3 1.1 Print Performance ........................3 1.2 Print Paper ........................... 4 1.3 Print Font ..........................4 1.4 Interface ..........................4 1.5 Print Control Commands ......................5 1.6 Power Supply .......................... 6 1.7 Operation Environment...................... -
Page 3: Brief Introduction
Brief Introduction printer is a new type line thermal printer, which features in fast speed POS88Ⅵ print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. printer: small in outline dimension, simple operation, and POS88Ⅵ... -
Page 4: Print Paper
Valid print width: 72mm ● Print Paper Thermal paper roll model ：TF50KS－E（Japan paper co.ltd） ● AF50KS-E(JUJO THERMAL) Thermal paper roll: Width－－－ 79.5±0.5mm ● Outer Diameter －－－ 80mm（max.） Inner Diameter－－－ 13mm（min.） Thickness －－－ 0.06mm～0.08mm 1.3 Print Font ANK Character Set ● 12×24 dots，1.5（W）×3.00（H）mm GB2312-80(Chinese) ●... -
Page 5: Print Control Commands
Parallel Interface ● ： 36-pin，8-bit parallel interface，BUSY/ACK handshaking protocol, TTL signal level. Ethernet Interface ● ： Standard Ethernet interface. USB Interface： ● ： Standard USB interface Cash Drawer Control ● ： DC24V，1A，6-pin RJ-11 socket. Print Control Commands Character print commands: support double-width, double height print of ●... -
Page 6: Power Supply
Power Supply DC24V±10％，2A，A-1009-3P power socket. ● Operation Environment Operation temperature: 5～50 ; Relative humidity: 10 ℃ ～80％ ● ● Storage temperature: -40～55 ; Relative humidity: 10 ℃ ～90℃ Outline Dimension ● （L）mm×150（W）mm×135（H）mm Model classification Model Interface SP-POS88 SF Ⅵ RS－232C Serial Interface SP-POS88 S Ⅵ... -
Page 7: Chapter 2 Operation Instruction

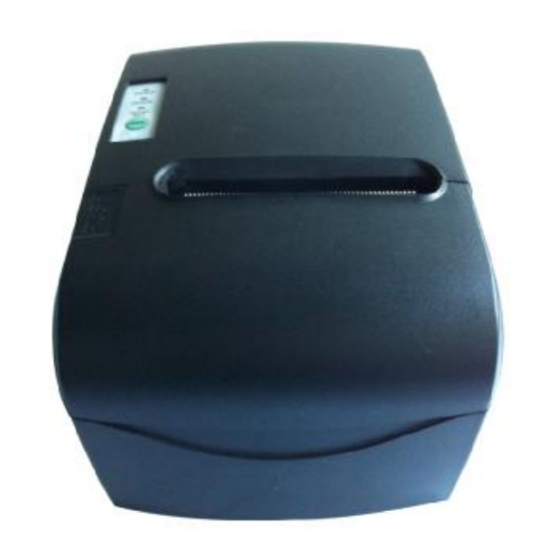

Chapter 2 Operation instruction Printer Appearance Paper Cover Power Indicator（green Status Indicator (red) Paper-end Indicator (red) Paper Feed Decap button Paper-out slot Cutter cover PDF created with pdfFactory trial version www.pdffactory.com... -
Page 8: Paper Installation
Power Switch Cash driver interface Interface socket Power socket Paper Installation 2.2.1 Paper Loading adopts 79.5mm width thermal paper roll. POS88 Ⅵ Steps of Loading Thermal Paper Are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 9: Solution To Paper Jam
3.Keep clean of the print head, avoid to influence the printing quality. 2.2.2 Solution to Paper Jam If cutter jam, turn off the power, and turn on again, the cutter will be back to original position. If paper jam, open the paper storage cover, and take out the paper. - Page 10 Fig.2-2 Pin Order of Serial Port The pin assignment of serial interface is shown in Fig. 2-3: Signal Signal Sourc Description Name Direction —— —— Cover ground Output Printer Printer transmits control code X-ON/X-OFF and data to host Input Host Printer receives data from host Output Printer...
- Page 11 —— —— Signal Ground Output Printer Signal “MARK” means the host is busy and can not receive data.Signal “SPACE” means the host is ready to receive data. Fig. 2-3 The pin assignment of serial interface Note: (1)“Source” denotes the source that signal come from; (2)Logical signal level is EIA.
-
Page 12: Parallel Interface
2.3.2 Parallel Interface The parallel interface of POS88VI printer is compatible with CENTRONICS, supports BUSY or ACK handshaking protocol, The pin assignment of 36PIN parallel interface is as Fig. 2-5 shows: Pin No. Signal Direction Description STROBE Strobe pulse to latch data, Reading occurs at falling edge. -
Page 13: Cash Drawer Interface
Logic-H Logic “1” level nFault Low level means the printer is at fault 14,15,17 18,34,36 No connection 16,19~30, 33 Grounding logical 0 level +5V power Fig.2-6 Signal Timing Chart of Parallel Interface ： 2.3.3 Cash Drawer Interface The cash drawer interface of POS-POS88VI adopts RJ-11 6-pin socket, as Fig.2-7 shows: PDF created with pdfFactory trial version www.pdffactory.com... -
Page 14: Power Connection
Fig.2-7 Cash Drawer Interface The pin assignment is as below ： Pin No. Signal Direction Chassis Ground —— Cash drawer driver signal 1 Cash drawer on/off status signal +24VDC —— Cash drawer driver signal 2 Signal ground —— 2.3.4 Power Connection uses the external power supply adopter as 24V±10％、2A, POS88 Ⅵ... -
Page 15: Indicator, Buzzer And Button
Pin No. Signal +24VDC Ground The pin assignment is as above： Indicator, buzzer and button There is one button, one buzzer and three indicators on POS88VI printer. 【FEED】is paper feed button. The function of this button is on/off can be set by print command. - Page 16 The red ERROR light is error status indicator. It is off when the printer works normally; while it flashes or persismently lights when the printer has abnormal alarm. If ERROR indicator flashes or persismently lights and the buzzer sounds, it means the printer has error.
-
Page 17: Turn On The Printer
LED flashes three times: the voltage is lack LED flashes four times : CPU Execution error (wrong address ) LED flashes five times : UIB error LED flashes eight times : temperature detection circuit is wrong Recoverable error: the indicator continuously flashes and persisment off for a period. -
Page 18: Self-Test
2.6 Self-test The self-test will check the condition of printer, if the printer prints out the self-test receipt correctly, it means the printer works normally except interface with host. Otherwise it needs to repair. The self-test will print out: Manufacturer name, printer model, software version, interface type, default value of printer parameters, 96 ANK characters in ASCII code, content of default codepage (if language is set English) or name of Chinese character library (if the language is set Chinese), barcode... - Page 19 To terminate hexadecimal dump, Press FEED button three times. This means the printer has entered hexadecimal printing mode, and under this mode, all of the input will be printed out as hexadecimal number, feed one line with single-click of “FEED” button, after 3 times, it will print out “*** Completed ***”,and exit hexadecimal printing mode.
-
Page 20: Appendix A: Parameter Setting
Appendix A: Parameter setting This appendix is the method to set default parameters of printer by buttons. Setup instruction: use the button of【paper case cover】 to choose the setting items, change the item by press the button【paper case cover】, and print out the current value. - Page 21 Print speed： FEED FEED FEED 250mm/s 200mm/s 220mm/s 150mm/s FEED Buzzer ： FEED FEED FEED Error ON ALL ON Cut ON FEED Re-printing lack of paper： FEED FEED ： Black label mode FEED FEED PDF created with pdfFactory trial version www.pdffactory.com...
