NOTICE Please read this manual carefully before using the printer! Notice of Safety ◆ Do not touch the tear bar of the printer ◆ Do not touch the print head and its connecting parts to avoid burns or damage to the print head due to static electricity.
50℃, too high(45℃)or too low(5℃) environment temperature will affect printing quality. ◆Too high (above 85% relative humidity) environment humidity or too low (below 20% relative humidity) environment humidity will effect the printing quality. ◆ The printer paper roll with poor quality or stored for too long time also may reduce the printing quality, sometimes even damages the printer.
1.4 Interface ● RS-232C serial interface (optional): DB9 socket (hole type), supports XON/XOFF and DTR/DSR protocols. Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable. Data structure: 1 start bit + (7 or 8) data bit + 1 stop bit. Parity: no parity or odd and even parity optional.

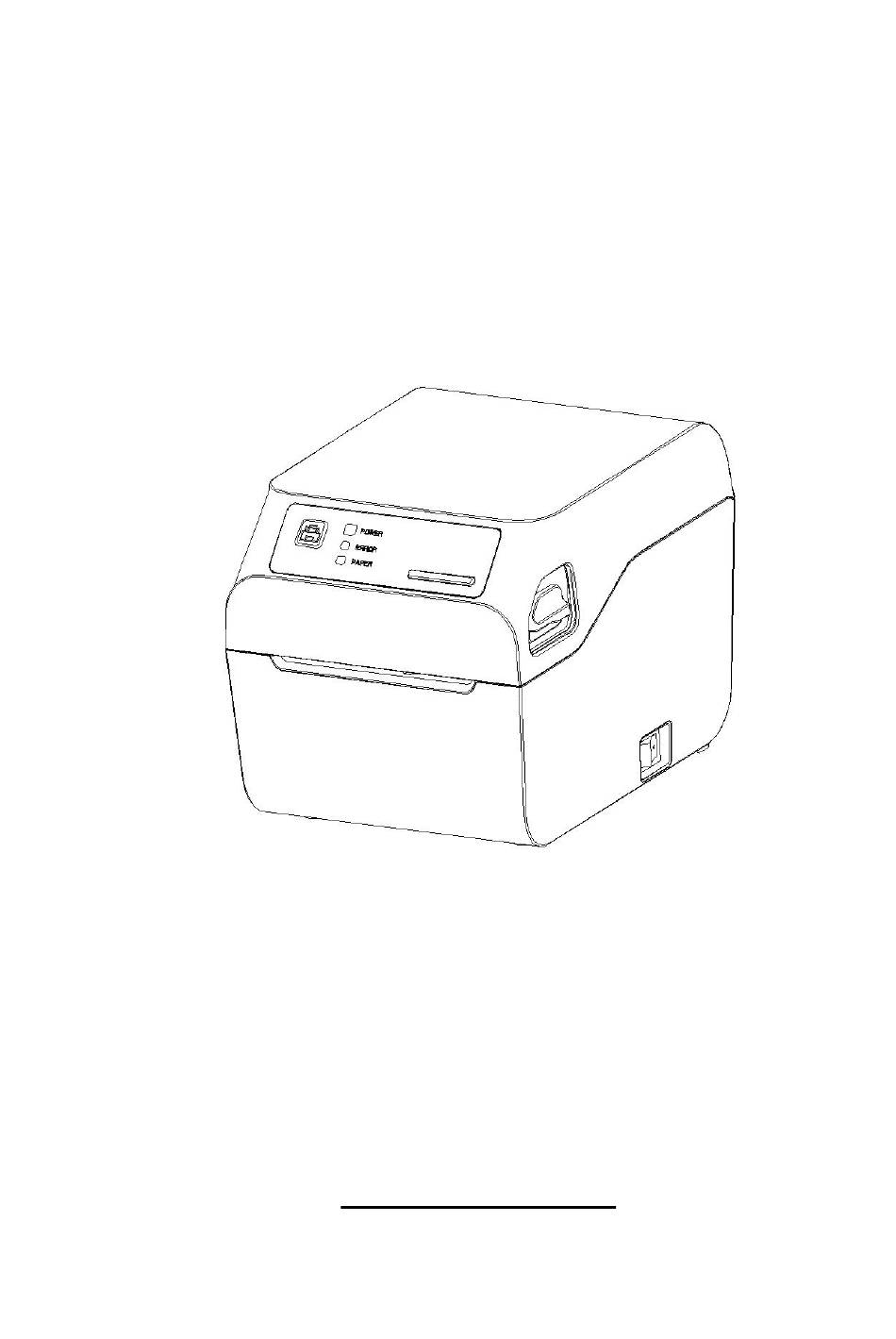

Chapter 2 Operation Specification 2.1 Printer Appearance The names of the various parts of the printer are shown in Figure 2-1 Figure 2-1 The name of each part of the printer...
2.2 Paper Installation 2.2.1 Paper Loading SP-POS8810 printer uses 79.5±0.5mm wide thermal paper roll. The thermal paper installation steps are as follows: Raise the door opener to open the cover, insert the paper shaft through the paper roll core (when there is a paper shaft), pull out part of the paper and put the paper roll into the paper shaft card slot inside the paper bin, and place the protruding paper on On the movement, align the paper parallel to the paper exit direction of the movement, and close the upper shell tightly with a little...
definition of each pin is shown in Figure 2-2. Signal Source Explanation number name Printer The printer sends the control code X-ON/X-OFF and data to the host Figure 2-2 Host The printer receives data from compu the host Printer Same as CTS Printer When the signal is in the "MARK"...
[Front Cover], and the printer's network port can be configured to DHCP mode. The method of obtaining the network port parameters in this mode is as follows: turn on the [Face], press the [FEED] key once, and close the [Face], the printer will immediately print out the current network parameters (IP and other parameters) of the network port.
CLASS 1.5 (SP-POS8810UEBTDMVT model), and the effective distance is 10m. The Bluetooth of the printer belongs to the slave device. The initial device name is POS8810 Printer, and the initial password is "1234". The user can use the <SP-POS8810 Setting Tool Software> to modify the device name and password as needed.
press the [FEED] key seven times, close the cover, the printer enters the intelligent network configuration mode, and the network configuration QR code will be printed out. At this time, the network configuration operation can be performed, and the [PAPER] blue light will flash for one second Flashes at intervals.
Cash drawer on/off status signal +24VDC —— Cash drawer driver signal 2 Signal ground —— 2.3.7 Power Connection SP-POS8810 uses the external power supply adopter as 24V±10%, 2A, and it uses DC005-2.5 power socket, positive inside and negative outside. Please use the standard power adapter for power supply.
Page 15
presenting driver starts up and paper fed into the printer; release【FEED】 button, paper feeding stops. The buzzer indicates the error status type, which can be set to enabling error alarm or disabling by parameter setting. Error status type is the same as error indicator. The incoming order detection prompt is an orange indicator.
Page 16
3. Automatic recovery of errors, the indicator light flashes continuously, and the buzzer sounds continuously. 4. When there is no paper, the paper short light will be on and the buzzer will beep for a long time. When the printer paper compartment cover is opened, it will no longer detect whether the printer is out of paper, but only detect whether there is paper.
and upper case cover opening error during printing. ERROR Indicator Flickering ERROR Type ERROR Description Type LED Flickers constantly: printing head Auto-recoverabl over-heat; upper case cover opening e error error during printing 2.5 Power on status Paper cover close when power off. Press the power button, the error indicator and paper out indicator flash twice alternately and out, then printer will be on the normal working mode.
2.7 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing 1.Open the cover; 2.Hold down【FEED】button,and connect with power; 3.Close the cover, the printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times.
(www.sprt-printer.com). Specific link: Homepage-Service-Download-Driver-Windows Driver; after downloading, the driver is named SP-DRV211. In the process of installing the driver, the printer model is selected as "80mm thermal series". For other operations, please refer to the installation instructions.
Page 21
Appendix A This appendix is a method of setting the default parameters of the printer by pressing the keys. Setting description: Use the opening and closing 【face】 (trigger button) to select the setting item, every time you open and close the 【face】, the setting item will be changed to the next item, and the current setting value of the item will be printed out.
Page 22
FEED Buzzing: FEED FEED FEED Error ON ALL ON Cut ON FEED Paper-out and reprint: FEED FEED Black mark mode: FEED FEED Appendix B: Pre-printed black mark description If the user uses the pre-printed black mark for bill positioning, the following black mark pre-printing specifications must be followed when printing the black mark, otherwise the printer may not be able to recognize the black mark.
Page 23
Hps: Hps is the distance between the upper edge of the black mark of the printer and the upper edge of the printing start. 4.5m≤Hps≤6.5mm (≈5.3mm) The manufacturer has the right to modify the content of the manual without making a prior statement! The final interpretation right belongs to SPRT!
