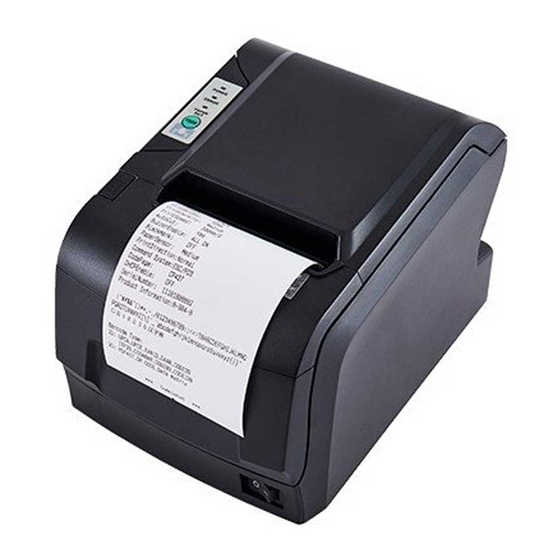

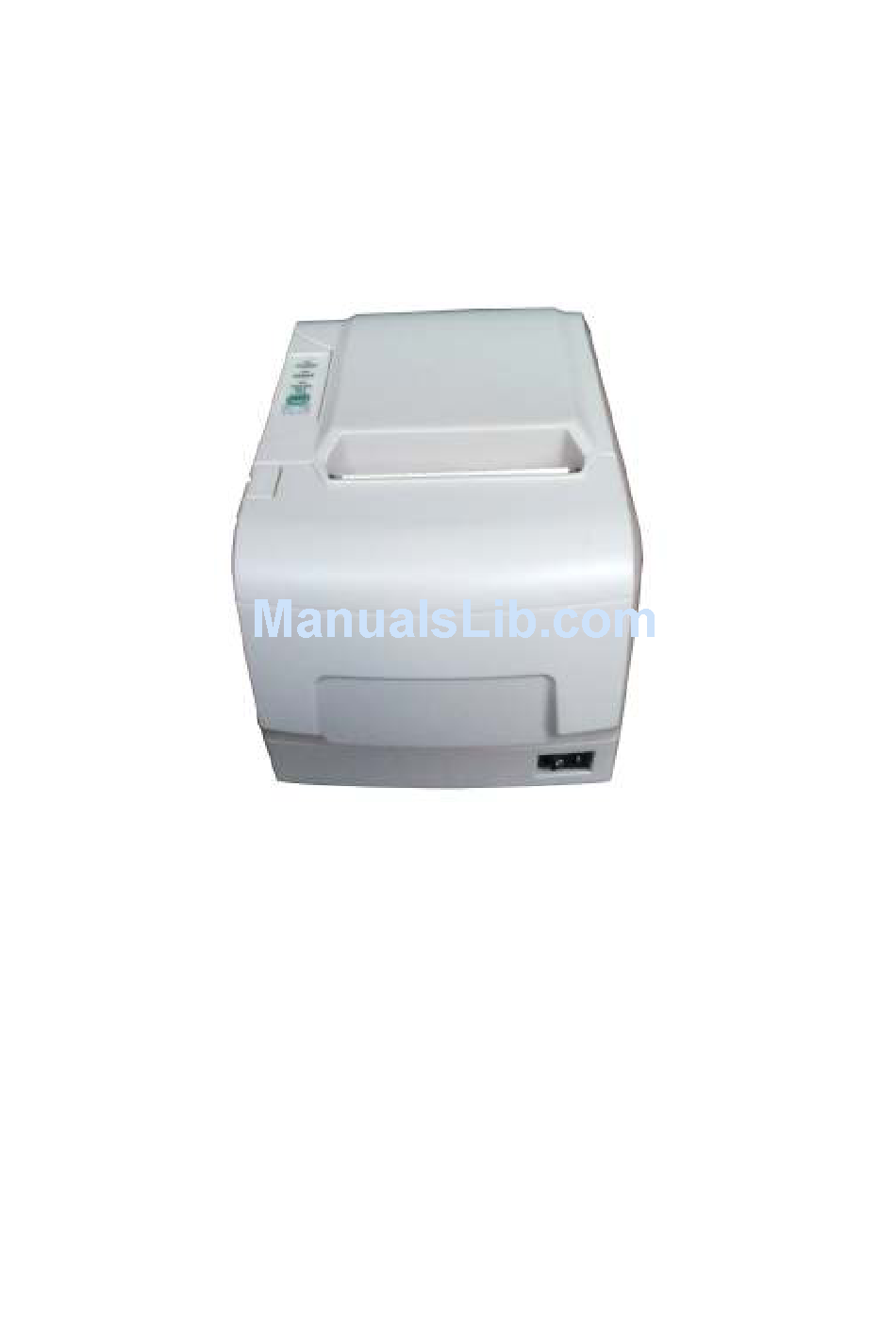

- Page 1 ® SPRT SP-POS88Ⅴ Ⅴ Ⅴ Ⅴ Thermal Receipt Printer User’s Manual （Ver 1.00） Beijing Spirit Technology Development Co.,Ltd.
-
Page 2: Table Of Contents
Content Introduction ..................2 Chapter 1 Feature and Performance........... 2 1.1 Print Performance ..............2 1.2 Print Paper................. 2 1.3 Print Font .................. 3 1.4 Interface ..................3 1.5 Print Control Commands............3 1.6 Power Supply ................4 1.7 Operation Environment ............. 4 1.8 Outline Dimension .............. -
Page 3: Introduction
Introduction POS88Ⅴprinter is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. POS88Ⅴprinter: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print. -
Page 4: Print Paper
1.2 Print Paper ● Thermal paper roll model: TF50KS－E（Japan paper co.ltd） AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Width－－－ 79.5±0.5mm Outer Diameter －－－ 80mm（max.） Inner Diameter－－－ 13mm（min.） －－－ 0.06mm～0.08mm Thickness 1.3 Print Font ● ANK Character Set 12×24 dots，1.5（W）×3.00（H）mm ● GB GB2312-80(Chinese): 24×24 dots，3.00（W）×3.00（H）mm. -
Page 5: Print Control Commands
● Cash Drawer Control DC24V，1A，6-pin RJ-11 socket. 1.5 Print Control Commands ● Character print commands: support double-width, double height print of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. ● Graphics print commands: support the print of bit-map graphics and download bit-map graphics with different density ●... -
Page 6: Chapter 2 Operation Specification
SP-POS88ⅤS RS－232C Serial Interface Parallel Interface SP-POS88ⅤP Ethernet Interface SP-POS88ⅤE USB Interface SP-POS88ⅤU Chapter 2 Operation Specification 2.1 Printer Appearance Paper Cover Power Indicator（green） Status Indicator(red） Paper-end Indicator（red） Paper Feed Button（FEED） Decap Button Paper-out Slot Cutter Cover Power Switch... -
Page 7: Paper Installation
Cash drawer interface Interface Socket Power Socket Fig.2-1 Printer Appearance 2.2 Paper Installation 2.2.1 Paper Loading POS88Ⅴ adopts 79.5mm width thermal paper roll. Steps of Loading Thermal Paper Are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly. -
Page 8: Interface
2.3 Interface 2.3.1 Serial Interface The serial interface of SP-POS88Ⅴ printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses DB25 socket (female). The pin order of the serial port is as Fig.2-2 shows: Fig.2-2 Pin Order of Serial Port... -
Page 9: Parallel Interface
The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-POS88 Ⅴ can be connected to standard RS-232CRS-232C interface. When it is connected to IBM PC or its compatible machine, connection can accord to Fig.2-4. - Page 10 Pin No. Signal Direction Description STROBE In Strobe pulse to latch data, Reading occurs at falling edge. These signals represent the 1st bit to 8th bit of the parallel data representatively, each signal is at HIGH level when data is logic 1, and LOW when data is logic 0.
-
Page 11: Cash Drawer Interface
14,15,17 18,34,36 No connection 16,19~30, Grounding logical 0 level +5V power Fig.2-5 36Pin assignment of parallel interface Note: (1)“In” denotes input to the printer，“Out” denotes output from the printer. (2)Signal level is TTL standard. The timing chart for interface signal of parallel interface is as Fig.2-6shows: Fig.2-6 Signal Timing Chart of Parallel Interface 2.3.3 Cash Drawer Interface The cash drawer interface of POS-POS88Ⅴ... - Page 12 Signal Direction —— Chassis Ground Cash drawer driver signal 1 Cash drawer on/off status signal —— +24VDC Cash drawer driver signal 2 —— Signal ground...
-
Page 13: Power Connection
2.3.4 Power Connection POS88Ⅴuses the external power supply adopter as 24V±10％、2A, power socket is A-1009-3P model,as Fig. 2-10 shows: Fig.2-8 Power Socket The pin assignment is as below： Pin No. Signal +24VDC Ground 2.4 Buttons and Indicators There is one button and three indicators on POS88Ⅴ printer. 【FEED】... -
Page 14: Self-Test
jam. When any error shown above occurs,pin “nFault” of parallel change to “0” level,and send 1 bit wrong code through serial TXD by itself,it can also send out the printer state by answer the ESC v command. Red indicator of “Paper Out ” is the paper out indicatoe.When there is no paper in printer head,it will light,and it is off under normal status.
