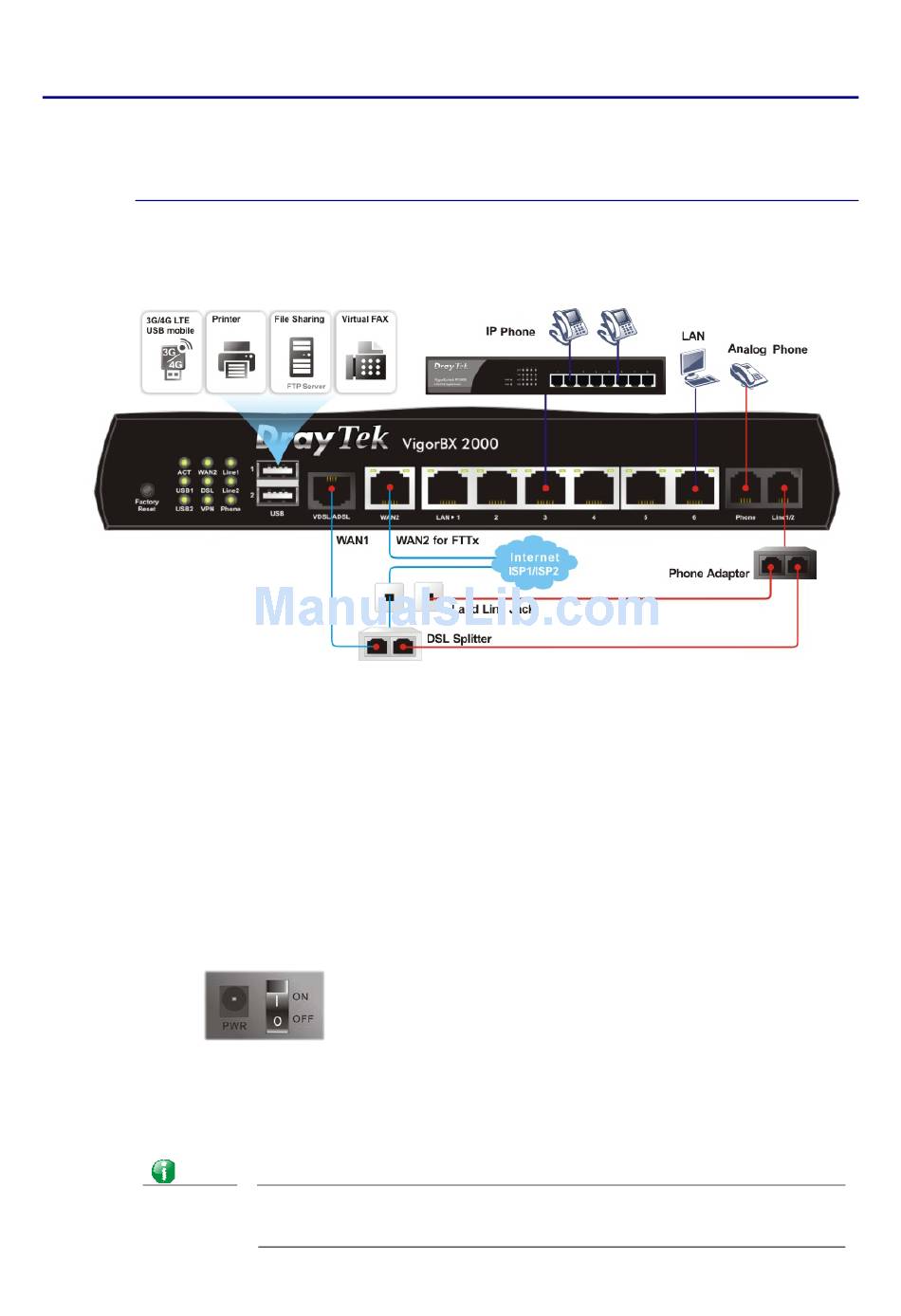

Before starting to configure the router, you have to connect your devices correctly.
1.
Connect the ADSL interface to the external ADSL splitter with an ADSL line cable. Then,
connect Line interface (or the Phone Adapter connecting to Line1/2) to the external
ADSL splitter.
For second WAN, connect the cable Modem/DSL Modem/Media Converter to WAN2 port
of router with Ethernet cable (RJ-45).
2.
Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and
the other end of the cable (RJ-45) into the Ethernet port on your computer.
3.
Connect the telephone sets with phone lines (for using VoIP function). For the model
without phone ports, skip this step.
4.
Connect one end of the power adapter to the router's power port on the rear panel, and
the other side into a wall outlet.
5.
Power on the device by pressing down the power switch on the rear panel.
6.
The system starts to initiate. After completing the system test, the ACT LED will light up
and start blinking.
(For the detailed information of LED status, please refer to section I-1-1 Indicators and
Connectors.)
Caution
VigorBX 2000 Series User's Guide
I
n
s
t
a
l
l
a
t
i
o
n
I
n
s
t
a
l
l
a
t
i
o
n
t
a
l
l
i
n
g
V
i
g
o
r
R
o
u
t
a
l
l
i
n
g
V
i
g
o
r
R
o
u
Each of the Phone ports can be connected to an analog phone only. Do not connect
the phone ports to the telephone wall jack. Such connection might damage your
router.
