Line Speed
VLAN Tag insertion
Active Mode
Active When
After finished the above settings, click OK to save the settings.
58
If your choose According to Line Speed as the Load
Balance Mode, please type the line speed for downloading
and uploading for such WAN interface. The unit is kbps.
Enable – Enable the function of VLAN with tag.
The router will add specific VLAN number to all packets on
the WAN while sending them out.
Please type the tag value and specify the priority for the
packets sending by WAN1.
Disable – Disable the function of VLAN with tag.
Tag value – Type the value as the VLAN ID number. The
range is form 0 to 4095.
Priority – Type the packet priority number for such VLAN.
The range is from 0 to 7.

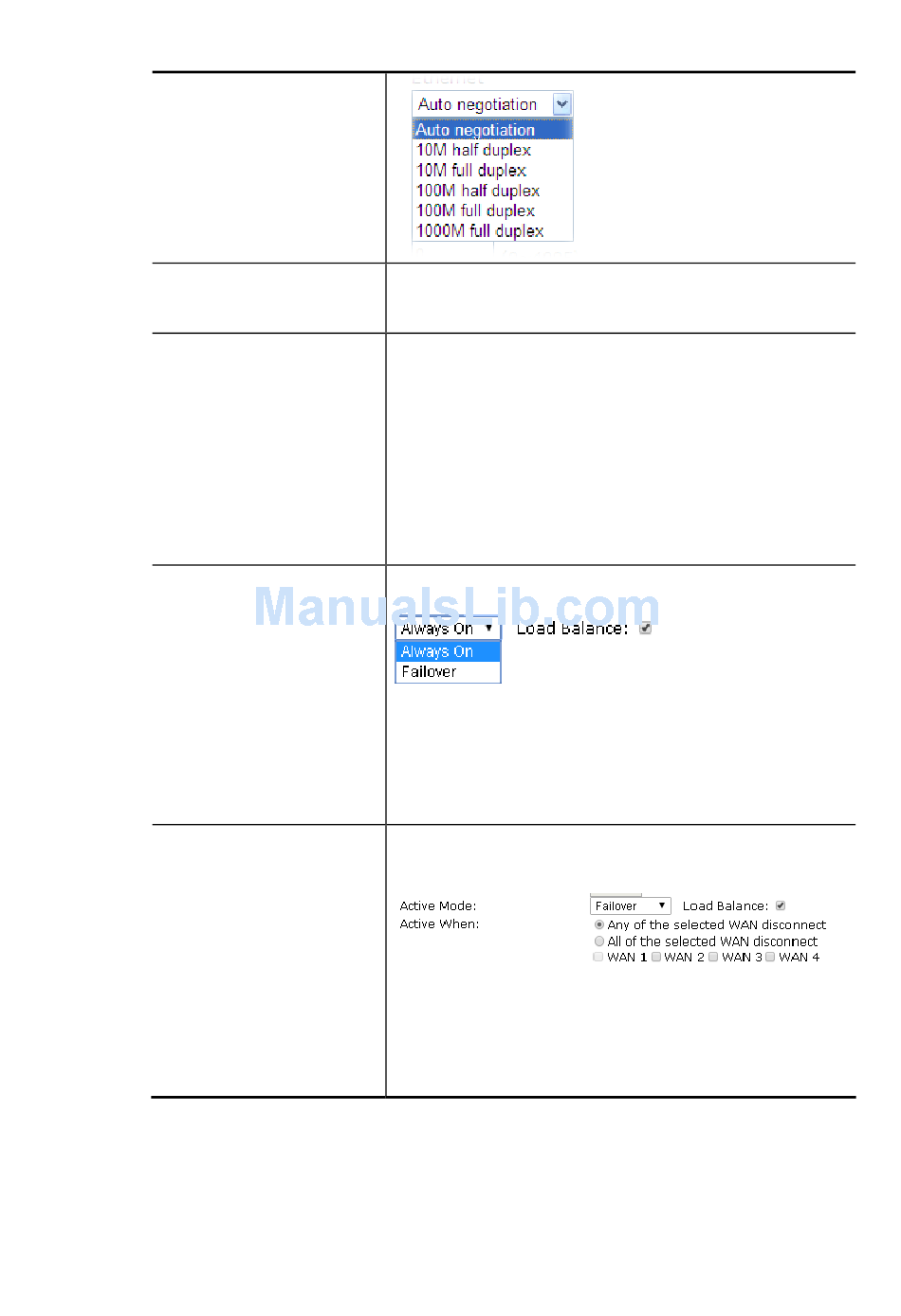

Choose Always On to make the WAN1 connection being
activated always.
Load Balance: Check this box to enable auto load balance
function for such WAN interface.
When the data traffic is large, the WAN interface with the
function enabled will balance the data transmission
automatically among all of the WAN interfaces in
connection status.
If you choose Failover as the Active Mode, Active When
will appear. Please specify which WAN will be the Backup
interface.
Any of the selected WAN disconnect – Such backup WAN
will be activated when any master WAN interface
disconnects.
All of the selected WAN disconnect – Such backup WAN will
be activated only when all master WAN interfaces
disconnect.
