After finishing all the settings here, please click OK to save the configuration.
V - 1 - 8 L A
V - 1 - 8 L A
Here you can manage LAN-to-LAN connections by maintaining a table of connection profiles.
You may set parameters including specified connection direction (dial-in or dial-out),
connection peer ID, connection type (VPN connection - including PPTP, IPsec Tunnel, and
L2TP by itself or over IPsec) and corresponding security methods, etc.

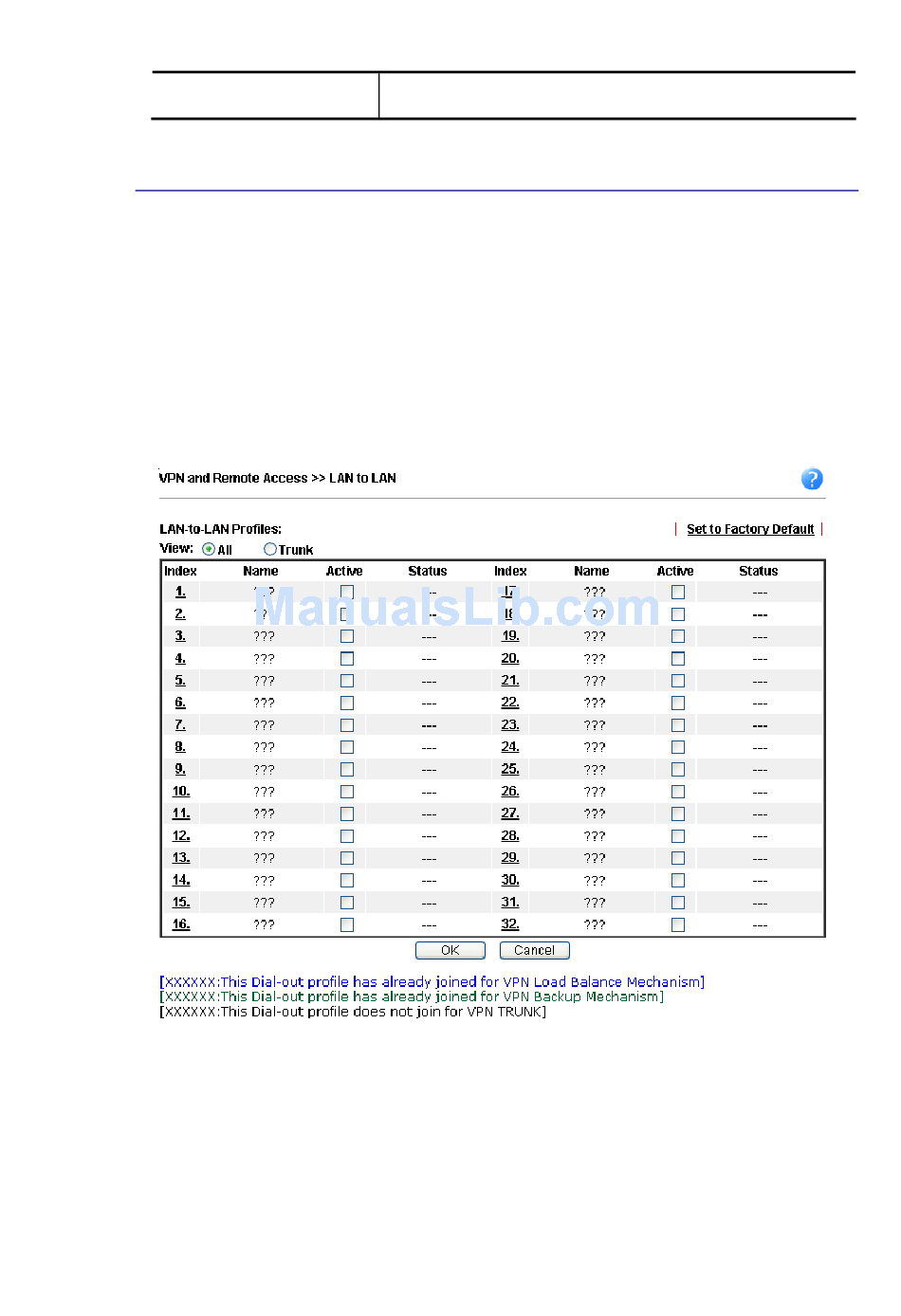

The router supports up to 32 VPN tunnels simultaneously. The following figure shows the
summary table.
The following figure shows the summary table according to the item (All/Trunk) selected for
View.
The following shows profiles joined into VPN Load Balance and VPN Backup mechanism.
VigorBX 2000 Series User's Guide
setting in the LAN-to-LAN Profile setup. This item is optional
and can be used only in IKE aggressive mode.
N t o L A N
N t o L A N
341
