A10/A11/A10W/A11W IP Phone User Manual

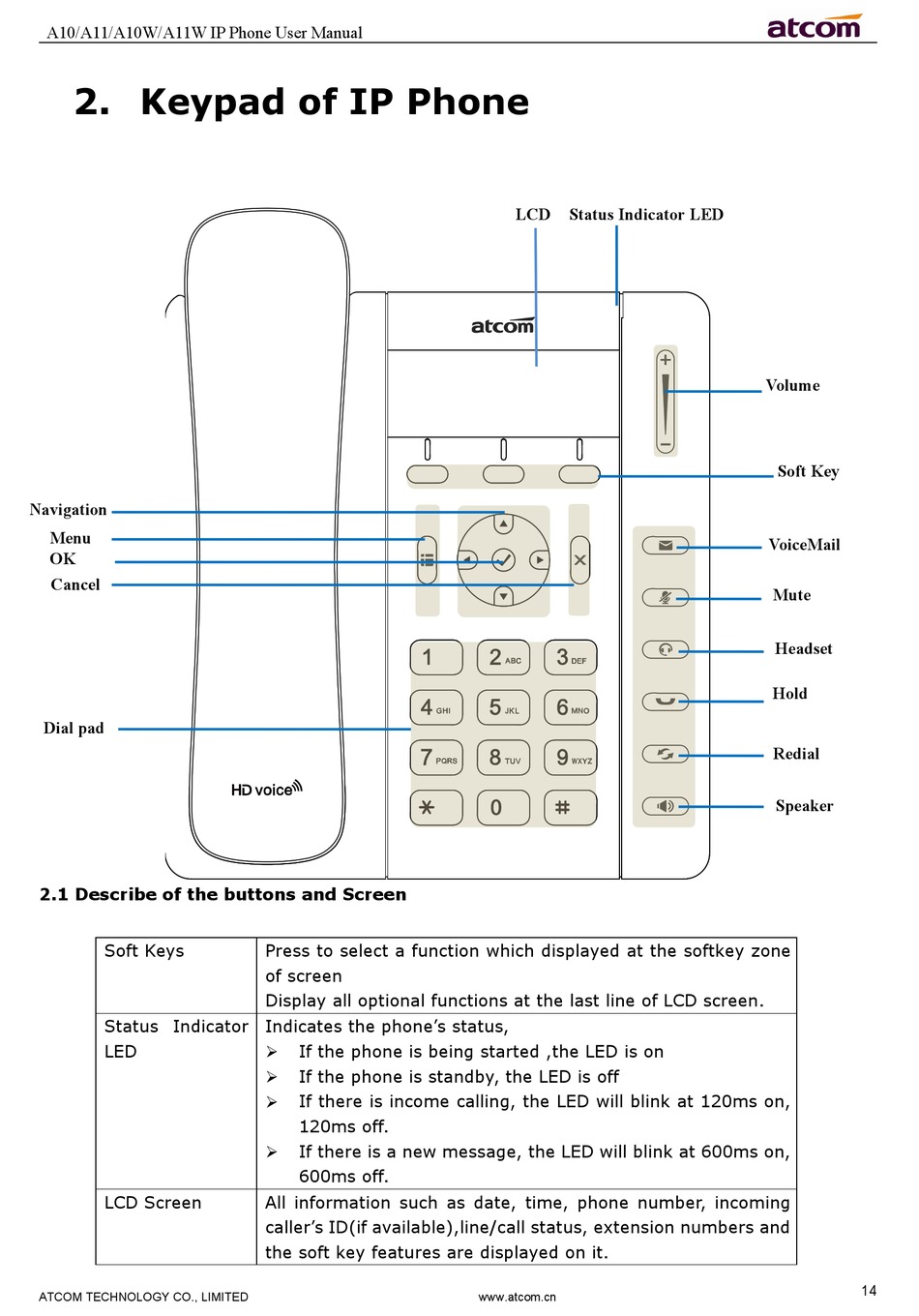

2. Keypad of IP Phone

Navigation
Menu
OK
Cancel
Dial pad

2.1 Describe of the buttons and Screen

Soft Keys
Status Indicator
LED
LCD Screen
ATCOM TECHNOLOGY CO., LIMITED
Press to select a function which displayed at the softkey zone
of screen
Display all optional functions at the last line of LCD screen.
Indicates the phone's status,
If the phone is being started ,the LED is on

If the phone is standby, the LED is off

If there is income calling, the LED will blink at 120ms on,

120ms off.
If there is a new message, the LED will blink at 600ms on,

600ms off.
All information such as date, time, phone number, incoming
caller's ID(if available),line/call status, extension numbers and
the soft key features are displayed on it.
LCD Status Indicator LED
www.atcom.cn
Volume
Soft Key
VoiceMail
Mute
Headset
Hold
Redial
Speaker
14
