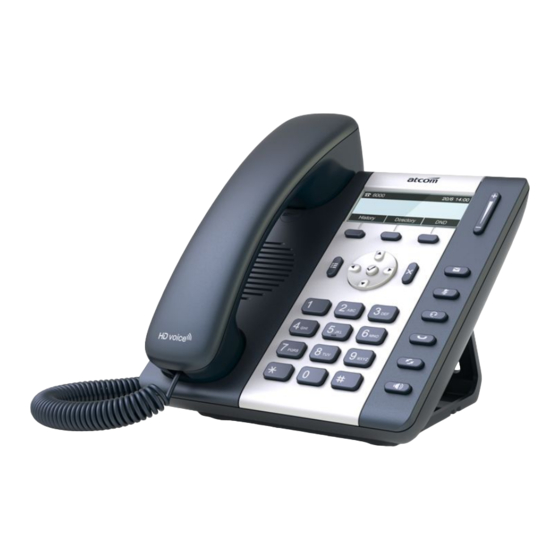

- Page 1 A11 Quick Start Guide Version 1.0 2015-10-13...
-
Page 2: Table Of Contents
A11 Quick Start Guide Content Installation and access...................... 2 Connection..........................2 Installation instruction......................2 Configuring phone........................8 Configuring via keypad......................9 Configuring via Webpage.......................9 2.2.1 Login to web...........................9 2.2.2 Configure phone to register SIP account................9 Network Configuration......................9 Account Configuration......................10 2..3 Wi-Fi............................12 2.3.1 Configure the wifi on the WEB....................12... -
Page 3: Installation And Access
A11 Quick Start Guide 1. Installation and access Connection Set up A11 as below: Installation instruction 1. Desktop installation A. Put the bottom side of the IP phone upside and press the plate into the slot, please refer the picture as below:... - Page 4 A11 Quick Start Guide B. Press the other plate into the slot according to the direction of the arrow C. It is the right picture after fixing the feet below: ATCOM TECHNOLOGY CO., LIMITED...
- Page 5 A11 Quick Start Guide D. Disassemble the feet: Push the plate and pull the feet according to the direction of the arrow. When the plate is pulled out of the slot, you can take off the feet 2. Wall-hung Installation A.
- Page 6 A11 Quick Start Guide B. Press the other side joints into the slot according to the direction of the arrow C. After install the wall-hung stand bracket, press one-side joints of stand bracket into the slot, please refer the picture as below:...
- Page 7 A11 Quick Start Guide D. Press the other side joints into the slot according to the direction of the arrow E. Knock in nails or screws on the wall according to the proportion of the distance between the hanging holes as below:...
- Page 8 A11 Quick Start Guide F. It is the right picture after fixing the stand bracket below: G. Disassemble the stand bracket: Push the spring joint of stand and pull the stand according to the direction of the arrow. ATCOM TECHNOLOGY CO., LIMITED...
-
Page 9: Configuring Phone
A11 Quick Start Guide 2. Configuring phone ATCOM TECHNOLOGY CO., LIMITED... -
Page 10: Configuring Via Keypad
Login to web Modify your computer’s IP address to the same network as A11. Enter A11’s IP address in the web browser and press Enter, then you will access to A11's user webpage without password. Click ‘admin’ which is on the right corner to enter administrator webpage. -
Page 11: B) Account Configuration
Static: If you want to set the IP as static, you should fill IP, Netmask, Gateway and DNS information. PPPoE: If A11 is connected to the modem, you should fill ADSL account and password which are assigned by your network service provider. - Page 12 A11 Quick Start Guide Display Name: This name will display on the screen of A11. It will display the name configured for the SIP account by the SIP server preferentially. It can also be kept blank. User ID: Username of SIP account.
-
Page 13: Wi-Fi
A11 Quick Start Guide 2.3 Wi-Fi 2.3.1 Configure the wifi on the WEB A21 connect to network via Wi-Fi acquiescently, click “Search Wi-Fi” button to search the available Wi-Fi. After all available Wi-Fi hotspots are list out, click the round behind the available Wi-Fi which you want to connect. -
Page 14: Configure The Wifi On The Phone
A11 Quick Start Guide Input the right “Secret Key” and then click the “Submit” button, the phone will reboot, and you should disconnect the wire that connect to A21 during rebooting, or the phone will connect to network via wire preferentially. The Wi-Fi icon will display on the home screen, it means connect failed when the icon come with ×,...
