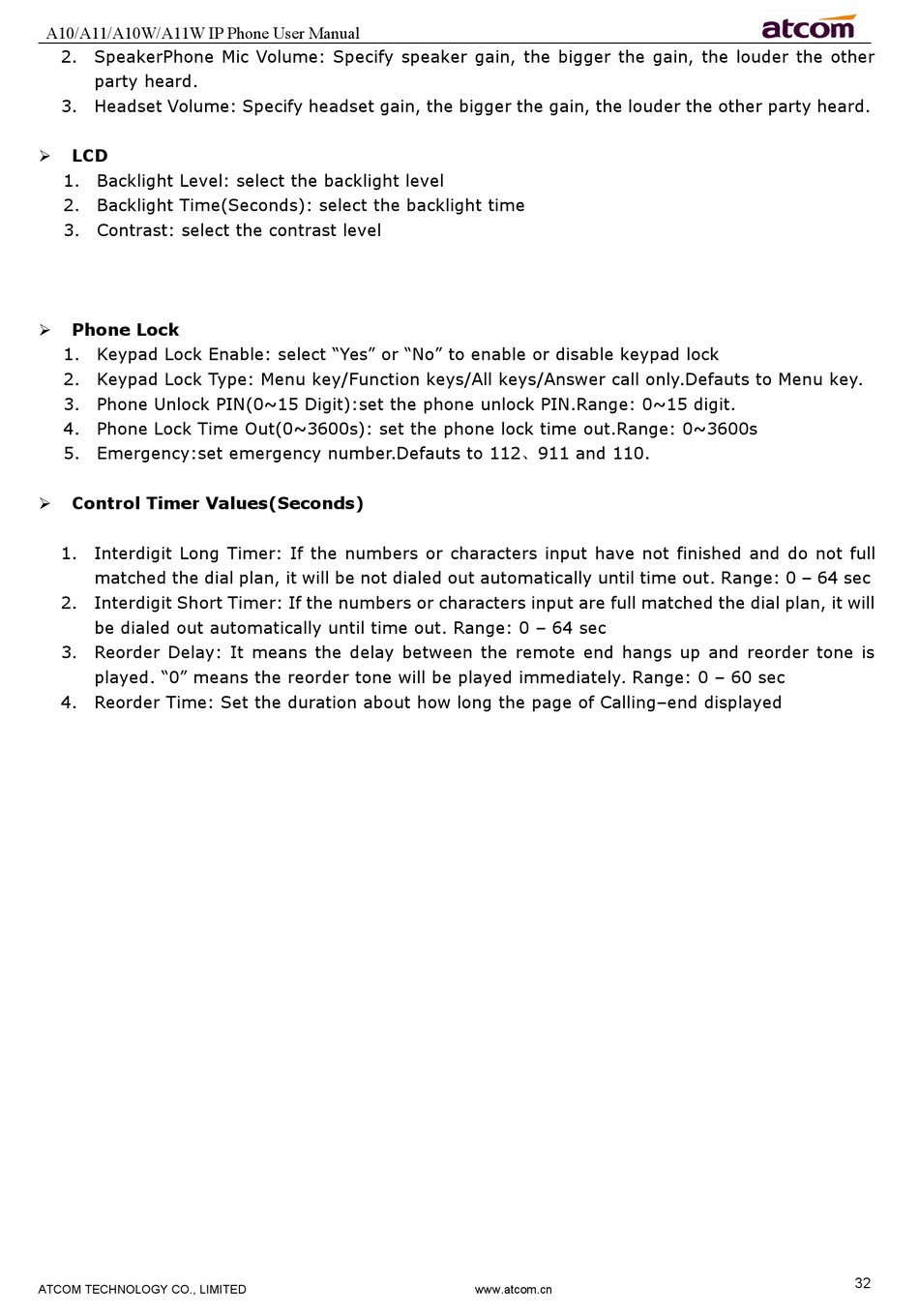

ATCOM A10 User Manual page 32

A10/A11/A10W/A11W IP Phone User Manual
2. SpeakerPhone Mic Volume: Specify speaker gain, the bigger the gain, the louder the other
party heard.
3. Headset Volume: Specify headset gain, the bigger the gain, the louder the other party heard.
LCD

1. Backlight Level: select the backlight level
2. Backlight Time(Seconds): select the backlight time
3. Contrast: select the contrast level
Phone Lock

1. Keypad Lock Enable: select "Yes" or "No" to enable or disable keypad lock
2. Keypad Lock Type: Menu key/Function keys/All keys/Answer call only.Defauts to Menu key.
3. Phone Unlock PIN(0~15 Digit):set the phone unlock PIN.Range: 0~15 digit.
4. Phone Lock Time Out(0~3600s): set the phone lock time out.Range: 0~3600s
5. Emergency:set emergency number.Defauts to 112、911 and 110.
Control Timer Values(Seconds)

1. Interdigit Long Timer: If the numbers or characters input have not finished and do not full
matched the dial plan, it will be not dialed out automatically until time out. Range: 0 – 64 sec
2. Interdigit Short Timer: If the numbers or characters input are full matched the dial plan, it will
be dialed out automatically until time out. Range: 0 – 64 sec
3. Reorder Delay: It means the delay between the remote end hangs up and reorder tone is
played. "0" means the reorder tone will be played immediately. Range: 0 – 60 sec
4. Reorder Time: Set the duration about how long the page of Calling–end displayed
