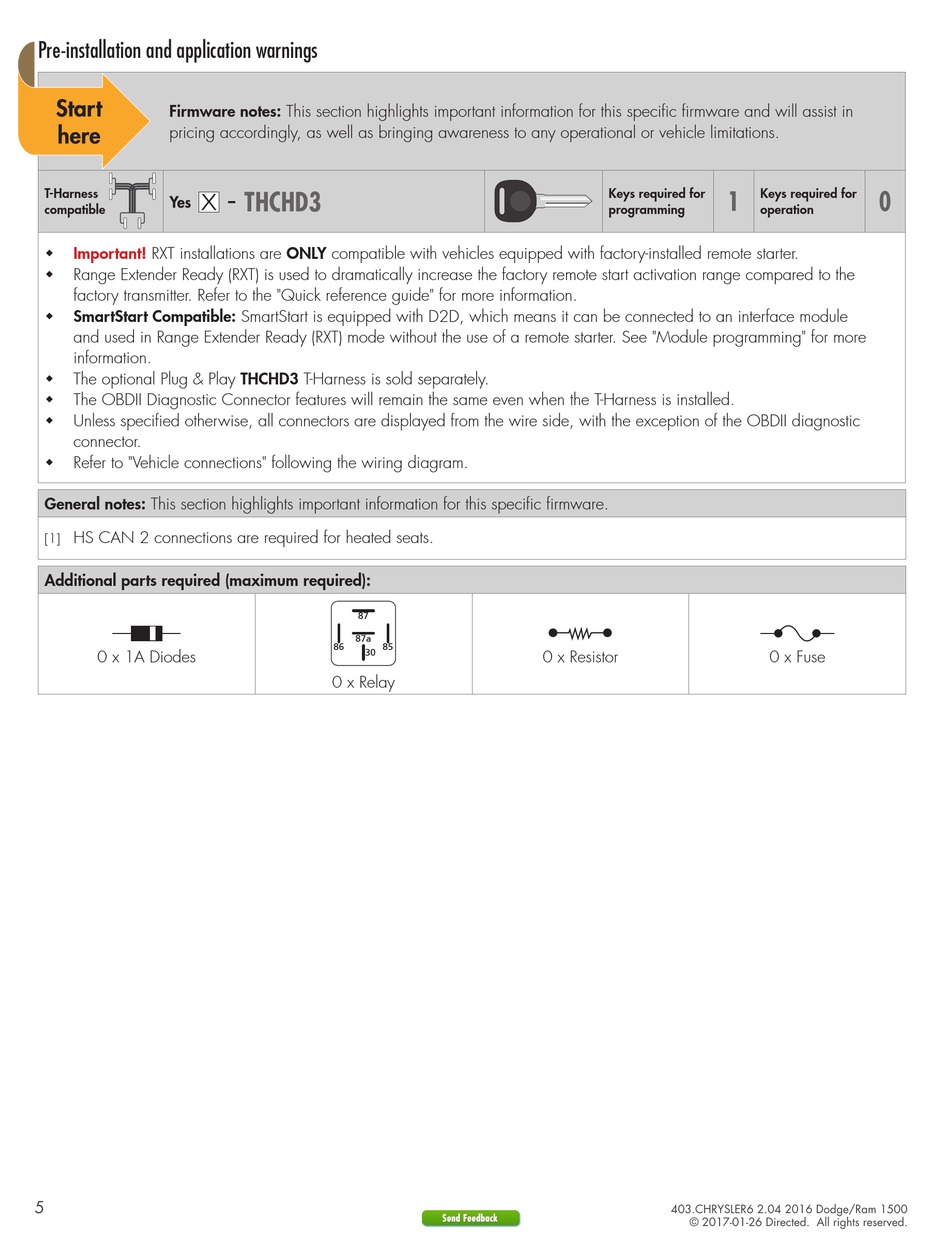

Pre-installation and application warnings

Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
Important! RXT installations are ONLY compatible with vehicles equipped with factory-installed remote starter.
Š
Range Extender Ready (RXT) is used to dramatically increase the factory remote start activation range compared to the
Š
factory transmitter. Refer to the "Quick reference guide" for more information.
SmartStart Compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module
Š
and used in Range Extender Ready (RXT) mode without the use of a remote starter. See "Module programming" for more
information.
The optional Plug & Play THCHD3 T-Harness is sold separately.
Š
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
Š
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
Š
connector.
Refer to "Vehicle connections" following the wiring diagram.
Š
General notes: This section highlights important information for this specific firmware.
HS CAN 2 connections are required for heated seats.
[1]
Additional parts required (maximum required):
Diode 6A
0 x 1A Diodes
5
THCHD3
87
87a
86 85
30
0 x Relay
Keys required for
programming
Resistor 100Ω
0 x Resistor
403.CHRYSLER6 2.04 2016 Dodge/Ram 1500
