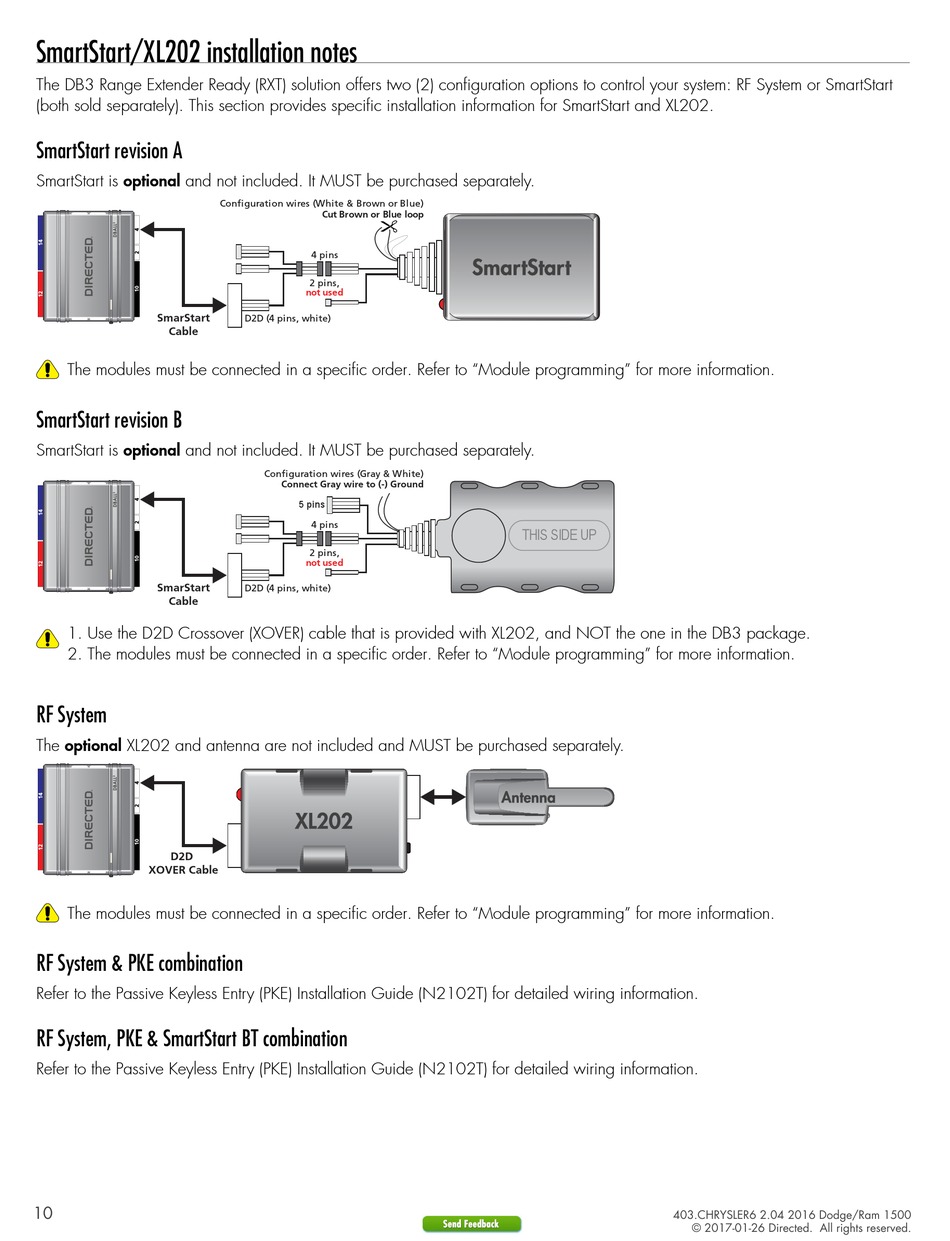

SmartStart/XL202 installation notes

The DB3 Range Extender Ready (RXT) solution offers two (2) configuration options to control your system: RF System or SmartStart
(both sold separately). This section provides specific installation information for SmartStart and XL202.
SmartStart revision A
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
The modules must be connected in a specific order. Refer to "Module programming" for more information.
SmartStart revision B
SmarStart
Cable
SmartStart is optional and not included. It MUST be purchased separately.
SmarStart
Cable
SmarStart
Cable
SmarStart
Cable
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DB3 package.
D2D
XOVER Cable
2. The modules must be connected in a specific order. Refer to "Module programming" for more information.
RF System
SmarStart
Cable
D2D
The optional XL202 and antenna are not included and MUST be purchased separately.
XOVER Cable
D2D
XOVER Cable
The modules must be connected in a specific order. Refer to "Module programming" for more information.
RF System & PKE combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF System, PKE & SmartStart BT combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
10
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
4 pins
2 pins,
not used
Configuration wires (White & Brown or Blue)
Cut Brown or Blue loop
D2D (4 pins, white)
4 pins
Configuration wires (Gray & White)
2 pins,
Connect Gray wire to (-) Ground
not used
5 pins
D2D (4 pins, white)
Configuration wires (White & Brown or Blue)
4 pins
Cut Brown or Blue loop
2 pins,
not used
Configuration wires (Gray & White)
4 pins
Connect Gray wire to (-) Ground
D2D (4 pins, white)
5 pins
2 pins,
not used
4 pins
D2D (4 pins, white)
2 pins,
not used
D2D (4 pins, white)
Configuration wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
4 pins
2 pins,
not used
D2D (4 pins, white)
THIS SIDE UP
THIS SIDE UP
THIS SIDE UP
403.CHRYSLER6 2.04 2016 Dodge/Ram 1500
