Shinybow USA SB-5645CAK Instruction Manual

4x4 hdmi-hdbaset™ matrix switch with auxiliary audio i/o
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

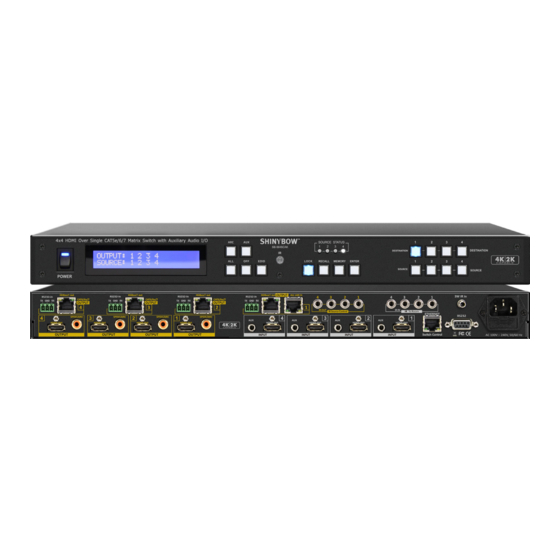

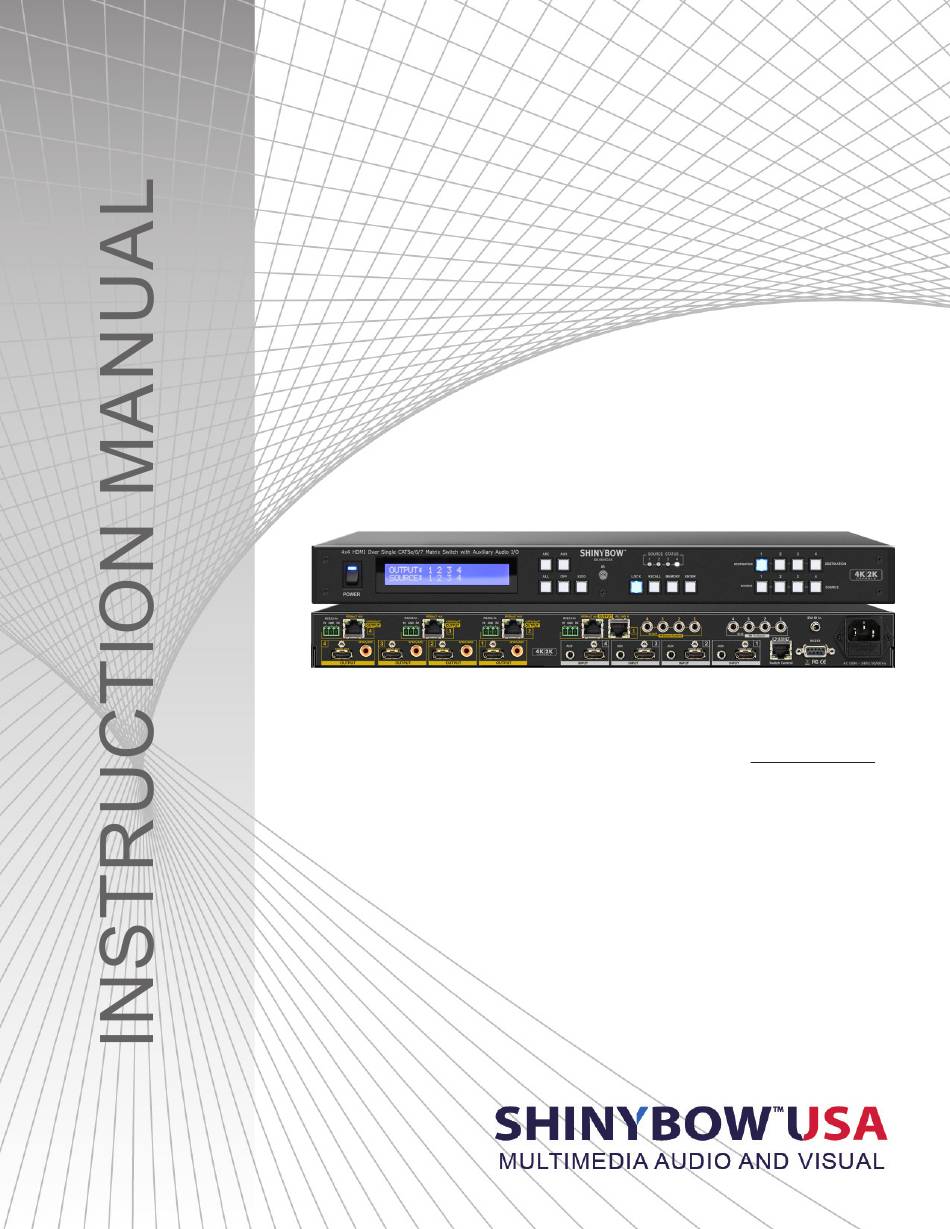

SB-5645CAK
4x4 HDMI-HDBaseT
Matrix Switch with Auxiliary Audio I/O
™
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5645CAK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinybow USA SB-5645CAK

Summary of Contents for Shinybow USA SB-5645CAK

  • Page 1 SB-5645CAK 4x4 HDMI-HDBaseT Matrix Switch with Auxiliary Audio I/O ™ IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    PSU if it is damaged. • Do not allow anything to rest on the power cabling or allow any The SB-5645CAK is a professional 4x4 matrix routing switch. weight to be placed upon it or any person walk on it.

  • Page 4: Features & Contents

    The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components; • SB-5645CAK Matrix Switcher • RS-232 V2.0 / Ethernet V2.0 Protocol Instructions • IR Remote Control (SW-5645CAK) •...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (4) Inputs to (4) Outputs HDMI over HDBaseT Matrix Switch with Audio and Extension ™ • HDMI Support: HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDBaseT Support: Bi-directional IR, RS-232, Multi format Audio and Ethernet over a CAT6/6a/7 cable ™...

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.
  • Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - ARC: Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher. Not all displays support ARC, check your Users Guide for additional information.
  • Page 8 FRONT PANEL FRONT PANEL 10. FUNCTION KEY - AUX (The audio additional on the “ Audio / ARC” Port ): The AUX FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUX Input. Using the AUX function, this replaces the audio and does not mix the audio.
  • Page 9 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - EDID (1): Used to display change current EDID mode. - Press EDID to select the new EDID mode or selection. - Press Source row #1 or #2 to select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.
  • Page 10 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by the OFF button. The display will show “0“ indicating all destinations have no video selected.
  • Page 11 FRONT PANEL FRONT PANEL 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of (8). Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 4 as the memory preset location.

  • Page 12: Back Panel

    BACK PANEL BACK PANEL 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with a DC power plug input Connector Type: IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 13 BACK PANEL BACK PANEL 5. INPUTS - 1, 2, 3 & 4 HDMI: HDMI CONNECTOR: Connects a HDMI signal source to this HDMI Type A SMD 19pin Input. This HDMI port supports HDMI with embedded audio and female socket connector. DVI with AUX audio sources.
  • Page 14 BACK PANEL BACK PANEL REMOTE PORT: 9. HDBASET RS-232 - 1, 2, 3 & 4 CONNECTION: ™ Terminal Block female 3pin (4) RS-232 control connector. ports allow for interfacing to a PC. RS-232 control via the switchers HDBaseT Transmitters up to (4) rooms each via the D-sub-15p ™...
  • Page 15 BACK PANEL - HDBASET OUT & RS-232-IR TRANSMISSION ™ BACK PANEL-HDBASET ™ 15. OUTPUT - 1, 2, 3 & 4 HDBASET (Transmitter): HDBASET TRANSMITTER CONNECTOR: ™ ™ Sends (4) HDMI and control signals via the switchers (4) HDBaseT Transmitters (4) RJ-45 Jack 8P8C female socket. ™...

  • Page 16: Remote Control

    REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
  • Page 17 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 44BB DATA CODE : POWER ON: 44BB A15E LOCK: 44BB B54A AUX: 44BB 9966 POWER OFF: 44BB A25D RECALL: 44BB B24D ALL: 44BB...
  • Page 18 ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #4 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE: 44BB IR-01 DATA CODE: IR-02 DATA CODE: SOURCE #1 : 44BB 11EE SOURCE #1 : 44BB 21DE SOURCE #2 : 44BB 12ED SOURCE #2 : 44BB 22DD...

  • Page 19: Ethernet / Rs-232 Serial Interface

    ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. Example of command strings to select Inputs: FUNCTION COMMAND VARIABLES Select source...

  • Page 20: Edid Functions

    EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3.
  • Page 21 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
  • Page 22 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Selecting this ® ® ® mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start ®...
  • Page 23 EDID FUNCTION LEARNING EDID SINGLE TO SINGLE Learning Destination #2 EDID To Source #3 Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #2 button row Copy the Destination #2 Display EDID.
  • Page 24 EDID FUNCTION EDID MULTIPLE LEARNING MODE-1 SINGLE LEARNING EDID #1 Learning EDID From Destination To Source EDID > DESTINATION Single Learning EDID mode-#1 setup Press Button: The LCM will show LEARNING. EDID > DESTINATION > SOURCE > ENTER Press The switcher will LEARN the HDMI EDID destination and pass to the selected source. Learning EDID setup for HDMI.

  • Page 25: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .

  • Page 26: Typical Application

    INSTALLING DIAGRAM Samples Connection: 1. Using external IR, RS-232 or Ethernet commands to control the switcher SB-5645CAK via PC or SB-100 IR receivers to transmit the SB-5645CAK’s IR signal. 2. Audio output link ARC from TV return channel, HDMI audio source or mixing Auxiliary audio.
  • Page 27 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using the SB-5645CAK HDBaseT Transmitter and one HDBaseT Receiver (SB-6335R) to control a projector via RS-232 or IR signals. ™ ™ NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-5645CAK ™ HDBaseT Transmitter and SB-6335R HDBaseT Receiver.

  • Page 28: Hdbaset ™ Application

    TYPICAL APPLICATION HDBASET APPLICATION 4X4 IR MATRIX ROUTING SOURCE CONTROL ™ Sample Connection: HDBaseT IR return (From Room) will follow the Video Source. In this example: the IR remote for the projector is connected to port #2 ™ “IR To Room.” From the SB-6335R, the IR Output is connected to the projector. This allows remote operation of the projector from the SB- 5645CAK.
  • Page 29 HDBASET APPLICATION ™ APPLICATION Optional 19 inch Rack Mount Bracket for SB-6335T and/or SB-6335R: Complete 19 inch 4U rack mount of SB-6069 Install Application: SB-6335T/R SB-6069 (optional) SB-6335TR 19 INCH 4U-10P RACK MOUNT 1. Model No.: #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 2.
  • Page 30 HDBASET APPLICATION ™ RACKMOUNT (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No.: #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000...
  • Page 31 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
