Digitální HD Satelitní Přijímač
THS815
Návod k obsluze
Používateľská príručka
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THS815 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THOMSON THS815

Summary of Contents for THOMSON THS815

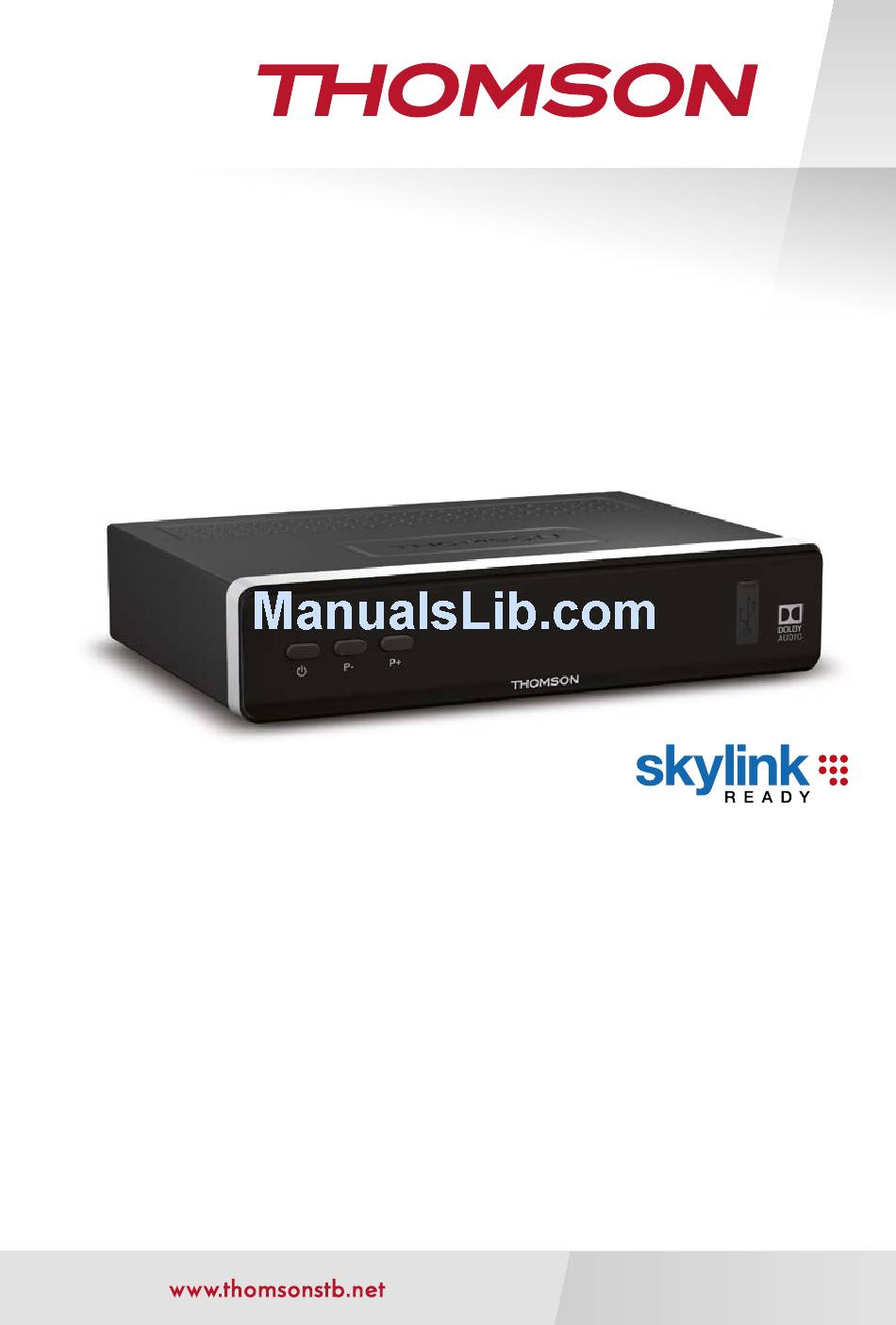

  • Page 1 Digitální HD Satelitní Přijímač THS815 Návod k obsluze Používateľská príručka User Manual...
  • Page 4 English from our website www.thomsonstb.net/cz/contact-form. Za výrobu a prodej tohoto produktu je zodpovědná společnost STRONG Group. THOMSON a logo THOMSON jsou ochranné známky společnosti Technicolor (S.A.) nebo jejích přidružených organizací používané společností STRONG Group v rámci licence.
  • Page 5 Licenses ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN PERSONAL USE THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite 400E, Greenwood Village, Colorado 80111 U.S.A.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1.0 INTRODUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Equipment Set-up 1.4 Accessories 1.5 Usage of external USB devices 2.0 YOUR RECEIVER 2.1 DEFAULT PIN-CODE: 0000 2.2 Front Panel 2.3 Side Panel 2.4 Rear Panel 2.5 Remote Control 2.6 Installing the batteries 2.7 Using the remote control 3.0 CONNECTIONS...

  • Page 7: Introduction

    1.0 INTRODUCTION 1.1 Safety Instructions DO NOT INSTALL YOUR RECEIVER: - In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a surface which might obstruct the ventilation slots. DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES: - To direct sunlight or any other equipment that generates heat;...

  • Page 8: Accessories

    MENU Represents a button on the remote control or the receiver. (Bold characters) Move to Represents a menu item within a screen. (Italic characters 1.4 Accessories - 1x Installation instructions - 1x remote control unit - 2x batteries (AAA type) - 1x adapter12 Volt DC, 1,5 Ampère 1.5 Usage of external USB devices - It is recommended to use USB 2.0 or higher storage devices.

  • Page 9: Remote Control

    2.5 Remote Control Obr. 3 1. q Switches the receiver On/Standby 2. ! Mutes audio output of the receiver in every mode incl. videotext 3. FAV Opens the favourite list selection 4. LIST Show the currently selected channel list. 5. AUDIO Opens the list of audio languages 6.

  • Page 10: Using The Remote Control

    WARNING: The batteries should not be recharged, disassembled, electrically short- circuited, be mixed or used with other types of batteries. If rechargeable accumulators instead of batteries are going to be used, we recommend using (e.g. NiMH) types with low self-discharge to ensure long time operation of remote control.

  • Page 11: Starting Up For The First Time

    4.0 STARTING UP FOR THE FIRST TIME Ensure that your satellite signal is of good quality and that all connections are properly setup. In case you encounter difficulties or you have questions, please ask your local dealer for assistance. It is recommended to follow the First Time Installation step by step. It will guide you through the basic setup and installation process.

  • Page 12: Satellite Diseqc Selection (Step 5)

    We understand that you can’t wait to enjoy your new HD receiver. We do, however, advice you to read the full manual to get the best performance from your THOMSON HD receiver. To switch your receiver on or to Standby, use the q button on the remote control or the button on the left-hand side of the front panel.

  • Page 13: Info Banner

    6.1.2 Channel list alphabet Press OK in viewing mode to display the channel list. Use pq or P+/P- in the channel list to highlight the channel of your choice and press OK to switch to the highlighted channel. The channel list is equipped with a filter function to facilitate finding your favourite channels. While in the channel list, press RED.

  • Page 14: Epg (Electronic Programme Guide)

    6.7 EPG (Electronic Programme Guide) The Electronic Programme Guide (EPG) provides an overview on the current television programme. This information is provided by the respective broadcaster and may not be available for all channels. The Electronic Programme Guide is a very useful function that allows you to watch programme schedules and information on screen and to add events for recording.

  • Page 15: Playback Of Recording

    NOTE: Timeshift only works correctly when a fast USB storage device such as a USB 2.0 HDD is connected to the receiver. Distorted picture and/or audio during Timeshift indicates a too low USB device speed. In the case of Timeshift being activated at channels with a high data rate (HD), we cannot guarantee an accurate playback of the Timeshift file.
  • Page 16 LNB Type Shows which type of LNB is supported universal LNB. LNB Freq. Show the Local Oscillator Frequency of the Universal LNB 9750/10600. 22KHz Tone This setting shows that it is set to automatically. Auto. DiSEqC 1.0 Select a port 1 to 4 according to the connected satellite dish. DiSEqC 1.1 Select a port 1 to 16 according to the connected satellite dish.

  • Page 17: Channels And Timer Manager

    Transponder list Select a specific transponder you would like to search on. By pressing t u you can change between the transponders referring to the selected satellite, you can also press OK to list and select with pq or P+/P-. Afterwards press OK to choose. Press RED to Edit TP, with BLUE you can Delete TP and with GREEN you can enter data for a new transponder Add TP.
  • Page 18 the middle column will you see your new created favourite list. If you would like to remove a channel from the favourite list, select that channel in the Favor list and press OK to delete. Sorting of selected FAV list is possible by selecting the channel and press the yellow Move button. Behind the selected channel the move icon will be shown.

  • Page 19: Settings

    Timer Mode: Choose between Once (Timer will wake-up the receiver) or Off (Timer will not start the scheduled event). Also you can select Monday-Friday, Daily and Weekly. Timer Service: Choose between Wake up to wake-up the receiver, Choose Record to time a recording to an external USB device.
  • Page 20 7.3.2 Display In this submenu Display Settings you can setup which screen type you have connected and how the best way it is shown. The following parameters can you adjust: Resolution 576i, 576p, 720p, 1080i or 1080p, to adjust the optimum resolution your TV set supports.

  • Page 21: Storage

    GMT Offset: Allows you to adjust the time zone you live in. The GMT Offset range is "-11:00 ~ +12:00". Summer Time: Select Off or On to add one extra hour for summer time during the Daylight Saving period. 7.3.6 Language In this submenu you can setup the language used in the menus, preferred audio and subtitles.
  • Page 22 General: Start of playback of multimedia file. To pause the playback of multimedia file. Fast rewind/fast forward. GREEN Jump Jump function in playback modes of multimedia files. Stop playback. DVR: SUB Subtitle: During the playback of a record with subtitles, press the button SUB Subtitle to enter the subtitle menu.

  • Page 23: Tools

    7.1.3 Storage Device Setup This option shows relevant information about the connected USB device. In this menu you can also format your USB storage device and safely remove. Select Storage Device Setup in the Storage menu and press OK to enter. All details as free and used space sizes and used file system are shown.
  • Page 24 7.2.3.2 Service Status This sub menu gives access to detailed information about access keys (EMM) for your bouquet. 7.2.3.3 Loader Status This sub menu gives access to detailed information about Irdeto loader and version. 7.2.3.4 Mailbox This menu allows access to Irdeto mails. It is used for sending important information from the broadcaster/content provider to you.

  • Page 25: Software Update

    If the receiver does not work properly after checking it, please contact your local service line or THOMSON dealer. Alternatively, you can send a support mail via our website: www.thomsonstb.net. NEVER open or disassemble your receiver. This may cause a dangerous situation and will void the warranty.
  • Page 26 Symptom Cause Remedy No picture Wrong input Check that the correct TV input is selected. HDMI No sound selected/ bad inputs for most TV screens are not automatically No menu connection or cable. switched to the correct HDMI input. Connectors are not Make sure the connectors are properly connected fully inserted.
  • Page 27 Symptom Cause Remedy The remote control does The batteries of Check whether the batteries are inserted correctly not work the remote control or exhausted, if so replace the batteries in the are not inserted, remote control. wrongly inserted Switch OFF the suspected lamp. or exhausted.

  • Page 28: Specifications

    9.0 SPECIFICATIONS Demodulator Demodulation: QPSK, 8PSK (integrated in processor) Input symbol rate: 2 ~ 45 MBaud for DVB-S Inner code rate 1/2, 2/3, 3/4, 5/6, 7/8 QPSK: 1/2, 3/5, 2/3, 3/4, 5/6, 8/9 & 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9 & 9/10 Video Profile level: MPEG-2, MPEG-4, H.264/AVC...
  • Page 29 EC and 73/23/EC, RoHS 2002/95/EC This product has been manufactured and sold under the responsibility of STRONG Group. THOMSON and the THOMSON logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by STRONG Group. Any other product, service, company, trade name and logo referenced herein are neither endorsed nor sponsored by Technicolor (S.A.) or its affiliates..
