THS804
The THOMSON THS804 terminal is guaranteed for 24 months from the date of purchase from your
distributor, in application of our safety instructions.
The access rights of the TNTSAT card are automatically activated the first time the card is inserted into the
terminal, for a period of 48 months. It is recommended to perform this activation before the card
initialization deadline.
The TNTSAT access card, like the THOMSON THS804 terminal, are guaranteed for 24 months from the
date of purchase from your distributor, in accordance with our safety instructions notified on page 2 of the
manual and the quick installation guide. .
If you encounter difficulties during the installation or during the commissioning of your terminal, please
contact:
support_fr@thomsonstb.net
SFS at: 0826 461 062 24/7 automatic
(cost of the call: € 0.15 per minute)
The TNTSAT card is valid for 4 years. See renewal conditions at the end of these 4 years on the site
www.tntsat.tv
You will find in this packaging a
www.thomsonstb.net
User manual
Viaccess access card
www.tntsat.tv
required to receive broadcasts.

Advertisement

loading
Need help?

Need help?

Do you have a question about the THS804 and is the answer not in the manual?

Questions and answers

Summary of Contents for THOMSON THS804

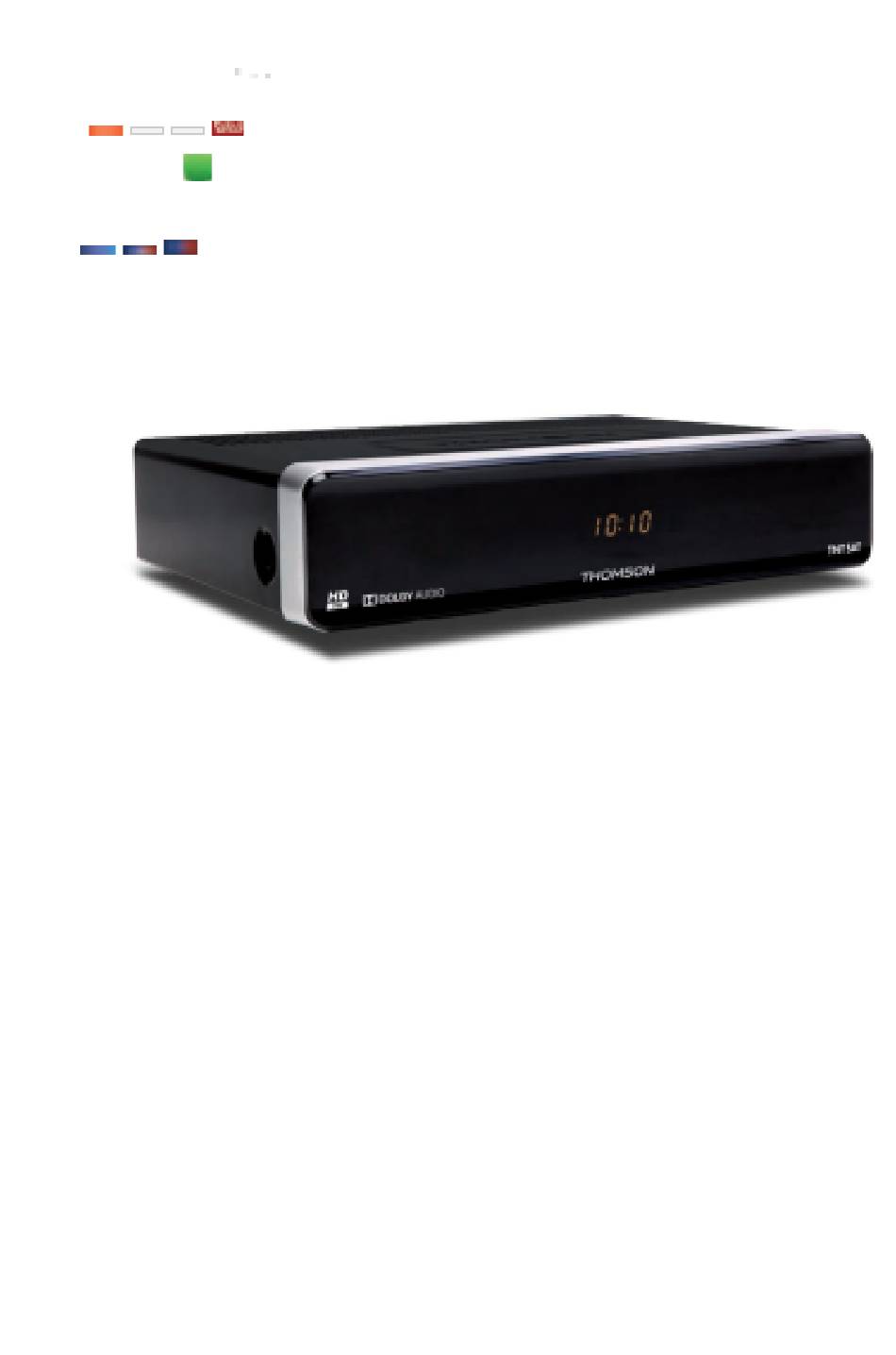

  • Page 1 THS804 www.thomsonstb.net User manual www.tntsat.tv The THOMSON THS804 terminal is guaranteed for 24 months from the date of purchase from your distributor, in application of our safety instructions. Viaccess access card You will find in this packaging a required to receive broadcasts.
  • Page 2: Table Of Contents

    This product has been manufactured and sold under the responsibility of STRONG Group. THOMSON is a trademark of Technicolor (SA) or its affiliates used under license by STRONG Group. Represented by STRONG Ges.mbH • Franz-Josefs-Kai 1 • 1010 Vienna, Austria Email: support_at@thomsonstb.net...
  • Page 3: Introduction

    1.0 INTRODUCTION 1.1 Safety instructions DO NOT INSTALL YOUR TERMINAL: • In a cramped or insufficiently ventilated cabinet, directly on or under another appliance, or even on a surface which could obstruct the ventilation openings. DO NOT EXPOSE THE TERMINAL AND ITS ACCESSORIES: •...
  • Page 4 • You are advised not to save important information on the USB storage device used with the terminal. We recommend that you always back up data to another storage device. THOMSON cannot be held responsible for any loss of information or the consequences of such loss of information.
  • Page 5: Control

    In STANDBY mode, time display In ON mode, number of the selected channel 5. IR receiver IR receiver remote control 6. Chip card slot Insert the TNTSAT card with the chip facing upwards to be able to access the scrambled channels. 2.2 Rear view Fig.
  • Page 6 16. MENU Displays the main menu 17. Exits the menu or submenu and cancels the current function, if necessary 18. V + / V- Increase / decrease the volume level of the terminal 19. P + / P- Used to go to the next / previous channel 20.
  • Page 7: First Start-Up 6 4.1 Language

    Fig. 6 Your dish should be aimed at the Astra satellite at 19.2 East. Ask your dealer to point your dish on this satellite. Connect a coaxial cable between your LNB converter and the SAT Input connector of your terminal. If you connect your terminal to an existing local distribution network, check to which DiSEqC input the Astra 19.2 E satellite is connected.
  • Page 8: Regional Channel Selection

    turn green. Try to get the best signal strength and quality. When the signal can no longer be improved, fix the dish in position and press the OK button on the remote control to start the channel search. NOTE: Red signal strength / quality indicator bars indicate that your dish is aimed at the wrong satellite.
  • Page 9 LNB 22K This setting is available if the selected converter type is other than Universal. Select the desired value using thekeys ◄ ►. Set to On to have the terminal automatically select the band when sending the 22 kHz control signal, or to Off to disable the control signal. MAIN MENU Switch type To select the type of switch present on your wired network.
  • Page 10 connected to the terminal in order to select the corresponding settings. You can also adjust the display time of the information banner and the transparency level of the OSD menu. MAIN MENU Select your preferences using thebuttons ◄ ► and press OK to confirm and continue with the installation.
  • Page 11 MAIN MENU 5.3.1 Edit channel This menu allows you to rename, delete and lock channels. Rename You can edit the name of channels that do not belong to the TNTSAT service offer. Press the YELLOW (rename) button. A virtual keyboard will appear on the screen.
  • Page 12 MENU PRINCIPAL 5.3.4 Editer Chaine régionale Ce menu permet de changer de chaîne régionale préférée. Sélectionnez la chaîne régionale de votre choix sur la liste affichée et appuyez sur OK pour confirmer votre sélection. 5.4 Avancé Ce menu est composé de Programmateur, Explorateur ficher, Mise à jour et Réglages Usine. 5.4.1 Programmateur Vous pouvez programmer votre terminal pour effectuer des actions.
  • Page 13 Appuyez sur la touche VERTE pour sauvegarder les données des chaines et des réglages du terminal sur le périphérique USB. Un fichier “dbase.bin” sera créé sur le dossier racine du périphérique USB. MENU PRINCIPAL Restaurer base données Appuyez sur la touche JAUNE pour restaurer les données préalablement sauvegardées sur le fichier “dbase.bin”...
  • Page 14 ATTENTION: Ne pas déconnecter votre terminal de l'alimentation électrique et du signal d'antenne pendant la mise à jour logiciel. MISE À JOUR AUTOMATIQUE DE LA LISTE DES CHAÎNES 8.0 REGARDER LA TV ET ÉCOUTER LA RADIO 8.1 Guide des Programmes (EPG) L'EPG affiche le programme des émissions pour la chaîne en cours.
  • Page 15 8.4 Liste des chaînes Pour afficher à l'écran la liste des canaux en cours, appuyez sur OK en mode visualisation. Sélectionnez le canal à l'aide des touches ▲ ▼ ◄ ► et appuyez sur OK pour passer en mode visualisation plein écran. Commutez entre TV et radio à l'aide de la touche TV/R. Vous pouvez aussi ajouter des chaines à...
  • Page 16 l'enregistrement appuyez sur la touche 3. 9.2 Enregistrement « Direct différé » Votre terminal permet d'effectuer des enregistrements « Direct différé ». Pour démarrer la fonction Direct différé appuyer sur la touche 2. Vidéo sera en pause et le son sera coupé. Pour reprendre le programme là...
  • Page 17: Specifications

    11.0 SPÉCIFICATIONS Démodulateur Modulation: QPSK, 8PSK Débit de symboles d'entrée: 2 ~ 45 Ms/s Signaux SCPC & MCPC des satellites à bande Ku Syntoniseur Front: DVB-S2 Gamme des fréquences d'entrée: 950 – 2150 MHz Impédance RF: 75 Ohms +/- 5% Niveau de signal: -65 ~ -25 dBm Impédance du signal d'entrée: 75 Ohms + / - 5% Puissance LNB polarisation: 13/18 V, 400 mA, surcharge protégée...
  • Page 18 SPÉCIFICATIONS Ce produit a été fabriqué et vendu sous la responsabilité de STRONG Group. THOMSON est une marque de Technicolor (SA) ou de ses affiliées utilisée sous licence par STRONG Group. Représenté par STRONG Ges.mbH Franz-Josefs-Kai 1 - 1010 Vienne - Autriche Email: support_at@thomsonstb.net...
  • Page 19 ASTRA est une marque déposée de SES ASTRA. TNTSAT est une marque de GROUPE CANAL+. Viaccess est une marque de Viaccess, tous les autres produits ou marques sont des marques déposées de leurs propriétaires respectifs. © THOMSON 2019. Tous droits réservés. SPÉCIFICATIONS SPÉCIFICATIONS SPÉCIFICATIONS...
