Summary of Contents for THOMSON THS817

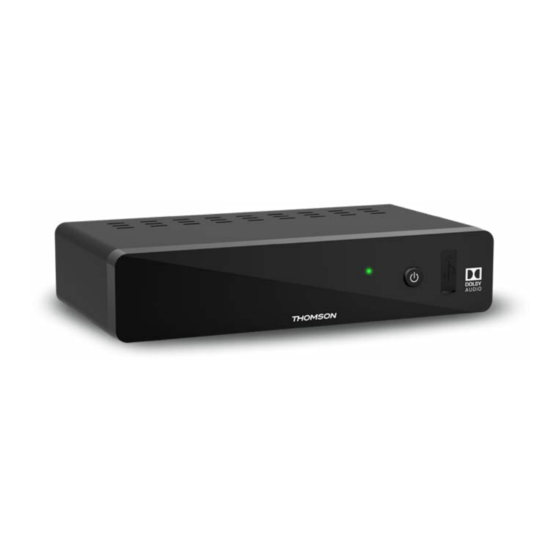

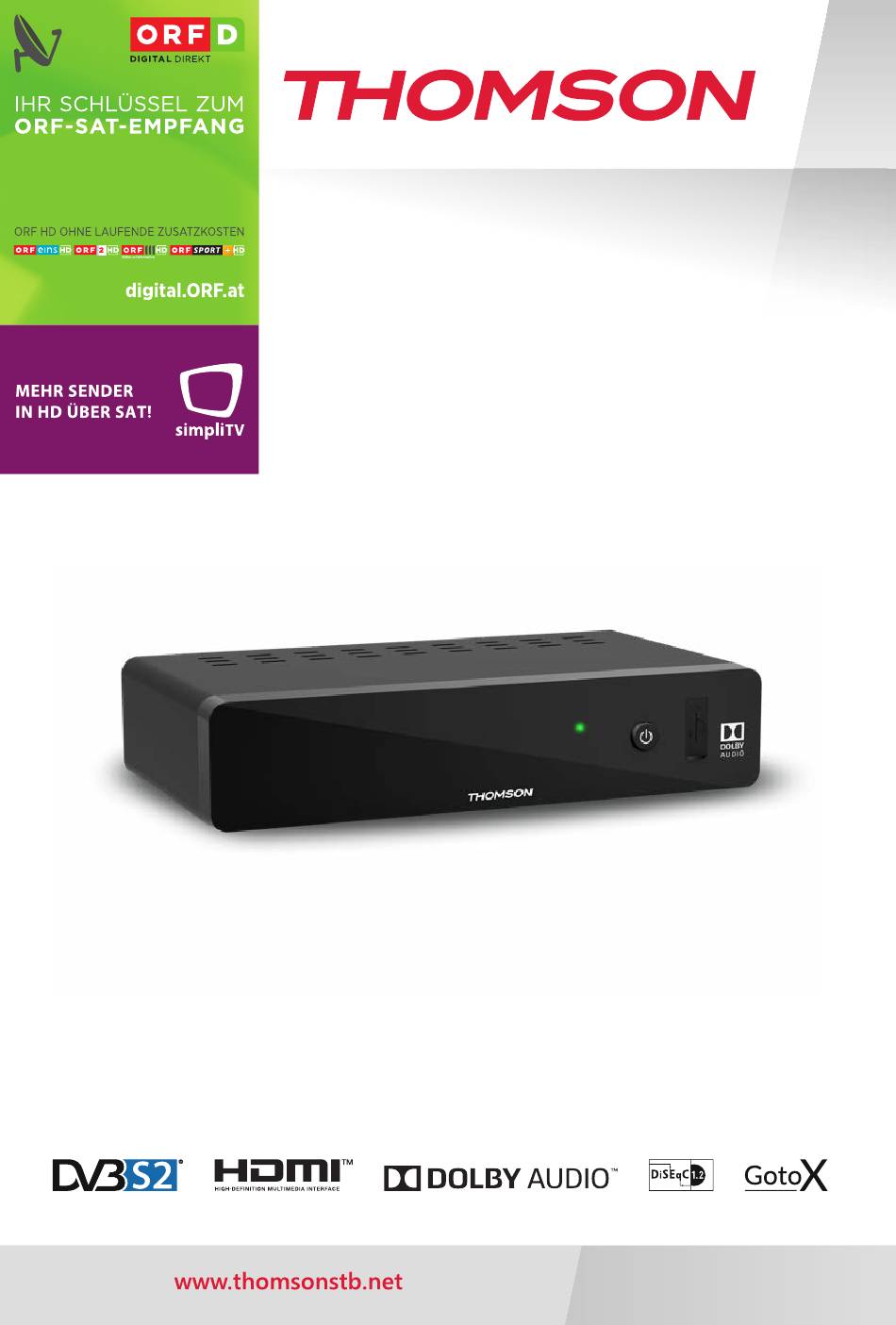

- Page 1 Digitaler HD Satelliten Receiver THS817 User Manual Bedienungsanleitung...
- Page 2 USB: 5 V 500 mA max. MODEL DIGITAL HD SATELLITE RECEIVER THS817 13/18 V 400 mA COAXIAL ETHERNET HDMI S/PDIF 12 V 1.5 A, 18 W max. SAT IN MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES...
- Page 3 USB: 5 V 500 mA max. MODEL DIGITAL HD SATELLITE RECEIVER THS817 13/18 V 400 mA COAXIAL ETHERNET HDMI S/PDIF 12 V 1. 5 A, 18 W max. SAT IN MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES...
- Page 4 Dieses Produkt wurde unter der Zuständigkeit der STRONG Group hergestellt und verkauft. THOMSON und das THOMSON Logo sind Warenzeichen von Technicolor (S.A.) oder seinen Vertretern, welche unter lizenzierter Nutzung der STRONG Group geführt werden. Vertreten durch STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Wien, Österreich...
- Page 5 The full text of the EU declaration of conformity is available at the following internet address: https://www.thomsonstb.net/en/doc THOMSON is a trademark of Technicolor (S.A.) or its affiliates used under license by STRONG Group. Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change.
-
Page 6: Table Of Contents
TABLE OF CONTENT 1.0 SAFETY INSTRUCTIONS 1.1 Storage 1.2 Equipment Set-up 1.3 Accessories 1.4 Usage of external USB devices 2.0 YOUR RECEIVER 2.1 DEFAULT PIN-CODE: 0000 2.2 Front Panel 2.3 Rear Panel 2.4 Remote Control 2.5 Inserting the batteries 2.6 Using the remote control 3.0 CONNECTIONS 3.1 Connection via HDMI or SCART 3.2 Optional connection via DiSEqC 1.0 switch for up to 4 LNBs... -
Page 7: Safety Instructions
1.0 SAFETY INSTRUCTIONS Read all of the instructions before operating the device. Keep these instructions well for later use. - Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.). - Please refer to the information on the product enclosure for electrical and safety information before installing or operating the apparatus. -
Page 8: Storage
WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 9: Your Receiver
- If you are going to use external USB HDD (Hard Disk Drive) please consider that it might be the case that the power specifications exceed the supported output of your receiver (5 V/500 mA). If so, please connect your USB HDD to an according external power adapter. - We cannot guarantee compatibility with all types of USB storage devices. -
Page 10: Inserting The Batteries
14. P+/P- Scroll page wise in all lists 15. INFO Shows the actual channel information (2x event info, 3x technical info) 16. LIST Opens the satellite list in TV mode. In EPG and Timer mode it opens the Timer list 17. -
Page 11: Optional Connection Via Diseqc 1.0 Switch For Up To 4 Lnbs
Optional: Connect one end of a good quality Scart cable to the TV SCART of your receiver and the other end to the SCART input of your TV set. 3.2 Optional connection via DiSEqC 1.0 switch for up to 4 LNBs Fig. -
Page 12: Antenna Setup
NOTE: If you select an HDMI resolution which is not supported by your TV, the receiver will switch to the previous setting automatically after ~10 sec. If you can see the displayed message, please confirm the selected resolution by pressing OK. During any stage of the First Time Installation, you can press BLUE Next to go to the next step or YELLOW Previous to get back to the previous step. -
Page 13: Operation
videotext mode. P+/P- enables you to scroll page wise in all lists, which allows you to select channels or other items as conveniently as possible. To open the channel and programme* information, press the INFO button in viewing mode. In this state it is possible to use t u to display channel and programme information about other channels without switching channels, but however in this mode you can also switch to the selected channel by pressing OK. -
Page 14: Info Banner
LIST: Opens the satellite list selection in viewing and list mode in case there is more than 1 satellite installed. FAV: Displays the favourite list selection in both modes. Details about creating favourite lists can be found in chapter 7.2.1 TV Channel Manager. To return to the original respectively to the previous channel list /mode use TV/R or LIST. -
Page 15: Changing The Video Settings
NOTE: DVB subtitles on Astra 19.2 are currently available on different German channels: Das Erste HD, ZDF HD, 3sat HD, arteHD, WDR HD and other popular channels. If you switch the Subtitles Display to On, the according subtitles will be displayed automatically in case of availability for this channel/movie. -
Page 16: Installation
Use t u to select a sub-menu and pq to choose an option. Press OK to open the chosen submenu. 7.1 Installation Press MENU and select Installation with t u. The following sub-menus are available: Antenna Setup, Motor Setting, Channel Search and Factory Reset. 7.1.1 Antenna Setup In this menu, you can change and adapt settings for the antenna(s) and their transponders. - Page 17 wall, a tree or similar physical blockages could interfere with a free movement of the antenna or motor. Save to this position You can store this position between 0 and 63, OK can be used again as described above. Save/Recalculation With Save and Recalculate, you can set whether the position should be saved or a new calculation should be made after setting this position.
- Page 18 simpliTV List: With this option you can install the simpliTV list at a later stage. In this case, previously installed or available channels are kept and will be integrated in the simpliTV list. TV or radio channels which are not included in the simpliTV list are listed starting with channel number 400 and cannot be edited.
-
Page 19: Channels
WARNING: A factory reset will permanently delete all your personal settings, channels and timers. Please consider this before you perform a factory reset. However, you can make a backup of your data to save your satellite, transponder and channel lists in advance, please read chapter 7.5.3 Database backup to USB device for more information. -
Page 20: Settings
To exit from a menu, press either to go back one step, or MENU to go directly to TV mode. When you exit the menu by /MENU, you will be asked to confirm the changes. This is applicable for all changes you made. - Page 21 Subtitles Display: Select between On or Off. If Subtitle Display is set to On, Subtitles will be displayed automatically in the language selected below (if broadcast/ supported by the operator). If you do not want the receiver to display subtitles, keep the setting Off. Please note that some events are broadcastwd with fixed subtitles (fixed in the video signal integrated).
- Page 22 Recent channel list Here, you can change the function of the 9 button, by default set On, which allows you to open the Recently watched channels list using 9 in TV mode to access up to 30 of the most recently watched channels. If you set Off, the button will only change between the 2 last watched channels.
-
Page 23: Multimedia
our support or the ORF-support, please keep this information ready as it can help you and them to handle your request. 7.4 Multimedia In this menu you can decide whether to play movies, music or look at pictures. Use the pq buttons to select the appropriate menu, and then press ОK to switch to one of the submenus. -
Page 24: Update
7.5 Update In this menu you can update the receiver via USB or OTA (= Over The Air /download via satellite). Select the desired sub-menu using the pq buttons and press OK to continue. 7.5.1 USB Software Update This function allows you to perform a software update using a USB storage device. Download the appropriate software and update instructions from our website www.thomsonstb.net and unzip them to your correctly formatted USB storage device. -
Page 25: Ca Menu
you put the file back in the directory mentioned above („ORS-CCA-S2-MM_backup“). We recommend you to always keep the backup of the original files in order so you can restore them in case of possible errors. Confirm Recover database from USB device by pressing OK and confirm the displayed message with OK to execute. -
Page 26: Troubleshooting
Use pq or P+/P- to highlight the city of your choice and press OK to select it. You can also search manually for a desired place by pressing the GREEN Change City button. Use pq t u and OK to enter. -
Page 27: Technical Specifications
No access to scrambled Expired subscription. Check your current subscription status services in CA Menu> Product Status together with your broadcaster. ORF-DIGITAL-DIREKT not To enjoy the complete range of subscripted/activated. channles and to watch your preferred scrambled services, please register with the enclosed registration form at ORF- DIGITAL-DIREKT. - Page 28 Audio Decoder Audio decoding: MPEG Layer 1 & 2, Dolby Downmix Audio mode: Mono L/R, Stereo Audio support: Dolby Digital Plus* Transcoding for HDMI and S/PDIF: Dolby Digital Plus to Dolby Digital * Dolby Digital Plus, Dolby Digital and the double-D symbol are registered trademarks of Dolby Laboratories Tuner Connector: Type1 F Type, IEC169-24, Female...
