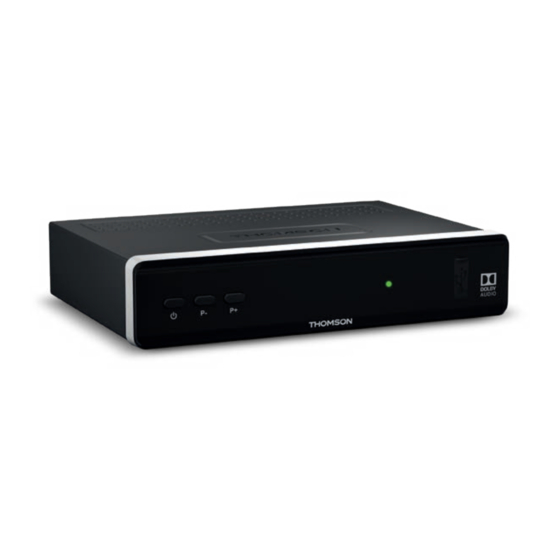

THOMSON THS814 User Manual

Receiver for aerial television in hd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Empfänger für
Antennenfernsehen in HD
THS814
Bedienungsanleitung
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THS814 and is the answer not in the manual?

Questions and answers

Related Manuals for THOMSON THS814

Summary of Contents for THOMSON THS814

  • Page 1 Empfänger für Antennenfernsehen in HD THS814 Bedienungsanleitung User Manual...
  • Page 2 Fig. 1a Fig. 1b Karteneinschub Fig. 2 MANUFACTURED UNDER LICENSE FROM MODEL DIGITAL HIGH DEFINITION SATELLITE RECEIVER THS814 DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN SAT IN...
  • Page 3 Koaxial- HDMI SCART Kabel Kabel Kabel MANUFACTURED UNDER LICENSE FROM MODEL DIGITAL HIGH DEFINITION SATELLITE RECEIVER THS814 DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN SAT IN 13/18 V...
  • Page 4 Dieses Produkt wurde unter der Zuständigkeit der STRONG Group hergestellt und verkauft. THOMSON und das THOMSON Logo sind Warenzeichen von Technicolor (S.A.) oder seinen Vertretern, welche unter lizenzierter Nutzung der STRONG Group geführt werden. Vertreten durch STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Wien, Österreich...
  • Page 5 EU, LVD 2014/35/EU and RoHS 2011/65/EU. This product has been manufactured and sold under the responsibility of STRONG Group. THOMSON and the THOMSON logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by STRONG Group. Any other product, service, company, trade name and logo referenced herein are neither endorsed nor sponsored by Technicolor (S.A.) or its affiliates.

  • Page 6: Table Of Contents

    TABLE OF CONTENT 1.0 1.INTRODUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Equipment Set-up 1.4 Accessories 1.5 Usage of external USB devices 2.0 YOUR RECEIVER 2.1 DEFAULT PIN-CODE: 0000 2.2 Front Panel 2.3 Side Panel 2.4 Rear Panel 2.5 Remote Control 2.6 Inserting the batteries 2.7 Using the remote control 3.0 CONNECTIONS...

  • Page 7: Introduction

    1.0 1.INTRODUCTION 1.1 Safety Instructions Read all of the instructions before operating the device. Keep these instructions well for later use. - Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.). - Please refer to the information on the product enclosure for electrical and safety information before installing or operating the apparatus.

  • Page 8: Storage

    - Do not attach candle to accessible opening area, to avoid flammable foreign material from entering the device. WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 9: Usage Of External Usb Devices

    The usage of other power adapters may cause damage to the device. Such damage is not covered under warranty. 1.5 Usage of external USB devices - It is recommended to use USB 2.0 or higher storage devices. If your device is not compatible to USB 2.0 specifications, multimedia functions or software update might not work properly.

  • Page 10: Inserting The Batteries

    2. ! Mutes audio output of the receiver in every mode incl. videotext, the symbol will not be shown within menu mode 3. 0~9 Channel selection or value input 4. TV/R Toggles between TV and RADIO mode 5.  No function 6.

  • Page 11: Connections

    3.0 CONNECTIONS 3.1 Basic connection to the TV Fig. 6 a) Connect the LNB of your satellite antenna to the SAT IN connector of your receiver using a good quality coaxial cable and suitable ‘F-connector' plugs. b) Connect one end of a good quality HDMI cable to the HDMI connector of your receiver and the other end to the HDMI input of your TV set.

  • Page 12: Antenna Setup

    5.0 QUICK GUIDE TO USING YOUR RECEIVER We at THOMSON understand that you can't wait to enjoy your new HD receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual on our website www.thomsonstb.net to get the best performance from your...

  • Page 13: Operation

    To open the channel and programme* information, you have to press the INFO button in viewing mode. In this state it is possible to use t u to display channel and programme information about other channels without switching channels. Press INFO twice to display detailed programme information about the current or next programme.

  • Page 14: Info Banner

    CH- or q will switch a lower channel. 6.1.4 Using the 9 button In order to quickly switch between your most preferred channels, use 9 to view the list of Recently watched channels. This list contains up to 30 of the most recently watched channels. As this list is temporary it will be recreated each time after you switch on your receiver.

  • Page 15: Epg (Electronic Programme Guide)

    NOTE: If you configure an HDMI resolution which isn't supported by your TV, there is no problem because if you press no button, the receiver will automatically switch back to the last used resolution after ~ 10 seconds. However, if you can see the displayed message, then confirm the selected resolution by pressing OK.
  • Page 16 7.1.1 Antenna Setup In this menu, you can change and adapt settings for the antenna(s) and their transponders. Use the t u buttons to change settings, and use pq to select an item, or press OK to list the settings. For the default setting of DiSEqC 1.0, you can set the parameters for up to 4 satellite positions Port 1-4.
  • Page 17 Go to position Press OK to move the motor to the centre position. This is only necessary for the first time to set the antenna correctly. Then you can also select a number of a position you already have stored or check the antenna position. USALS selection Configure the motor position by using the USALS function.

  • Page 18: Channels

    * Only available if more than one satellite has been setup. NOTE: Network Data/NIT Table (Network Identification Table): This function allows you to search the NIT data of the corresponding satellite to receive newly released channels. Please consider that in contrast to Astra 19.2 and HotBird 13.0 some satellites do not have this database respectively can only support it partly.
  • Page 19 For the Delete function you can mark as much channels as you like and will only be asked to accept the changes when leaving the menu through The Move functions allows you to move one or multiple channels. In the Program List, select the channel(s) you want to move with OK.

  • Page 20: Settings

    New PIN-Code: Use 0 ~ 9 to enter the new PIN-Code. Confirm new PIN: Press the 0~9 buttons to confirm your new PIN-Code. After confirming the new PIN-Code, the menu is closed, otherwise press to exit. NOTE: Parental Control only works on channels which support EPG or EPG based age restrictions, only then will you be prompted to enter your PIN-Code (DEFAULT PIN: 0000).
  • Page 21 format is adjusted so that it is reproduced completely and without distortion (there are black horizontal bars above and below the picture). When a TV with aspect ratio 16: 9 is connected, the optimum mode is 16: 9. A video in the 4: 3 format is reproduced with this setting without distortion (however, there are black vertical bars on the left and right of playback).

  • Page 22: Multimedia

    Enter the selected starting time with 0 ~ 9. Start Time: Enter the selected end of the recording with 0 ~ 9. End Time: Standby after timer: Set here whether the receiver should always be in standby after the timer has expired or whether it should always remain switched on.

  • Page 23: Update

    With the OTA (Over The Air) function, you can search for software updates via satellite. Ask your THOMSON dealer or visit our website www.thomsonstb.net for more information. Only in the case of an available update and appropriate handling the option will be available in the menu. It is possible that you can also receive an update request after starting up the receiver.

  • Page 24: Ca Menu

    7.6 CA Menu This menu contains all important and necessary information about the integrated encryption system. If there are problems with opening encrypted channels, these data can help the operator or the servicehotline with finding a solution or hint. 7.6.1 Product Status The product status shows the current status of entitlements by operator.
  • Page 25 THOMSON dealer. Alternatively, you can send a support mail via our website: www.thomsonstb.net. NEVER open or disassemble your receiver. This may cause a dangerous situation and will void the warranty. Symptom Cause Remedy...

  • Page 26: Technical Specifications

    9.0 TECHNICAL SPECIFICATIONS Demodulator Demodulation: QPSK, 8PSK, 16APSK (MSB1245 demodulator Chipset) Input symbol rate: 1 ~ 45 MBaud for DVB-S2 Inner code rate 1/2, 2/3, 3/4, 5/6, 7/8 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Video Decoder Aspect ratio:...
  • Page 27 Storage temperature: -10° C to +50° C Operating humidity range: 10 %-95 % RH, non-condensing Size (W x D x H) in mm: 170 x 128 x 39 Weight in kg: 0.35...
