Summary of Contents for THOMSON THS844

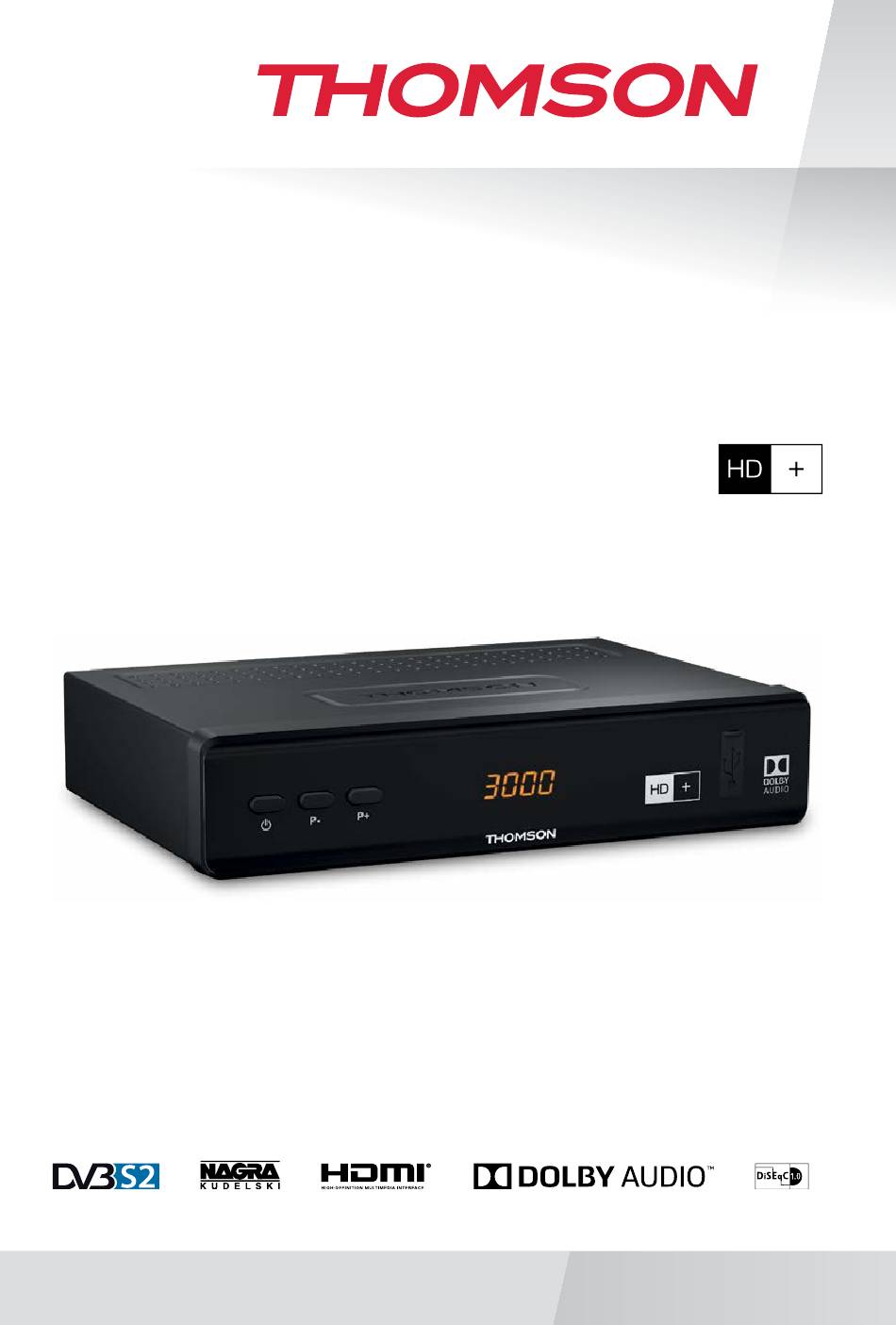

- Page 1 Digitaler HD+ Satelliten Receiver THS844 Bedienungsanleitung User Manual www.thomsonstb.net...
- Page 2 Fig. 1 Fig. 2 Fig. 3 CAUTION MANUFACTURED UNDER LICENSE FROM MODEL DIGITAL SATELLITE HD+ RECEIVER THS844 DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL RISK OF ELECTRIC SHOCK ARE TRADEMARKS OF DOLBY LABORATORIES DO NOT OPEN USB: 5 V, 800 mA max.
- Page 3 Fig. 7 Satellitenantenne Koaxialkabel Koaxialkabel CAUTION MANUFACTURED UNDER LICENSE FROM MODEL DIGITAL SATELLITE HD+ RECEIVER THS844 DOLBY LABORATORIES. DOLBY AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES RISK OF ELECTRIC SHOCK DO NOT OPEN USB: 5 V, 800 mA max.
- Page 4 Dieses Produkt wurde unter der Zuständigkeit der STRONG Group hergestellt und verkauft. THOMSON und das THOMSON Logo sind Warenzeichen von Technicolor (S.A.) oder seinen Vertretern, welche unter lizenzierter Nutzung der STRONG Group geführt werden. Vertreten durch STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Wien, Österreich...
- Page 5 STRONG declares that this item complies with the basic requirements and other relevant regulations of directives EMC 2014/30/EU, LVD 2014/35/EU and RoHS 2011/65/EU. THOMSON is a trademark of Technicolor (S.A.) or its affiliates used under license by STRONG Group. Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change.
-
Page 6: Table Of Contents
TABLE OF CONTENTS 1.0 INTRODUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Equipment Set-up 1.4 Accessories 1.5 Usage of external USB devices 2.0 YOUR RECEIVER 2.1 DEFAULT PIN-CODE: 0000 2.2 Front Panel 2.3 Side Panel 2.4 Rear Panel 2.5 Remote Control 2.6 Installing the batteries 2.7 Using the remote control 3.0 CONNECTIONS... -
Page 7: Introduction
1.0 INTRODUCTION 1.1 Safety Instructions Read all of the instructions before operating the device. Keep these instructions well for later use. - Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.). - Please refer to the information on the product enclosure for electrical and safety information before installing or operating the apparatus. -
Page 8: Storage
- Do not place candles near the opening area, to avoid flammable foreign material from entering the device., WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 9: Your Receiver
- If you are going to use external USB HDD (Hard Disk Drive) please consider that the power specifications might exceed the supported output of your receiver (5 V/800 mA). If so, please connect your USB HDD to an according external power adapter. - STRONG cannot guarantee compatibility with all types of USB storage devices. -
Page 10: Installing The Batteries
9. INFO Press to display channel number/name and current/coming information. Press twice to display detailed event information. 10. EPG Viewing mode: Displays the EPG (Electronic Program Guide) 11. pq Switches to the next/previous channel in viewing mode, switches to the next/previous page in channel list or moving the highlight up/ down in the menu 12. -
Page 11: Connections
3.0 CONNECTIONS This section explains the most important functions to ensure that you can directly watch television with your new receiver. Please note additional adjustments may be required. Note: Do not connect the receiver to the main power yet. 3.1 Connecting the Antenna and LNB (Low Noise Block) to the receiver Connect the LNB of your satellite antenna to the SAT IN connector of your receiver using a good quality coaxial cable and suitable ‘F-connector' plugs. -
Page 12: Starting Up For The First Time
4.0 STARTING UP FOR THE FIRST TIME Once you properly installed and connected all cables of the receiver, setup your receiver step by step by First Time Installation procedure. It will guide you through the basic installation and channel searching process. 4.1 Language selection Select your preferred language for the on-screen menu. -
Page 13: Quick Guide For Using Your Receiver
We at STRONG understand that you can't wait to enjoy your new HD+ receiver. However, we advise you to read this manual to get the best performance from your THOMSON HD+ receiver. To turn your receiver ON or to go to Standby mode, press q on the remote control. Choose channels with CH+/- or pq. -
Page 14: Volume Control
to search for the channel from the list in alphabetical order. In Group parameter define first letter of channel name. At right side on screen you will see only channels, which name starting from selected letter. to search for the channel within your favourite lists. to search for the channel by satellites, which channels were stored to receiver. -
Page 15: Selecting Audio Language
6.4 Selecting audio language Some channels support a choice of audio formats and/or languages. Press AUDIO in viewing mode to display a list of available audio languages. Use pq to highlight the language of choice and press OK to confirm. With t u you can additionally select audio mode of Stereo (for stereo sound), Mix (both speakers will produce same mixed from both channels sound) and Left or Right (both speakers will produce sound respectively from left or right sound channel). -
Page 16: Favourite Channels
6.8.1 Booking a programme from EPG Select a programme as described above. Press RED button. Selected programme will be booked. Next to the programme name the symbol will appear and the programme description will contain the text “Booked”. To cancel programme booking just press the RED button again. -
Page 17: Settings
2. You will be switched to the full Channel list (central column). Use the pq buttons to select a channel and OK to mark it for deletion. This will add it to your Selected list (right column). 3. If you do not want to delete any selected channels, you can remove them from the Selected list. - Page 18 If the language is not available, the default programme language will be used. 2nd Audio Language: The receiver will use this language if the first language selection is not available Subtitle Type: Choose your preferred subtitle type between Normal and Hard of hearing. Subtitle Display: Set to On to enable the display of subtitles, to disable set to Off.
- Page 19 HDMI Audio Output: Adjust this setting in accordance to the connected audio equipment. Set to Auto for the most common connections. Set the BitStream option to bypass original audio bitstream through HDMI to a connected audio equipment which can decode complex digital audio formats. Set the PCM option to convert complex digital audio formats supported by the receiver to STEREO audio and pass it to the HDMI output.
- Page 20 GMT Offset: Select the offset from GMT standard time. Set to Auto to adjust it automatically. Summer Time: Enable/disable the summer daylight saving time offset. Select On or Off depending on the season. The parameter can only be changed if GMT Offset is not set to Auto.
-
Page 21: Multimedia
Warning: - Do not take any action during the update procedure, if the receiver has not restarted yet or if an error message appears. - Do not disconnect the receiver from the mains nor switch off until the software update has been completed. 7.3 Network Use t u to access the menu Network, which includes the following submenus: RSS, Weather and Ethernet Config. -
Page 22: Installation
Satellite: Select a satellite to be configured and scanned. Press RED to scan the selected satellite signal. A window with the scan progess will be appear. LNB Power: Set the LNB power On or Off. LNB Type: Select the LNB type. The Universal LNB (09750/10600 MHz) is supported and is the most common on the market. - Page 23 Note: If the messages No list found or No channels found are displayed, please check the antenna connections, select correct satellite and check signal level and other parameters from the satellite dish for selected satellites, as described in chapter 7.5.1. Advanced channel search Satellite: Select a satellite to be configured and scanned.
-
Page 24: Troubleshooting
There may be various reasons for faulty operation of the receiver. Please check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact your local service line or THOMSON dealer. Alternatively you can send a support e-mail via our website: www.thomsonstb.net. -
Page 25: Specifications
Symptom Cause Remedy The external USB HDD does not The power consumption is too Connect an extra power start. high. supply adapter to your USB HDD device. The receiver switches to standby The Auto Standby function is Set the power down automatically. -
Page 26: Terms & Conditions Hd+ (In German)
General Data Power supply: AC 100 - 240 V 50/60 Hz Input voltage: DC 12 V, 1.5 A* Power consumption: max. 18 W, typ.6 W Power consumption in standby: max 1 W Operating temperature: 0 ~ +40 °C Storage temperature: -10 ~ +50 °C Operating humidity range: 10 ~ 85% RH, non-condensing... - Page 27 3.4. Rechtzeitig vor Ablauf der jeweiligen Freischaltung des HD+ Services wird der Nutzer durch eine Einblendung auf dem Wiedergabegerät auf Ablauf und eventuell mögliche Verlängerungs- bzw. Neukaufoptionen für die Nutzung des HD+ Services aufmerksam gemacht. Die Freischaltung einer HD+ Karte sollte erst nach Einblendung auf dem Wiedergabegerät verlängert werden.
- Page 28 9.4. HDP ist nicht verantwortlich für die von ihr entschlüsselten zugänglich gemachten Programmangebote und deren Inhalte. 9.5. Eine gesetzlich vorgeschriebene, verschuldensunabhängige Haftung von HDP, insbesondere eine Haftung nach Produkthaftungsgesetz sowie eine gesetzliche Garantiehaftung, bleibt von den vorstehenden Haftungseinschränkungen unberührt. Gleiches gilt für die Haftung von HDP bei schuldhafter Verletzung von Leben, Körper oder Gesundheit eines Nutzers.
