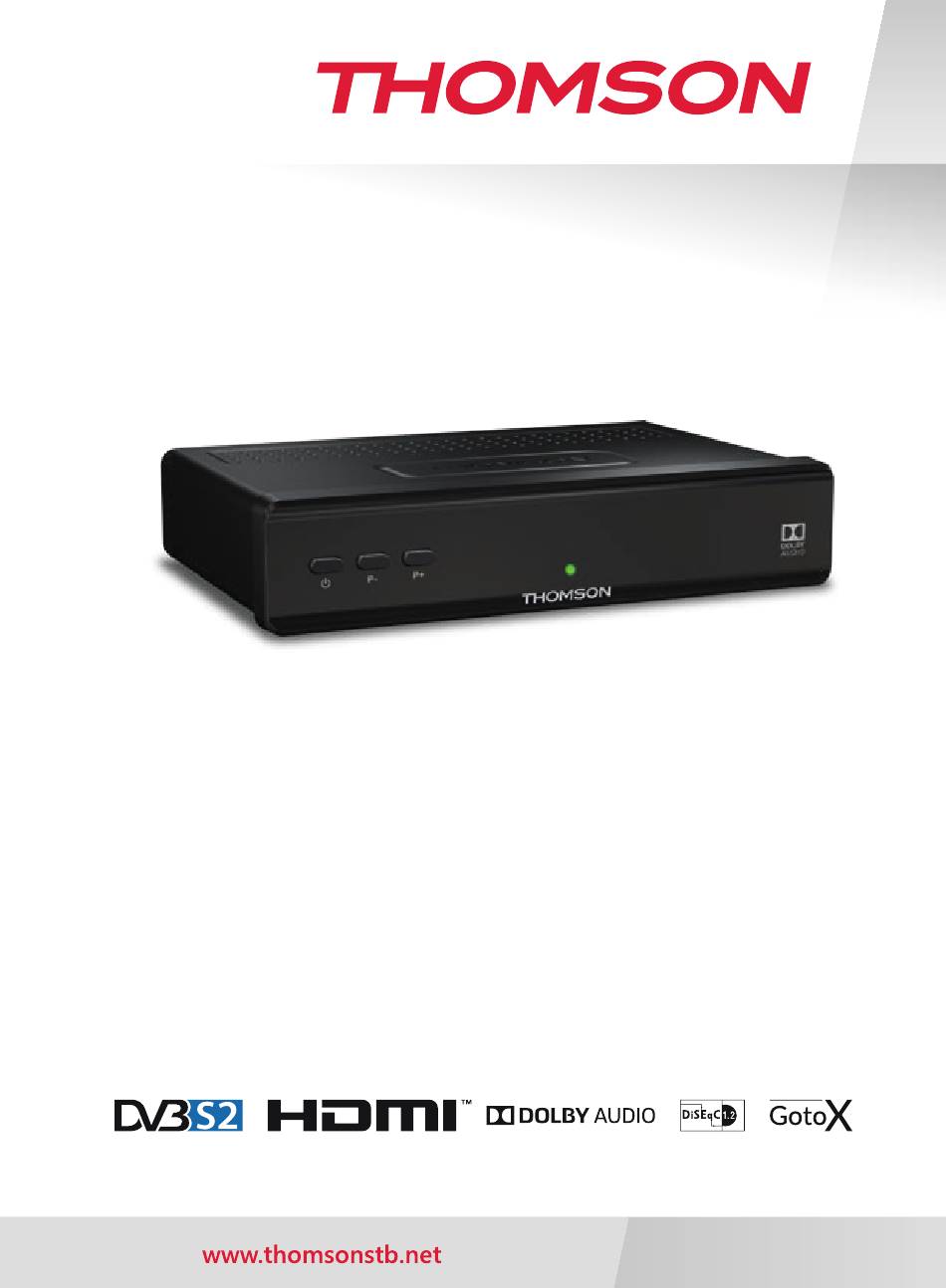

- Page 1 Digital HD Satellite Receiver THS210 User Manual Používateľská príručka Inhaltsverzeichnis Instrukcja obsługi Table des matières Upute za korištenje Indice Felhasználói kézikönyv Índice Kullanıcı Kılavuzu Manual do Utilizador Руководство пользователя Uživatelská příručka Посібник користувача...
- Page 2 Fig. 1 Fig. 2 CAUTION MODEL DIGITAL HD SATELLITE RECEIVER THS210 MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AUDIO AND THE DOUBLE-D SYMBOL RISK OF ELECTRIC SHOCK ARE TRADEMARKS OF DOLBY LABORATORIES. DO NOT OPEN 13/18 V 500 mA max.
- Page 3 SCART HDMI Cable Cable (optional) CAUTION MODEL DIGITAL HD SATELLITE RECEIVER THS210 MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY AUDIO AND THE DOUBLE-D SYMBOL RISK OF ELECTRIC SHOCK ARE TRADEMARKS OF DOLBY LABORATORIES. DO NOT OPEN 13/18 V 500 mA max.
- Page 4 This product has been manufactured and sold under the responsibility of STRONG Group. THOMSON and the THOMSON logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by STRONG Group. Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna, Austria Email: support_at@thomsonstb.net...
- Page 5 This product has been manufactured and sold under the responsibility of STRONG Group. THOMSON and the THOMSON logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by STRONG Group. Any other product, service, company, trade name and logo referenced herein are neither endorsed nor sponsored by Technicolor (S.A.) or its affiliates.
-
Page 6: Table Of Contents
TABLE OF CONTENT 1.0 INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Equipment Set-up 1.4 Accessories 1.5 Usage of external USB devices 2.0 YOUR RECEIVER 2.1 PIN code default: 0000 2.2 Front and side panel 2.3 Rear panel 2.4 Remote Control 2.5 Installing the batteries 2.6 Using the remote control 3.0 CONNECTIONS... -
Page 7: Instruction
1.0 INSTRUCTION 1.1 Safety Instructions Read all of the instructions before operating the device. Keep these instructions well for later use. - Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.). - Please refer to the information on the product enclosure for electrical and safety information before installing or operating the apparatus. -
Page 8: Storage
Precautions - Never try to open the device. It is dangerous to touch the inside of the device due to high voltages and possible electrical hazards. Opening the device will void the warranty of the product. Refer all maintenance or servicing to suitably qualified personnel. - When you are connecting cables, be sure that the device is disconnected from the mains supply voltage. -
Page 9: Accessories
NOTE Indicates any other additional important or helpful information. MENU Represents a button on the remote control or the receiver. (Bold characters) Represents a menu item within a window. (Italic characters) Move to 1.4 Accessories - 1x installation instructions - 1x remote control - 2x batteries (AAA type) - 1x power adapter 12 V DC, 1.5 A NOTE:... -
Page 10: Your Receiver
- Playback of files cannot be guaranteed although extensions are listed, as it depends on codec, data bit rate and resolution used (all MPEG codec formats are supported). - Please ensure that either the USB device is already formatted to FAT/FAT32, or format the USB device via your receiver, refer to chapter <USB>... - Page 11 No function To access your favourite channels. Toggles between available favourite groups To switch between the last viewed channels AUDIO Displays the audio selection menu with selections for available languages and audio modes INFO Press once to display channel number/name and current/ coming information.
-
Page 12: Installing The Batteries
32. RED Flexible functions in OSD menu and Teletext. 33. GREEN Flexible functions in OSD menu and Teletext. Changes the picture resolution in viewing mode. 34. YELLOW Flexible functions in OSD menu and Teletext. Changes the picture Aspect Ratio in viewing mode. 35. -
Page 13: Basic Connection Using A Scart Cable
3.2 Basic connection using a Scart cable Fig. 6 a) Connect the LNB of your satellite antenna to the SAT IN connector of your receiver using a good quality coax cable and suitable ‘F-connector’ plugs. b) Connect one end of a good quality Scart cable to the TV SCART connector on your receiver and the other end to the SCART input of your TV. -
Page 14: Dish Setup
the OSD Language of your preference. Set the other options as are appropriate for your situation. HDMI output is always available.TV format with HDMI connection is 16:9 Wide screen. NOTE If Germany or Italy is selected as country, a pre-installed channel list is available. -
Page 15: Quick Guide For Using Your Receiver
We do, however, advice you to read the full manual to get the best performance from your THOMSON HD receiver. To turn your receiver ON or to Standby, press q on the remote control. -
Page 16: Info Banner
q will switch a lower channel. 6.1.4 Using the 9 button Use the 9 button for switching between the last 8 viewed channels. Please refer to section 7.6 for more details. 6.2 Info Banner At any time during viewing mode you can press the INFO button to get information about the current channel as well as the current and following programme*. -
Page 17: Epg (Electronic Programme Guide)
resolution will fall-back to previous state within 1 0seconds. Please refer to section 7.2 for more details. 6.8 EPG (Electronic Programme Guide) The Electronic Programme Guide is a very useful function that allows you to watch programme schedules and information on screen. Press the EPG button to activate this guide (you can also enter EPG via the menu too). - Page 18 Highlight the preferred programme, then press the FAV button. A Favourite Type window will pop up on screen. The following groups are available: News, Sport, Music and Movie1, Movie2, Movie3, Movie4. Please select one (or more) of them. A star shaped symbol will appear and the programme is marked as a favourite. Press ...
-
Page 19: Picture
Select the programme you want to lock, then press the YELLOW button. The programme is now marked as locked. Repeat the previous step to select more programmes To confirm and exit the menu, press . To view the locked programme, you need to enter either the default password '0000' or your last set password. -
Page 20: Channel Search
For 16:9 TV screens. The unit will display all content in its original aspect 16:9 Pillarbox ratio. Programmes formatted in 4:3 will be presented with black bars on the left and right. For 4:3 TV screens. The unit will display all content in its original aspect 4:3 Letterbox ratio. - Page 21 7.3.1 Installation 7.3.1.1 Dish setup Use p/q to highlight the satellite your dish is aimed at. Its antenna settings will be shown at the right side. You can enter the right side with the tu buttons and return to the satellite list with .
- Page 22 DiSEqC 1.3 DiSEqC 1.3 (also known as GotoX) is an automated system for finding satellites with a motor driven dish. It is an enhancement of the DiSEqC 1.2 protocol, where it was still needed to manually search and store every satellite individually. With DiSEqC 1.3 every satellite position is automatically calculated for a defined geographical location on earth.
- Page 23 Slow scan in 2 MHz steps. The receiver will first scan the whole frequency Blind Scan: band to find the transponders it can lock on. After gathering all transponders, it scans the transponders one by one to get all available programmes.
- Page 24 Press OK to enter text input mode. In the key table select a Satellite Name: character by using the navigation buttons. Press OK to enter the chosen character. When you have entered the name, navigate to the “OK” button on screen and press OK on the remote control to confirm the new name.
-
Page 25: Time And Date Settings
7.3.2.2 Backup to USB Press OK to make a backup of the data base. A DBM file „HB_DATABASE_DDMM.DBM” with the current date (day and month), will be created on the USB device. When the DB has been successfully stored a message will be displayed on screen. Press until the OSD menu disappears. -
Page 26: System Settings
NOTE: If there are timers running, the auto standby function will be disabled for the booked time. Enter to the timer (schedule) function. Please refer to section 7.4.2 Timer for details. Select On or Off depending on the year’s period. Daylight Saving Time 7.4.1 Timer (Schedule) In this menu you can setup the schedule for automatic switching to the defined channels at a... - Page 27 Press p/q to select an option and press tu to adjust the setting. Press to exit the menu. Some menu items can only be entered by entering the password. Default is 0000. Set the age limit for a viewer, if the viewer is underage. This only Parental guidance functions if a broadcaster sends an age-signalling for the current programme.
-
Page 28: Usb
7.7 USB Press MENU and select USB. The menu provides the Multimedia feature for playback of Music, Photo and Movie. The different file formats listed below are supported. In this menu you can make movie and photo configurations and format the USB device into a format accepted by the receiver. - Page 29 Goes to the parent folder. To get back to the Multimedia menu. Press once more if you want to : leave the Multimedia menu. Playback of music will continue as long as the Multimedia menu is active. This allows you to listen to music while watching photos. Just exit the Music submenu and select a slide mode in the Photo submenu like explained below.
- Page 30 7.7.2 Photo Configure You can adjust the slide show interval to 1~8 seconds. Slide Time: You can select one of the 60 slide show effects or Random (mixed Slide Mode: effects). Keep - displays the picture as its original aspect Aspect Ratio: Discard - displays the picture in full screen mode.
- Page 31 pressing the OK button. The event data will be applied and you only need to press the p/q buttons to select Mode and tu to Record. If needed, the parameters for the timer can be changed as well. Press p/q, tu and use 0-9 to do so. From the EPG channel list view you can open the Book list with the INFO button, which allows you to open a list of all booked timers.
-
Page 32: Troubleshooting
If the receiver does not work properly after checking it, please contact your local Service line or THOMSON dealer. Alternatively, you can send a support mail via our website: www.thomsonstb.net. NEVER open or disassemble your receiver. -
Page 33: Specifications
PROBLEM POSSIBLE CAUSE WHAT TO DO Scrambled channel The channel is scrambled. Select an alternative channel. message No response to remote The receiver is off. Plug in and turn on the plug. control The handset is not aimed Aim the handset at the IR correctly. - Page 34 Aspect ratio: 16:9 widescreen, Pillarbox, 4:3 Pan&Scan, Letterbox Video resolution: PAL 50Hz: 576i, 576p, 720p, 1080i, 1080p NTSC 60Hz: 480i, 480p, 720p, 1080i,1080p Audio Decoder Audio decoding: MPEG Layer 1 & 2, AC3, Dolby Digital Down mix, Audio mode: Mono L/R, Stereo Audio Support: E-AC3, Dolby Digital, Dolby Digital Plus* Sampling rate:...
- Page 35 General Data Power supply: AC 100 – 240 V ~ 50/60 Hz Input voltage: DC 12 V 1.5 A Power consumption: max. 18 W, typ. 5 W Power consumption in standby: max. 0.5 W Operating temperature: 0 ~ +40 °C Storage temperature: -10 ~ +50 °C Operating humidity range:...
