Chapter 4: System Setup

Installing a SO-DIMM

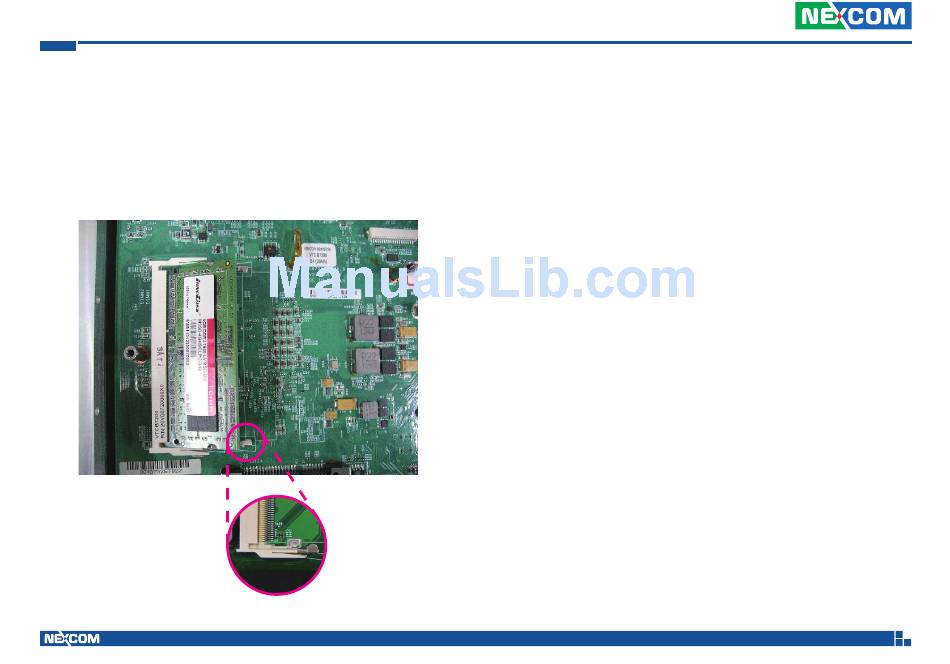

1. Push the ejector tabs which are at the ends of the socket outward. Then
insert the module into the socket at an approximately 30 degrees angle.
Apply firm even pressure to each end of the module until it slips down
into the socket. The contact fingers on the edge of the module will almost
completely disappear inside the socket.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Ejector tab
