Chapter 2: External Connectors Pinout Description

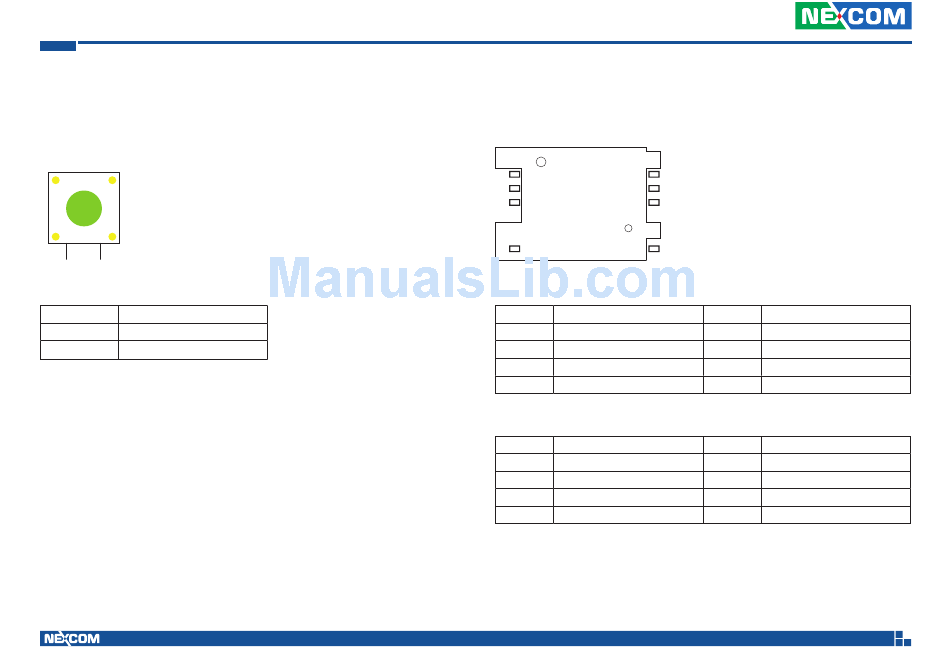

Reset

Connector Number: 3
1 2
Pin Definition
1 GND
2 RESET
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.

SIM1 and SIM2 Sockets For CN23 and CN21

Connector Number: 4
C5
C6
C7
SW SW
SIM 1
Pin Definition
C1 SIM PWR
C2 SIM RST
C3 SIM CLK
SW1 NC
SIM 2
Pin Definition
C1 SIM PWR
C2 SIM RST
C3 SIM CLK
SW1 NC
7
C1
C2
C3
Pin Definition
C5 GND
C6 NC
C7 SIM DAT
SW2 NC
Pin Definition
C5 GND
C6 NC
C7 SIM DAT
SW2 NC
