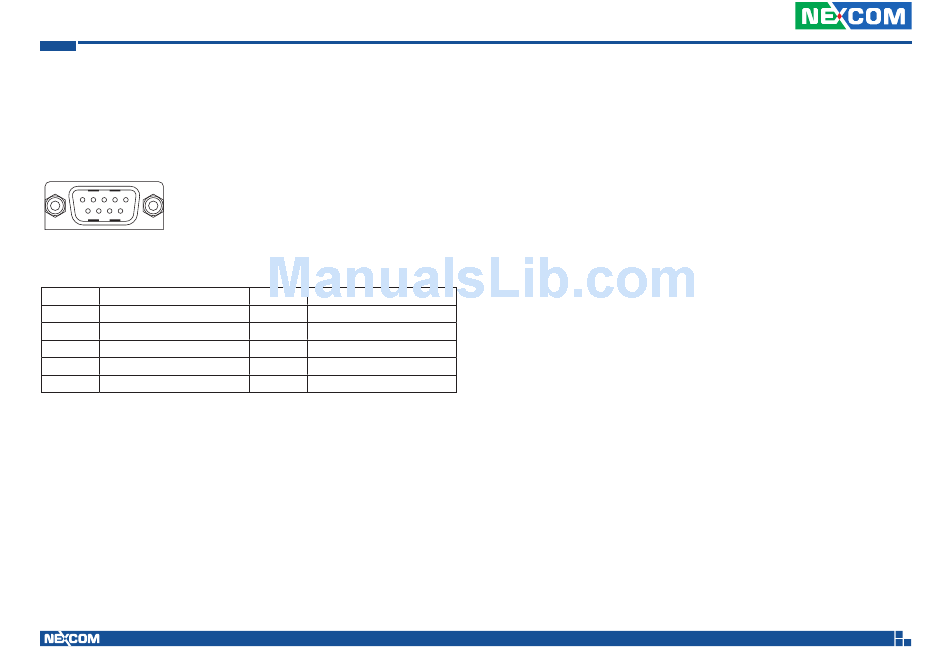

Chapter 2: External Connectors Pinout Description
MCU-DIO
Connector Number: 21
1
5
6
9
Pin
Definition
1
NC
3
MCU-DO2
5
GND
7
NC
9
MCU-DI2
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
NC
4
MCU-DO1
6
NC
8
MCU-DI1
16
VTC 7200-BK Series User Manual
