Planet ICA-M3380P User Manual

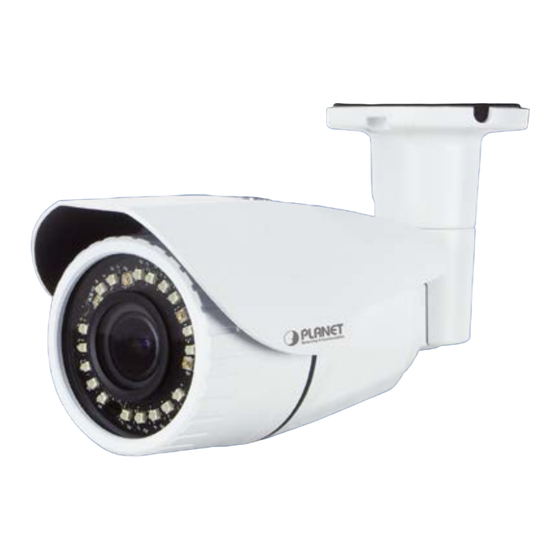

H.265 3 mega-pixel bullet ir ip camera with remote focus and zoom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H.265 3 Mega-pixel Bullet IR IP
Camera with Remote Focus
and Zoom
ICA-M3380P

Advertisement

Table of Contents
loading

Related Manuals for Planet ICA-M3380P

Summary of Contents for Planet ICA-M3380P

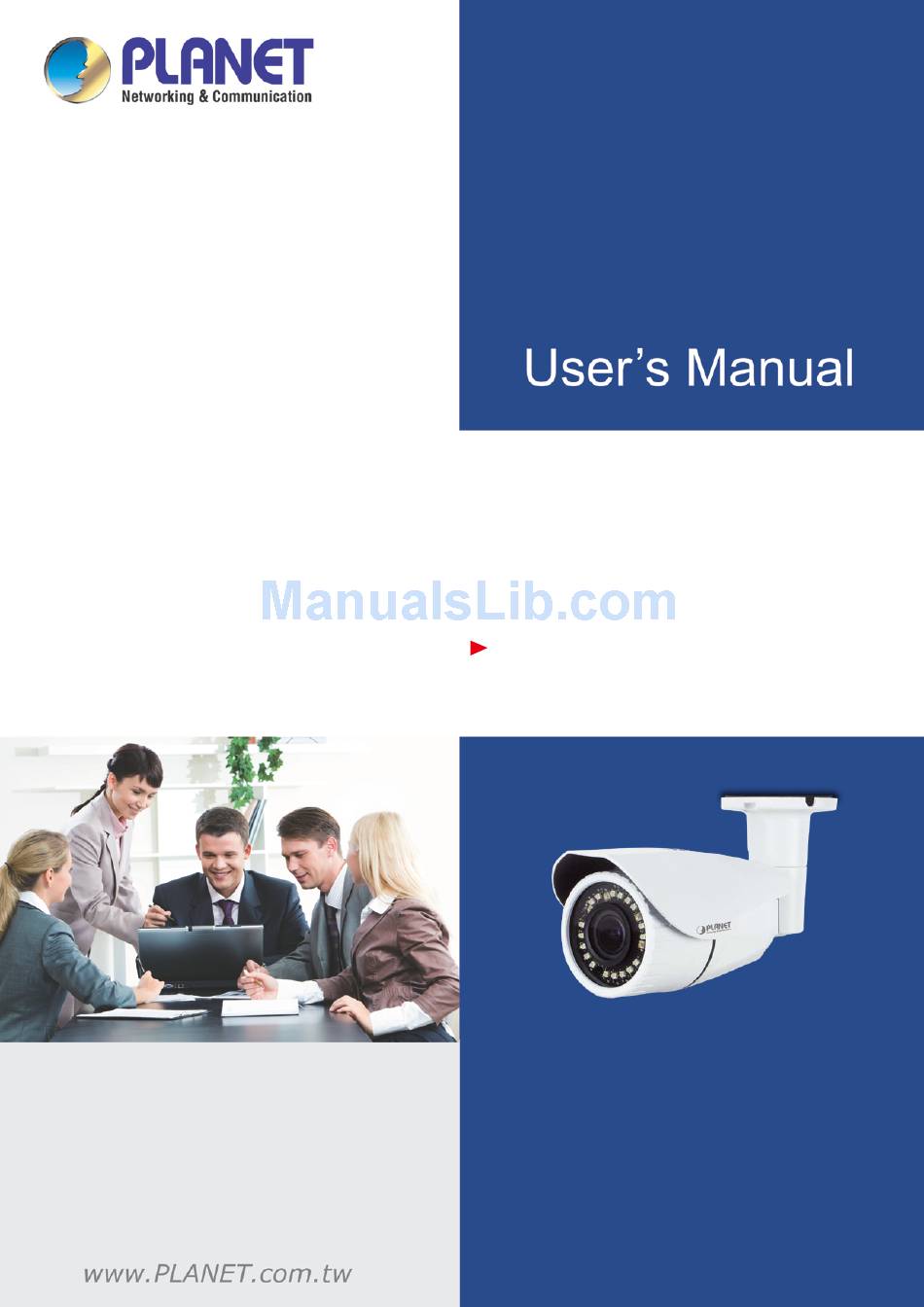

  • Page 1 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P...
  • Page 2 ICA-M3380P Copyright Copyright  2016 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual of PLANET H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom Model: ICA-M3380P Rev: 1.00 (July, 2016)

  • Page 4: Table Of Contents

    Hardware Installation ....................18 Initial Utility Installation .................... 19 Preparation ......................22 2.4.1 Search and View by PLANET IP Wizard II ........... 22 2.4.2 Configuring Network by PLANET IP Wizard II ........24 Using UPnP of Windows XP or 7 ................26 2.5.1...
  • Page 5 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.5.5 PPPoE ....................48 3.5.6 Streaming ....................49 3.5.7 UPnP ..................... 50 3.5.8 Bonjour ....................51 3.5.9 IP Filter ....................52 3.5.10 Notification .................... 53 3.5.11 CoS ....................... 54 3.5.12...
  • Page 6 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.15.1 SAMBA server ..................86 3.15.2 iSCSI ..................... 86 3.16 Continuous Recording Configuration ..............87 3.17 Continuous Recording List ..................88 3.18 Event Server Configuration ..................89 3.18.1...

  • Page 7: Chapter 1. Product Introduction

    1.2 Overview Higher Efficiency Surveillance Video PLANET ICA-M3380P PoE IP Camera delivers excellent picture quality in H.265 3 mega-pixel resolutions at 30 frames per second (fps). Users will benefit from reduced 50% bandwidth and data storage through more efficient video compression.
  • Page 8 High Efficiency Video Compression The ICA-M3380P employs the H.265 technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 50% of bandwidth, meaning H.265 offers much higher quality video for less bandwidth.
  • Page 9 Advanced Media Management The ICA-M3380P supports a number of advanced features to enhance surveillance flexibility...
  • Page 10 ICA-M3380P, adopting the IEEE 802.3af standard, does not need extra power cables and manpower, thus reducing installation costs while increasing deployment flexibility and scalability. The ICA-M3380P is ONVIF compliant and interoperable with other brands in the market. The ICA-M3380P is indisputably the ideal choice for reliable and high-performance surveillance.

  • Page 11: Features

    Two-way audio support with enhanced audio quality  Network and Configuration  Compliant with IEEE 802.3af PoE interface for flexible deployment  RTSP, FTP and PLANET DDNS protocols selectable  Easy Installation and Management  ONVIF compliant for interoperability ...

  • Page 12: Product Specifications

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 1.4 Product Specifications Model ICA-M3380P Camera Image Device 1/2.8" 3 mega-pixel Sony Exmor progressive scan CMOS sensor Vari-focal 2.8~12mm, P-Iris Optical Zoom: 4x Lens Angle of view:...
  • Page 13 IEEE 802.3u 100BASE-TX IEEE 802.3af Power over Ethernet IPv4, Ipv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, Protocol PLANET DDNS, DHCP, Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, Samba, SNMP, QoS, IEEE 802.1x Password protection, IP address filtering, HTTPS encrypted data Security...

  • Page 14: Chapter 2. Hardware Interface

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Chapter 2. Hardware Interface 2.1 Physical Descriptions 2.1.1 Identification of ICA-M3380P Physical Details Item Description Lens Keep the lens clean for an excellent video quality. IR LED...

  • Page 15: I/O Control Instruction

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 2.1.2 I/O Control Instruction Description of I/O Cabling: Interface Description  5V out: This is used to support DI/DO devices. The maximum output power is 5VDC/50mA. Terminal block ...
  • Page 16 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Interface Description alert and two-way audio. The input power is 12V DC, 1A. DC Connector (The power adapter is not included in the package)  Connecting to PC or Hub/PoE Switch Connect the onboard LAN port to your local area network via Ethernet cable.
  • Page 17 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Interface Description 2. Press the button for 5 seconds to enable the camera to adjust the focus automatically. Terminal Block for I/O Connectors: Name Function 5V/out DC 5V output (50mA maximum)

  • Page 18: Hardware Installation

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P The low voltage/current circuits and high voltage/current circuits are in the network camera circuit. Only a qualified electrician should do the wiring not by yourself. Incorrect wiring could damage the network camera and you might get a fatal electric shock.

  • Page 19: Initial Utility Installation

    1. Go to PLANET website and download the search tool: http://www.planet.com.tw/en/product/images/48885/UT-PLANET_IPWizardII_v3.0.0.7974. 2. Unzip and install the PLANET IP Wizard II, and a dialog box will appear as shown below: 3. The “Welcome to the Install Shield Wizard for PLANET IP Wizard II” prompt will display on...
  • Page 20 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 4. Please click “Next” to install with original settings, or you may click the “Browse…” button to modify the install folder and then press “Next” to continue.
  • Page 21 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Please click “Finish” to complete the installation and launch program immediately.

  • Page 22: Preparation

    When you install the Internet Camera in a LAN environment, you have two easy ways to search your cameras either by PLANET IP Wizard II or UPnP discovery. Here is the way to execute PLANET IP Wizard II to discover camera’s IP address and set up related parameter in a camera.
  • Page 23 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P When launching the Planet IP Wizard II, the “searching” window will pop up. Planet IP Wizard II is starting to search Internet cameras on the LAN. The existing devices are listed below.

  • Page 24: Configuring Network By Planet Ip Wizard Ii

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 2.4.2 Configuring Network by PLANET IP Wizard II In case you want to change the IP related parameters of wired interface, please select the Internet camera you want to configure and click the LAN button. Related settings will be carried out as shown below.
  • Page 25 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P If you like to change password of the device, just click the check button. Then, the related fields will show up as shown below. After keying in the new password, click the “Submit” button to perform your setting accordingly.

  • Page 26: Using Upnp Of Windows Xp Or 7

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 2.5 Using UPnP of Windows XP or 7 2.5.1 Windows XP UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device.
  • Page 27 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P The “Add or Remove Programs” will display on the screen and click Add/Remove Widows Components to continue. The following screen will appear; select “Networking Services” and click “Details” to...
  • Page 28 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P The “Networking Services” will display on the screen; select “Universal Plug and Play” and click “OK” to continue. Please click “Next” to continue.
  • Page 29 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P The program will start installing the UPnP automatically. You will see the pop-up screen below. Please wait while Setup configures the components. Please click “Finish” to complete the UPnP installation.

  • Page 30: Windows 7

    UPnP icon with Internet Camera to view your device in an Internet browser. PLANET IP Camera 2.5.2 Windows 7 Go to Start > Control Panel > Network and Internet > Network and Sharing Center, if network discovery is off;...
  • Page 31 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P...

  • Page 32: Setup Activex To Use The Internet Camera

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 2.6 Setup ActiveX to use the Internet Camera The Internet Camera web pages communicate with the Internet camera using an ActiveX control. The ActiveX control must be downloaded from the Internet camera and installed on your PC.

  • Page 33: Internet Explorer 7 For Windows Xp

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 2.6.2 Internet Explorer 7 for Windows XP From your IE browser  ”Tools”  ”Internet Options…”  ”Security” ”Custom Level…”, please set up your “Settings” as follows: Set the first 3 items •...
  • Page 34 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P From your IE browser  ”Tools”  ”Internet Options…”  ”Security”  ”Trusted Sites” ”Custom Level…”, please set up your “Settings” as follows: • Enable “Automatic prompting for ActiveX controls”...

  • Page 35: Web-Based Management

    Start the web browser on the computer and type the IP address of the camera. The Default IP: “http://192.168.0.20“ The login window of Internet camera will appear. Default login username and password are both admin. If the password has been changed with PLANET IP Wizard II, please enter the new password.
  • Page 36 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P After logging in, you will see the following message at the top of Internet Explorer: If user using IE browser 11, the message might not show. Please click the Tools button...
  • Page 37 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Click the Add button to add camera webpage as a compatible website.
  • Page 38 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P After a successful addition, camera’s IP address should be set as compatible view website. Click on the message, and click Run Add-on...
  • Page 39 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P When you see this message, click Run to install the required ActiveX control. After the ActiveX control has been installed and run, the first image will be displayed.

  • Page 40: Live View

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.3 Live View Start-up screen will be as follows whether you are an ordinary user or an administrator. Video Profile ActiveX Control Streaming Protocol Language Image Monitoring Section...

  • Page 41: Activex Control

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P ActiveX Control The plug-in ActiveX control supports a lot of functions by clicking the left mouse button. Note that this feature only supports on the ActiveX control within Microsoft® Internet Explorer.

  • Page 42: Digital Zoom

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.4.1 Digital Zoom Click Digital Zoom to activate this function shown below. User can drag or scale the box over the video to adjust zoom ratio and position.

  • Page 43: Record

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.4.3 Record Click Record to activate this function. Press the Record button to start recording. The video file is saved as ASF format onto your local PC. If you want to stop it, press Stop to stop recording.

  • Page 44: About

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.4.5 About Click “About” to show the ActiveX information 3.5 Network Configuration Use this menu to configure the network to connect the device and the clients. 3.5.1 Network This section provides the menu of connecting the device through Ethernet cable.
  • Page 45 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P address within limited tries, the device will assign a default IP address for 192.168.0.20. If you do not select “Obtain an IP address automatically”, then you need to enter these network parameters by yourself.

  • Page 46: Ipv6

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P to add the port number in the back of IP address. For example, http://192.168.0.20:8080. Therefore, the user can access the device by either http://xx.xx.xx.xx/, or http://xx.xx.xx.xx:xxxx/ to access the device.

  • Page 47: Ddns Server

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P adequate cipher suites are used and that the server certificate is verified and trusted. To enable or disable the HTTPS service here. Note that the HTTPS HTTPS function of this device not only encrypts the web content but also audio/video data.

  • Page 48: Pppoe

    The user name is used to log into DDNS. User Name Password The password is used to log into DDNS. This model comes with Planet easy DDNS. When this function is enabled, DDNS hostname will appear automatically. User doesn’t go to www.planetddns.com to apply for a new account.

  • Page 49: Streaming

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P program the PPPoE information first, and then connect to the xDSL modem. Power it on again to enable device dial on to the ISP for connecting to the WAN through the xDSL modem.

  • Page 50: Upnp

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Choose the RTSP port. The RTSP protocol allows a connecting client to RTSP Port start a video stream. Enter the RTSP port number to use. The default value is 554.

  • Page 51: Bonjour

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P from the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the device.

  • Page 52: Ip Filter

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Bonjour To enable or disable the Bonjour service here. Friendly Name Shows the friendly name of this device here. 3.5.9 IP Filter You can enter different user’s IP addresses by entering allow or deny.

  • Page 53: Notification

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.5.10 Notification In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled. If this function is enabled, the “Send to“ and “Subject” field SMTP Notification (e-mail) need to be filled out.

  • Page 54: Cos

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P If this function is enabled, the fields below need to be filled HTTP Notification out. Type the server name or the IP address of the HTTP server Type the user name for the HTTP server.

  • Page 55: Qos

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P VLAN ID Enter the ID of the VLAN to which CoS packets are directed. Value from 0 (lowest priority) through 7 (highest priority) that Live Video specifies the CoS priority value for steaming video data.
  • Page 56 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P The standardized DiffServ field of the packet is marked with a value so that the packet receives a particular forwarding treatment or PHB, at each network node.

  • Page 57: Ieee 802.1X

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.5.13 IEEE 802.1X IEEE 802.1X is an IEEE Standard for port-based Network Access Control. It is part of the IEEE 802.1 group of networking protocols. It provides an authentication mechanism for devices to connect to a LAN, either establishing a connection or preventing the connection if authentication fails.

  • Page 58: Picture

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.6.1 Picture Turn the “Mirror” and “Vertical Flip” on or off. The image will be overturned as shown below. Rotation 0/90 The function allows you to get a vertically oriented video stream from the degrees camera.
  • Page 59 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Auto: will adjust the white balance automatically. White Balance Hold: will hold the white balance. Color Level Large value will be colorful. Change the value by color tuning.
  • Page 60 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Night Mode Threshold (0~10000): This value sets the threshold to turn on IR LED. It should be lower or equal to Day Mode Threshold. Day Mode Threshold (0~10000): This value sets the threshold to turn off IR LED.

  • Page 61: Exposure Control

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.6.2 Exposure Control Power Frequency Frequency of power line: 50 or 60Hz. Auto: It will adjust the image sensor exposure automatically as possible. Exposure Control Hold: The current exposure value will be fixed.

  • Page 62: Privacy Mask

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.6.3 Privacy Mask Use this page to specify privacy mask window 1 to window 7 and set the name and gray level for selected window. To add or delete the privacy mask windows, user can specify up to 7 windows to mask the video captured by this device.

  • Page 63: Focus

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.7 Focus Use this menu to set the focus of camera. Lock AF If the function is enabled, the current focus of camera is fixed. Auto Focus Click this button to activate push AF.

  • Page 64: System Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.8 System Configuration Use this menu to perform the principal settings of Internet Camera. 3.8.1 System You can enter the name of this unit here. It’s very useful to identify the Device Title specific device from multiple units.

  • Page 65: Date And Time

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.8.2 Date & Time User can set up the time setting of Internet camera. Synchronize it with PC or remote NTP server. Also, you may select the correct time zone of your country.

  • Page 66: Maintenance

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Select an interval between 1 and 23 hours at which you want to NTP Sync. Interval adjust the device’s time referring to NTP server. Set the time difference from Greenwich Mean Time in the area Time Zone where the device is installed.
  • Page 67 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Recall the device hard factory default settings. Note Default Settings (Including the that clicking this button will reset all devices’ network setting) parameters to the factory settings (including the IP address).
  • Page 68 9. Please wait for 80 seconds, and then you can use PLANET IPWizard II to search the device again. Warning!!! The downloading firmware procedure cannot be interrupted. If the power and/or network connection are/is broken during the download procedure, it might possibly cause serious damage to the device.

  • Page 69: Video Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9 Video Configuration 3.9.1 Common There are some important information that can be embedded into Text Overlay Setting image, including date, time, and/or text.

  • Page 70: Overlay Image

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9.2 Overlay Image User can upload bitmap file to the camera and overlay the picture on streaming video and set its attributes. There are two options: “Image Overlay Setting” or “User Defined Upload Own Image Text”.

  • Page 71: Video Profile

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9.3 Video Profile User can modify the detailed parameter for each video profile on this page. Name To assign a name to the selected profile. Video Type Video codec of the selected profile.
  • Page 72 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P However, the bitrate can be limited to the max. Bitrate while there are lots of motions in video. Defines the targeted frame rate of this profile. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames Max.

  • Page 73: Onvif Profile

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9.4 ONVIF Profile ONVIF protocol defines profile of video streams. In case, the NVR, CMS and/or VMS connect to this device via ONVIF protocol. Use this page to define parameters of video streams.
  • Page 74 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P every 30 frames. It is recommended set the value the same as Max. Frame Rate. Audio Enable or disable the audio function. IP address and port for multicast video streaming of the selected Multicast Video profile.

  • Page 75: Roi

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9.5 ROI ROI means Region of Interest. Use this page to specify location and size of ROI windows. Only the maximum resolution profiles can be defined as ROI. In this model, user can define maximum three ROI windows.

  • Page 76: Aoi

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9.6 AOI AOI means Area of Interest. Use this page to specify location and size of AOI windows. Only the profiles with H.264 codec and VBR rate control can support AOI function. It enables a non-uniform distribution of the image quality between a selected region (the AOI) and the rest of the image (background).

  • Page 77: Pixel Counter

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.9.7 Pixel Counter The pixel counter shows the number of pixels in an area of the image. The pixel counter is useful in situations where there is a requirement that the image is a certain size, for example in face recognition.

  • Page 78: Alarm Voice

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Audio To enable or disable audio function. Audio Type To select G711 or G726 for audio coding. To select Simplex or Full duplex (2-way audio) mode. Audio Mode To adjust gain of input audio.

  • Page 79: User Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.11 User Configuration Use this menu to set the user names and password of the Administrator and up to 10 users, and access right of each user.

  • Page 80: Protocol Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.12 Protocol Configuration 3.12.1 ONVIF ONVIF is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products. In other words, it creates a standard for how IP products within video surveillance and other physical security areas can communicate with each other.

  • Page 81: E-Mail Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P SNMP version 1 (SNMPv1) is the initial implementation of the SNMP protocol. SNMPv1 operates over protocols such as User Datagram Protocol (UDP), Internet Protocol (IP), OSI Connectionless Network Service (CLNS), AppleTalk Datagram-Delivery Protocol (DDP), and Novell Internet Packet Exchange (IPX).

  • Page 82: Event Detection Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P SMTP Port Set port number of SMTP service. Enable SSL function or not. Select the authentication required when you send an e-mail. SMTP Authentication Disable: If no authentication is required when an e-mail is sent.

  • Page 83: Motion Detection

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.14.1 Motion Detection Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image. To add or delete the motion windows. User can specify up to 4...

  • Page 84: Camera Tampering

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Define the sensitivity value of motion detection. The higher value will Sensitivity be more sensitivity. 3.14.2 Camera Tampering Camera tampering detection is a new intelligent functionality that further strengthens the benefit of Network Camera.

  • Page 85: Audio Detection

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.14.3 Audio Detection Audio detection alarm can be used as a complement to motion detection. Since audio detection can react to events in areas too dark for the video motion detection functionality to work properly.

  • Page 86: Samba Server

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.15.1 SAMBA Server Host Type the server name or the IP address of the SAMBA server. Set working directory path of SAMBA server. Share User Name Type the user name for the SAMBA server Password Type the password for the SAMBA server.

  • Page 87: Continuous Recording Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P User Name Type the user name for the SAMBA server Password Type the password for the SAMBA server. Status/Target iSCSI status and login/logout action. 3.16 Continuous Recording Configuration You may enable or disable continuous recording function here.

  • Page 88: Continuous Recording List

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.17 Continuous Recording List This page shows the continuous recording files which are stored on Samba server or iSCSI. User may play or delete the selected file.

  • Page 89: Event Server Configuration

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.18 Event Server Configuration 3.18.1 FTP Server You may set up FTP parameters for further operation of Event Schedule. If users want to send an alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

  • Page 90: Tcp Server

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Normal: Set it as normal if the FTP server is unencrypted FTP that defaults over port 21. FTPS: Set it as FTPS if the FTP server is over implicit SSL/TLS Protocol encrypted that defaults over port 990.

  • Page 91: Http Server

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.18.3 HTTP Server The device also can send event message to the specified HTTP server. User can specify multiple HTTP servers as he wishes. Name Therefore, user needs to specify a name for each HTTP server setting.

  • Page 92: Samba Server

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P 3.18.4 SAMBA Server The device also can send video stream to the specified SAMBA server. Most of the times, the SAMBA server will be another PC or NAS server.

  • Page 93: Setting

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P this device. 3.19.1 Setting Name Name of the Event or Schedule. Enable Enable or disable this Event or Schedule. Type Select Event trigger or Schedule trigger. Enable Time Define the feasible time slot.
  • Page 94 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Action Define the actions once event is triggered. Example 1. Send file to FTP server triggered by motion: Select event trigger Enable time: Start from 00:00 to 24:00 every day Triggered by: Motion Area (Added to the Object Detection page) Action : Send FTP (Add in Event Server ->...
  • Page 95 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Example 2. Send file to e-mail server triggered by motion (from Friday 18:00 to Saturday 06:00): Select event trigger. Enable time: start from Friday 18:00 and keep working for 12 hours, until it stops on Saturday 06:00.

  • Page 96: Record

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Example 3. Enable Voice Alert every 10 minutes during 18:00 to 24:00 from Monday to Friday. 1. Type: Select schedule trigger and interval is 10 minutes. 2. Enable Time: Select Monday to Friday, and set start time from 18:00 and keep working for 6 hours.

  • Page 97: Port Status

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Choose one of the profiles for recording. If the profile is H.265/H.264, the format of recorded file is avi. If the profile is Record File Type MJPEG, the format of recorded file is jpeg.
  • Page 98 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Input Status Show either inactive or active. Show either inactive or active. Output Status...

  • Page 99: Appendix A: Ping Ip Address

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Appendix A: Ping IP Address The ping (or Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether Internet camera is installed or not, or if the IP address conflicts with any other device over the network.

  • Page 100: Appendix B: Bandwidth And Video Size Estimation

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Appendix B: Bandwidth and Video Size Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements from your device.

  • Page 101: Appendix C: Ddns Application

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Appendix C: DDNS Application Configuring PLANET DDNS: Step 1: Visit DDNS provider’s web site and register an account if you do not have one yet. For example, register an account at http://planetddns.com...

  • Page 102: Appendix D: Configuring Port Forwarding Manually

    Manually set up the device with a fixed IP address, for example, 192.168.0.100. 2. Access the Router with Your Web browser The following steps generally apply to any router that you have on your network. PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 103 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Your WAN IP address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet.
  • Page 104 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be accessed from WAN by the router’s WAN IP address.

  • Page 105: Appendix E: Power Line Frequency

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Appendix E: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that Argentina 220V 50 Hz used in Australia and elsewhere. *Outlets typically controlled by adjacent switch.
  • Page 106 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Taiwan 110V 60 Hz Thailand 220V 50 Hz *Outlets typically controlled by adjacent switch. United Kingdom 230V* 50 Hz Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.

  • Page 107: Appendix F: Troubleshooting & Frequently Asked Questions

    H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Appendix F: Troubleshooting & Frequently Asked Questions Features The device utilizes H.265, H.264 and M-JPEG compressions to provide high quality images. Where H.265 and H.264 is standard...
  • Page 108 Do not connect device over a router. PLANET IP Wizard II program cannot detect device over a router.  If IP address is not assigned to the PC running PLANET IP Wizard II program, then PLANET IP Wizard II program cannot PLANET IP Wizard II program find device.
  • Page 109 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P Accessing this device  Maybe the IP address of the Internet camera is already being used by another device or computer. To confirm this possible problem, disconnect the Internet camera from the network first, and then run the ping utility to check it out.
  • Page 110 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P  When the PC connects to Internet camera for the first time, a pop-up Security Warning window will appear to download ActiveX Controls. When using Windows XP, or Vista, log on with Image or video does not appear an appropriate account that is authorized to install applications.
  • Page 111 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P down than the setting.  Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly.
  • Page 112 H.265 3 Mega-pixel Bullet IR IP Camera with Remote Focus and Zoom ICA-M3380P  Wrong power line frequency makes images flicker. Make sure it is the 50 or 60Hz format of your device. Image flickers.  If the object is dark, the image will flicker. Make the condition around the camera brighter.
