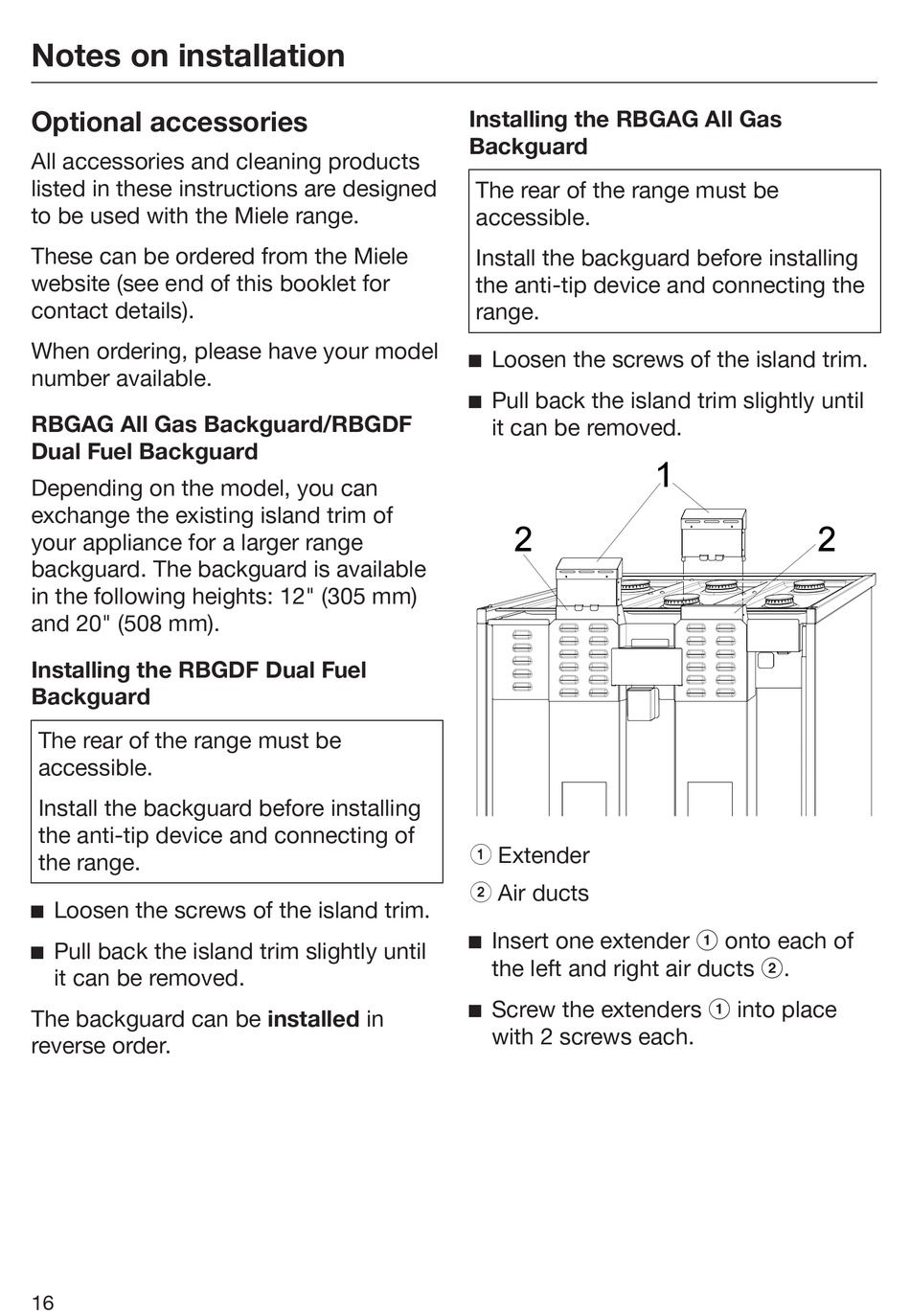

Notes on installation

Optional accessories

All accessories and cleaning products
listed in these instructions are designed
to be used with the Miele range.
These can be ordered from the Miele
website (see end of this booklet for
contact details).
When ordering, please have your model
number available.
RBGAG All Gas Backguard/RBGDF
Dual Fuel Backguard
Depending on the model, you can
exchange the existing island trim of
your appliance for a larger range
backguard. The backguard is available
in the following heights: 12" (305 mm)
and 20" (508 mm).
Installing the RBGDF Dual Fuel
Backguard
The rear of the range must be
accessible.
Install the backguard before installing
the anti-tip device and connecting of
the range.
 Loosen the screws of the island trim.
 Pull back the island trim slightly until
it can be removed.
The backguard can be installed in
reverse order.
16
Installing the RBGAG All Gas
Backguard
The rear of the range must be
accessible.
Install the backguard before installing
the anti-tip device and connecting the
range.
 Loosen the screws of the island trim.
 Pull back the island trim slightly until
it can be removed.
2
a Extender
b Air ducts
 Insert one extender  onto each of
the left and right air ducts .
 Screw the extenders  into place
with 2 screws each.
1
2
