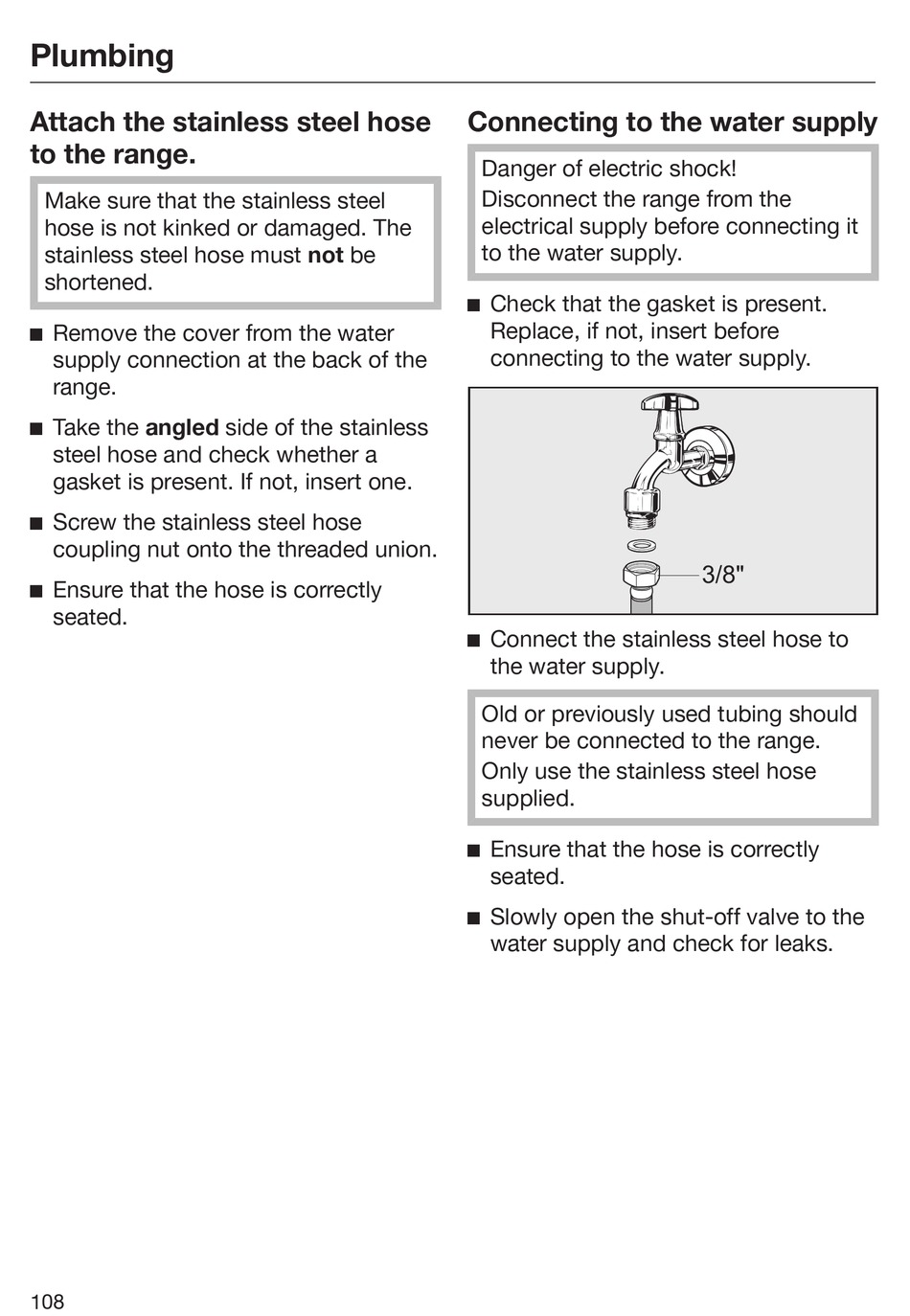

Plumbing
Attach the stainless steel hose
to the range.
Make sure that the stainless steel
hose is not kinked or damaged. The
stainless steel hose must not be
shortened.
 Remove the cover from the water
supply connection at the back of the
range.
 Take the angled side of the stainless
steel hose and check whether a
gasket is present. If not, insert one.
 Screw the stainless steel hose
coupling nut onto the threaded union.
 Ensure that the hose is correctly
seated.
108

Connecting to the water supply

Danger of electric shock!
Disconnect the range from the
electrical supply before connecting it
to the water supply.
 Check that the gasket is present.
Replace, if not, insert before
connecting to the water supply.
 Connect the stainless steel hose to
the water supply.
Old or previously used tubing should
never be connected to the range.
Only use the stainless steel hose
supplied.
 Ensure that the hose is correctly
seated.
 Slowly open the shut-off valve to the
water supply and check for leaks.
