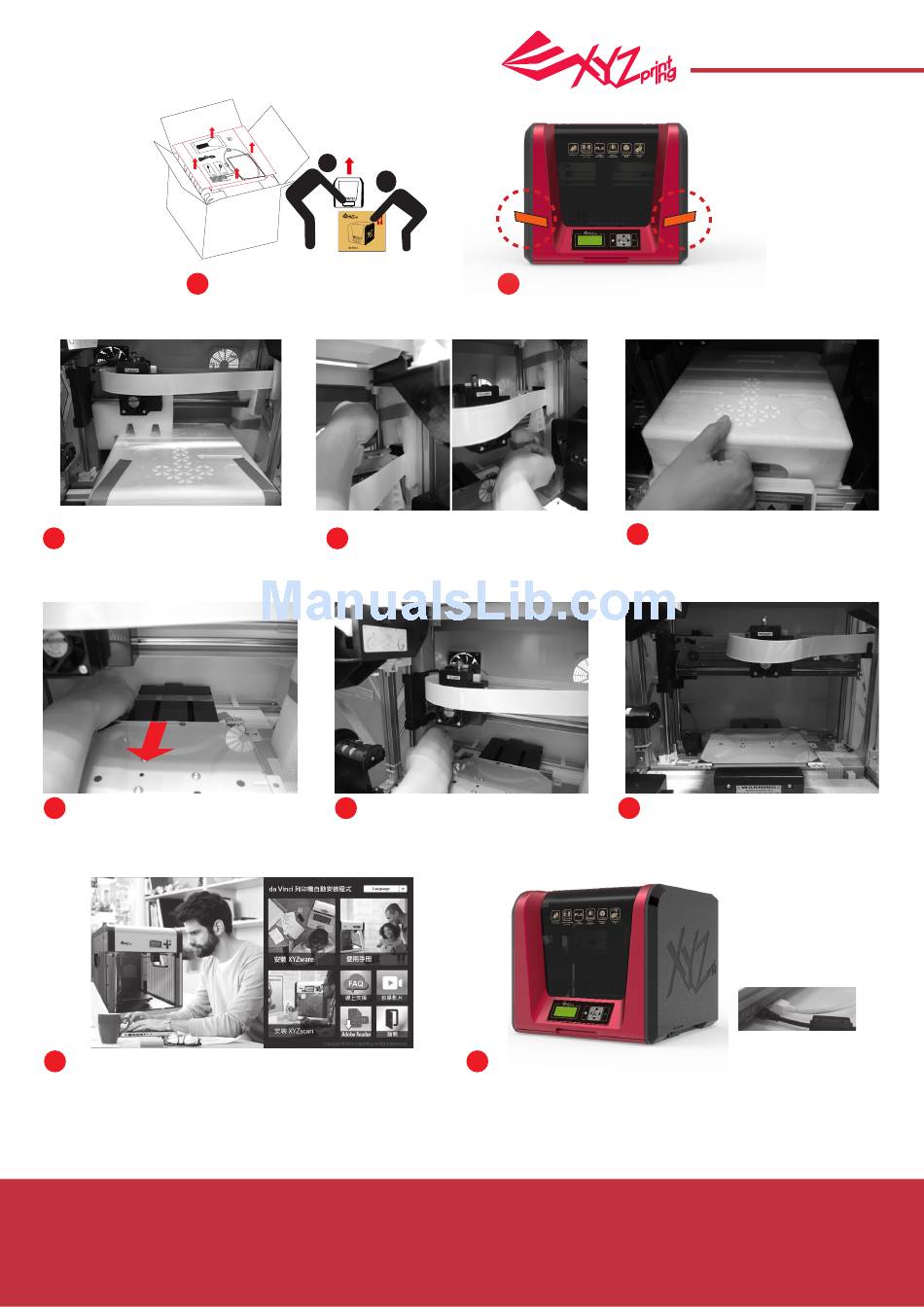

Unpacking The Product - XYZ Printing da Vinci Jr 1.0 Pro Quick Manual

Open the box and remove the
1
accessories and cushions.
Remove all fixing tapes and the
3
cushion between print bed and
extruder module.
Be sure to remove the fixing tapes
6
at the back of the print bed.
Insert the SD card that came with the printer into your
9
computer or download the latest XYZware Pro from the
official Website and install it on the computer.
Note: please use the original power adapter and power cord along with the printer in order to
prevent product damage or safety hazards caused by differences in voltage specifications.

Unpacking the Product

HD23F1JP0E8
2
Be sure to remove the fixing
4
cushion from the axis.
Be sure to remove the paper
7
cardboard near the Y-axis.
Use the USB cable to connect the printer to PC. Connect
10
the power cord to the printer then turn on the power
switch.
da Vinci Jr.1.0 Pro
Remove the plastic bag and
the tapes.
Remove the securing styrofoam
5
and fixing tapes on the print bed.
8
Please removal all fixed materials
before turning on the printer to
prevent the machine from damage.
May 2016
P 4
