Drc - Digital Remote Control - Audison bit one Advanced Manual

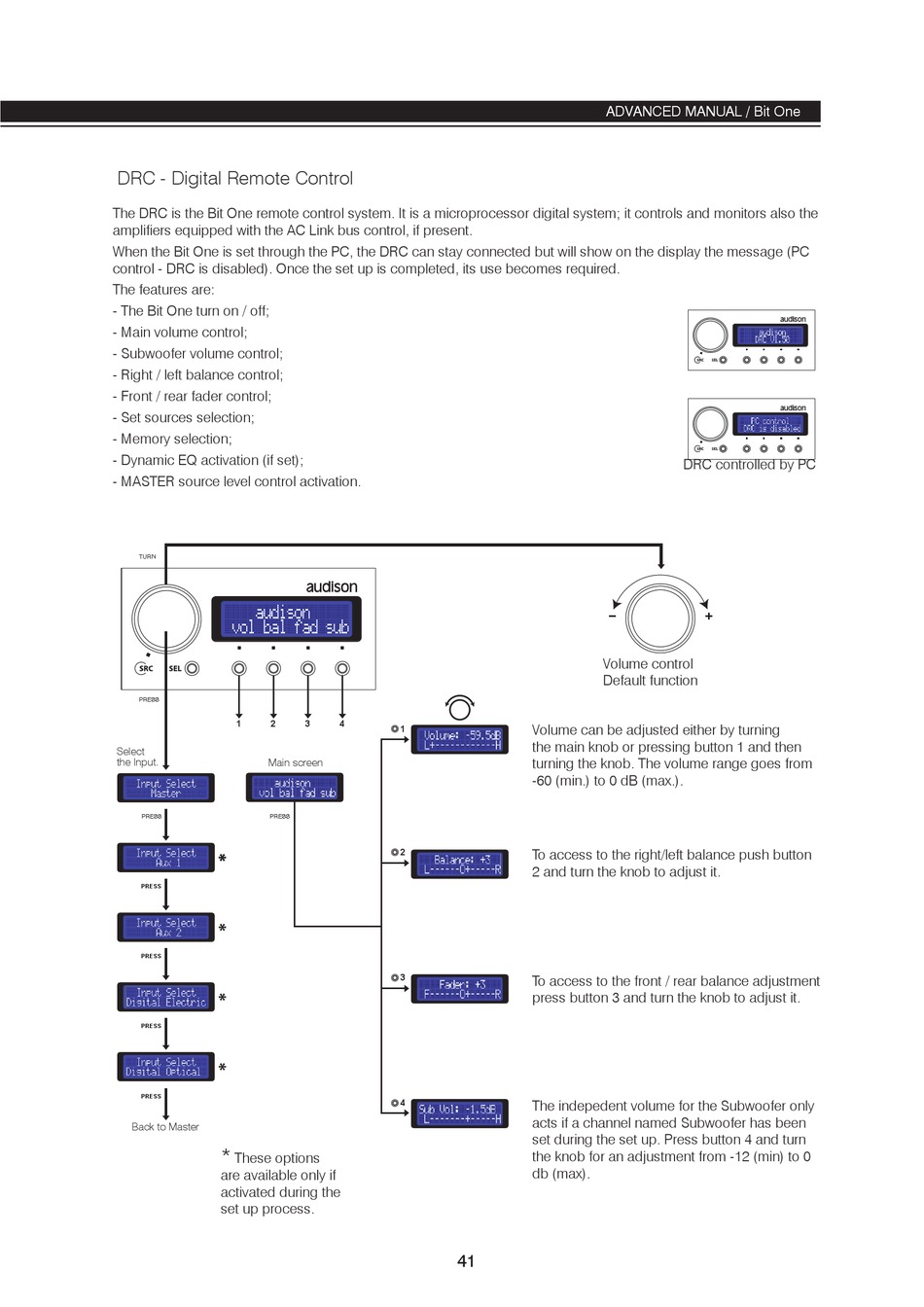

DRC - Digital Remote Control

The DRC is the Bit One remote control system. It is a microprocessor digital system; it controls and monitors also the
amplifiers equipped with the AC Link bus control, if present.
When the Bit One is set through the PC, the DRC can stay connected but will show on the display the message (PC
control - DRC is disabled). Once the set up is completed, its use becomes required.
The features are:
- The Bit One turn on / off;
- Main volume control;
- Subwoofer volume control;
- Right / left balance control;
- Front / rear fader control;
- Set sources selection;
- Memory selection;
- Dynamic EQ activation (if set);
- MASTER source level control activation.


1 2
Select
the Input.
Main screen
 
PRESS
PRESS
PRESS
PRESS
Back to Master
*
These options
are available only if
activated during the
set up process.
3 4
1
2
3
4
41 41
ADVANCED MANUAL / Bit One ADVANCED MANUAL / Bit One
DRC controlled by PC
Volume control
Default function
Volume can be adjusted either by turning
the main knob or pressing button 1 and then
turning the knob. The volume range goes from
-60 (min.) to 0 dB (max.).
To access to the right/left balance push button
2 and turn the knob to adjust it.
To access to the front / rear balance adjustment
press button 3 and turn the knob to adjust it.
The indepedent volume for the Subwoofer only
acts if a channel named Subwoofer has been
set during the set up. Press button 4 and turn
the knob for an adjustment from -12 (min) to 0
db (max).
