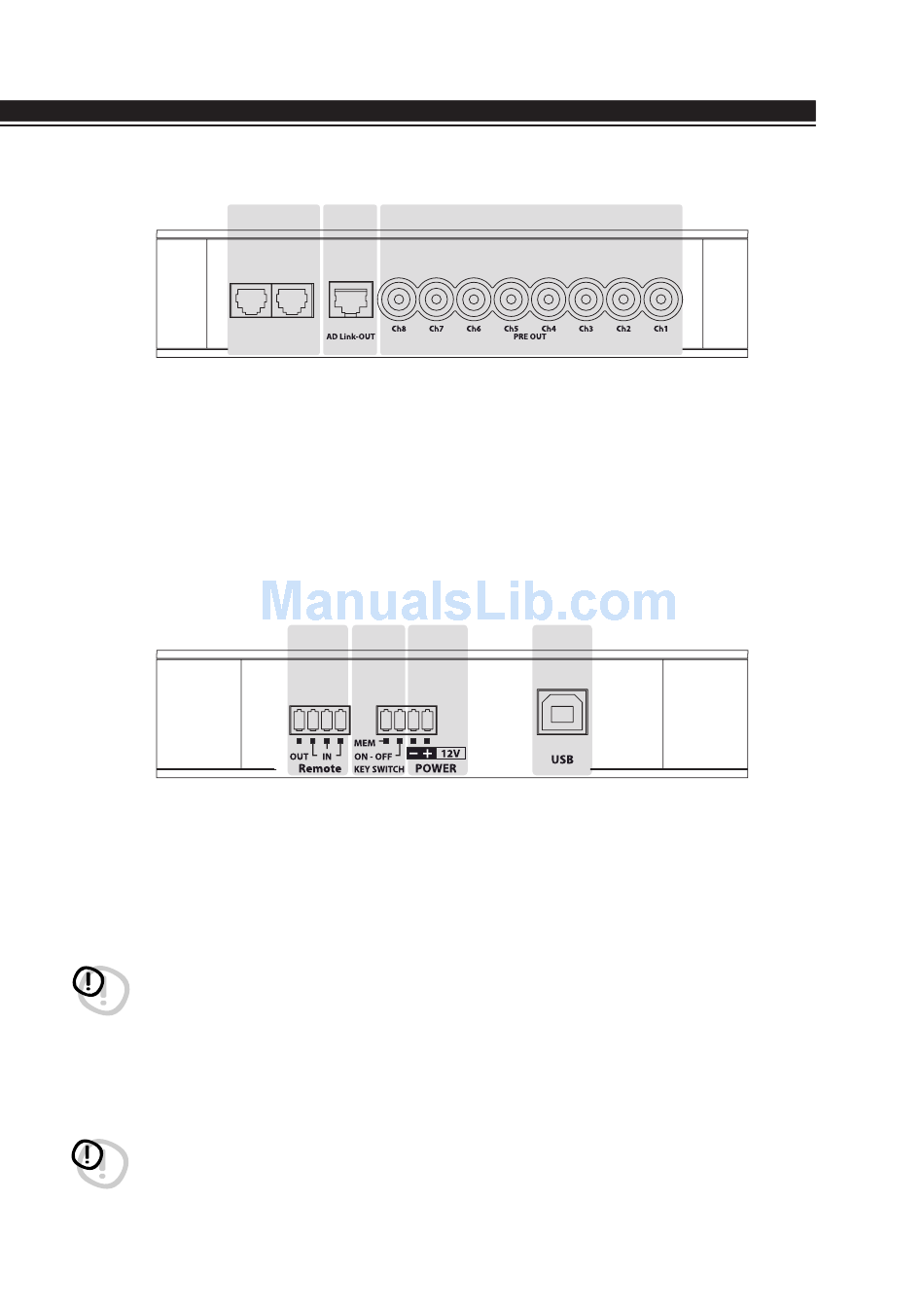

INPUT / OUTPUT CONNECTION PANELS - DESCRIPTION
3
DRC AMPS
1 - AC Link - 2

OUTPUT SIGNALS

1 • PRE OUT (low-level analog signal)
Ch1 - Ch2 - Ch3 - Ch4 - Ch5 - Ch6 - Ch7 - Ch8
Connect here the RCA cables going to the system amplifiers.
2 • AD Link - OUT (digital signal)
S/PDIF standard digital signal (Ch1÷Ch8) to connect amplifiers provided with appropriate AD Link input.
3 • AC Link 1 - 2 (REMOTE CONTROLS)
DRC: Connection plug for the remote control panel of the processor functions and the devices connected to the
AMPS bus.
AMPS: Connection bus to control the amplifiers provided with AC Link connection.
REMOTE CONTROLS INPUTS / OUTPUTS
4 • REMOTE IN-OUT
IN: for the processor remote turn-on through one or multiple signal sources, featuring Rem Out control.
OUT: output for the remote turn-on of the other devices/amplifiers connected to the processor.
The REMOTE OUT output current capability is 20 mA.
WARNING:
the Bit One must be switched on before the amplifiers connected. It's necessary to connect the sources
Remote Out to the Bit One Remote In and then the Bit One Remote Out to the Remote In of the other devices/
amplifiers connected to the processor.
5 • KEY SWITCH
MEM: it stores the processor status at shutdown (optional)
ON - OFF: it turns the processor on/off when the car ignition key is turned on/off (optional).
6 • POWER (power supply connection)
- 12V + : Positive and negative connection terminal for car 12 V power supply.
WARNING: make sure the connection polarity is as indicated on the terminals. A mis-connection may result in
damage to the processor.
7 • USB
USB (B) connection plug, to connect the processor to a PC and manage its functions through the Bit One software.
2
4 5 6
6 6
ADVANCED MANUAL / Bit One ADVANCED MANUAL / Bit One
1
7
