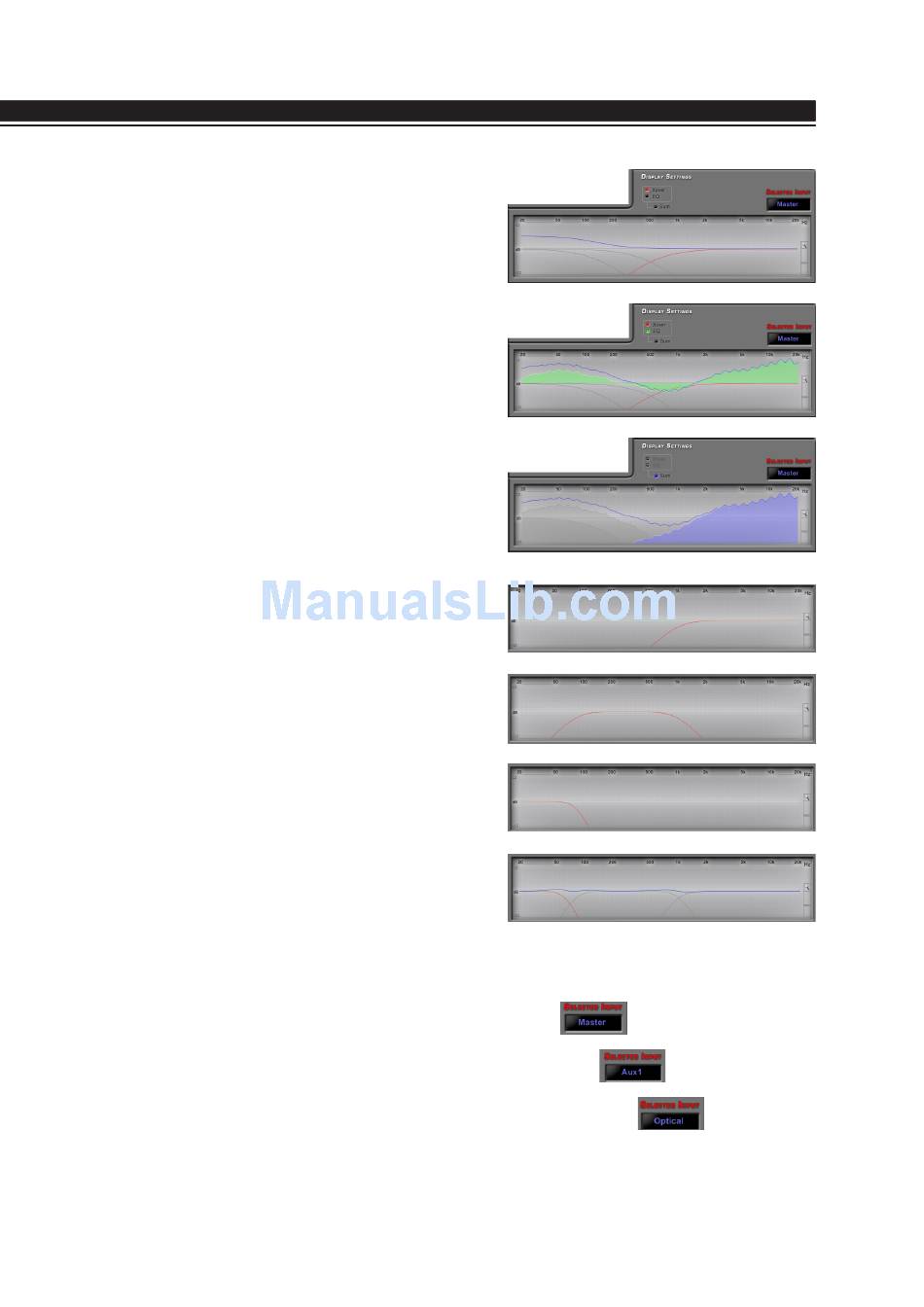

4/5. DISPLAY AND SETTINGS

You can view the electrical response of the output
channel you are acting on through the display (4). If
multiple channels are selected, the display will show
the electrical response of all the channels, showing the
"active" channel highlighted in red and the other channels
selected in gray.
The displays shows frequencies from 20 to 20000 Hz in a
+24 a -24 dB range. The default resolution is set to ±12
dB, but on the right hand a zoom control can be found, to
change the resolution.
After changing the resolution, to go back to the default
one you have to double click within the zoom bar area.
The Display Settings (5) offers the possibility to view:
- the electrical response under crossover filtering action
(Xover) displayed as a red line;
- the electrical response under equalization (EQ)
displayed as a green area;
- the resultant of the sum between the filtered electrical
response and the equalized one (Sum) displayed as a
blue area. In this case the red line and the green area are
hidden;
- the system total electrical response when multiple
channels are selected, displayed as a blue line.
During the tuning phase, the display shows in real time
the changes applied to the electrical signal.
Pay attention to not confuse what you see on the display
with what is reproduced by the speakers.
The Bit One works on the signal that has to be sent to the
amplifiers.
We suggest that while performing the tuning, you also
work with a good real-time spectrum analyzer that will
give you the acoustic resultant of the whole system.
6. SELECTED INPUT
Once the set up procedure has been completed, the Bit
One is regularly working and you can adjust the system
using the sources selected during the first set up phase.
The window "Select Input " will show the active source.
Since while connecting the device with the PC the DRC is
disabled, the source can be changed by clicking on the
Ext.
Source EQ card on the top and selecting the desired
source on the left hand.
ADVANCED MANUAL / Bit One ADVANCED MANUAL / Bit One
Display of a High Pass filter
Display of a Band Pass filter
Display of a Low Pass filter
Display of a Mid-Hi + Woofer + Sub system
