7. EXT. SOURCE EQ

This specific card manages everything is related to the
external sources.
On the top the actual plugs of the selected sources will
lit up.
Should you have not activated an external source during
the set up phase, you can modify this step of the set up
without going back to the main set up.
Select Config/External Source on the top main menu
and select the desired source or de-select the source
you're not using. As a consequence the source name
will appear or disappear respectively from the list at the
bottom on the left of the screen.
This card displays:
- type and description of the MASTER inputs used;
- which alternative sources are active;
- the system general volume;
- input sensitivity adjustment for the AUX 1 / AUX 2 /
PHONE sources;
- a 30-band graphic equalizer for the AUX 1 / AUX 2 /
PHONE / OPTICAL / S/PDIF sources;
- the graphic display showing the equalization applied to
the selected input signal;
- the EQ Off feature, allowing to disactivate the equalizer
to check the effect without losing the settings;
- the Flat feature, settino all the cursors back to 0 dB
position;
- the Select All feature, providing the ability to move all the
cursore at the same time, once the desired equalization
curve has been set;
- one "select" button for each equalizable band, providing
the ability to move all the selected cursors all together.
ADVANCED MANUAL / Bit One ADVANCED MANUAL / Bit One

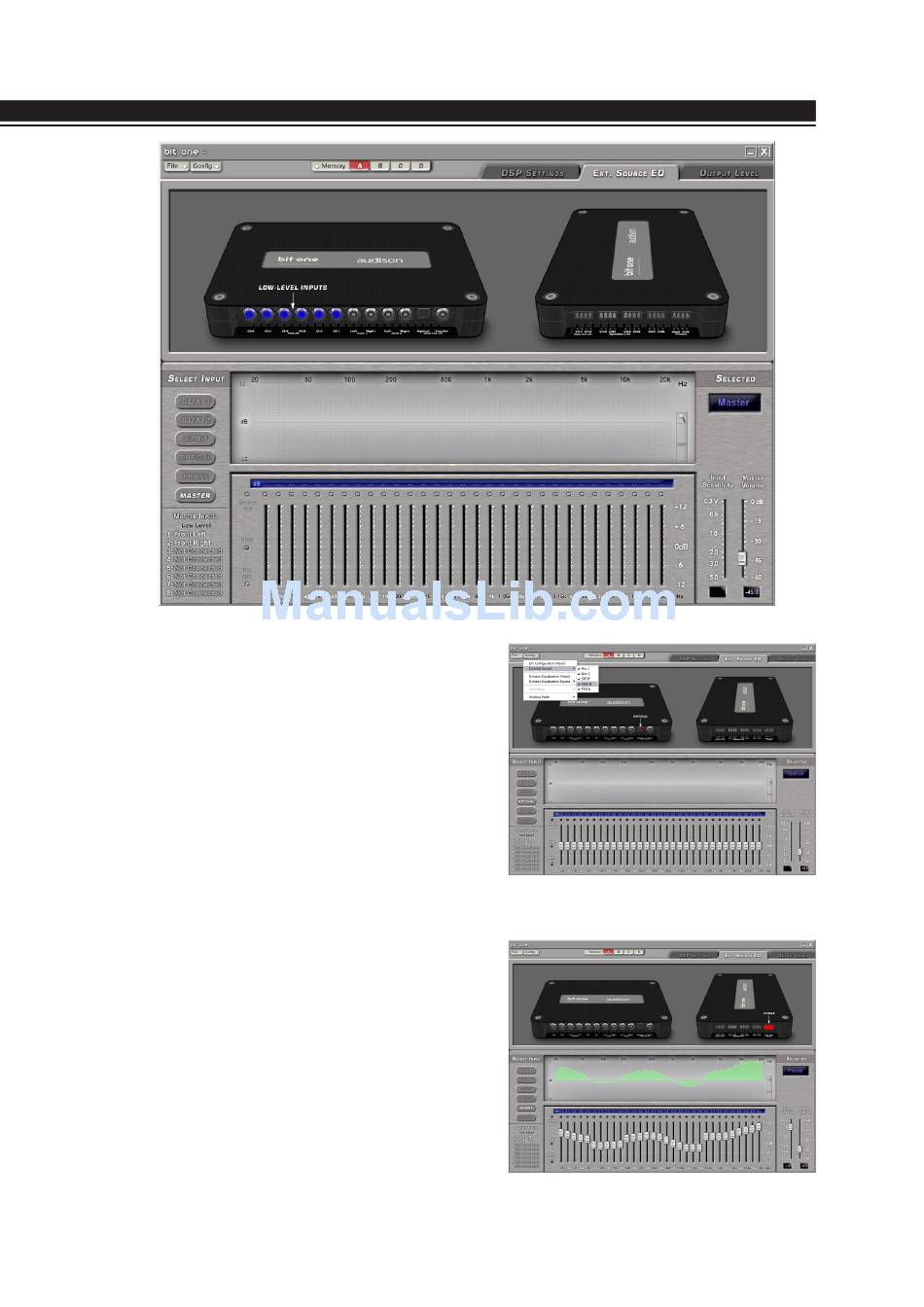

Example of equalization dedicated to the PHONE input
