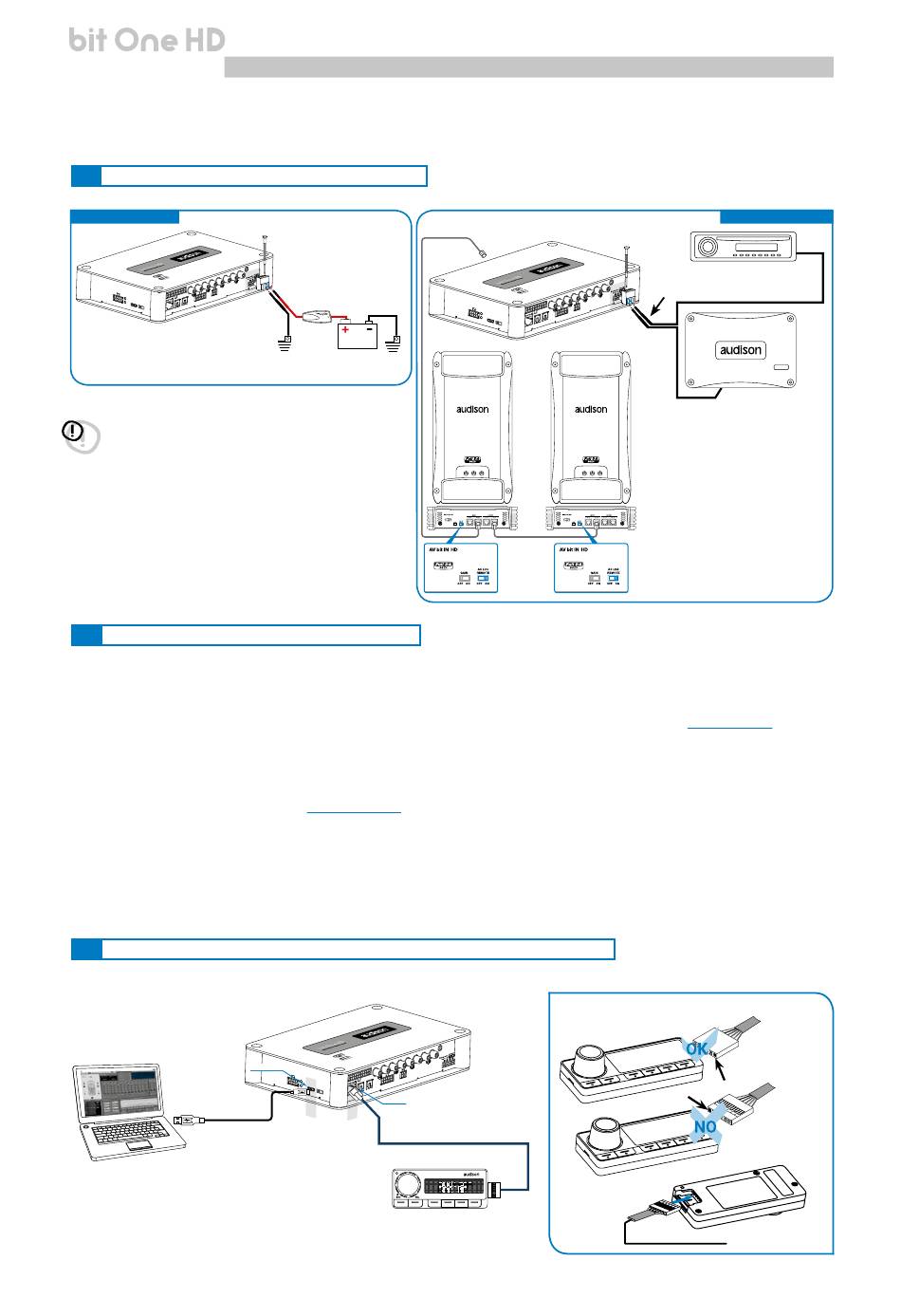

5. CONNECTIONS

5.1

POWER SUPPLY AND REMOTE TURN ON

POWER SUPPLY
WARNING:
to power the bit One HD,
use 1 mm (16 AWG) min. cables
2
5.2

HOW TO TURN THE bit One HD ON/OFF

The bit One HD is on when the Audison logo lights up in blue. After receiving the turn on input the bit One HD takes
6 seconds to start working. It can be turned on / off in the following ways:
1. Through the DRC MP main control switch (to turn on). Keep the DRC MP main control knob pressed (to shut
down). In this case no other Remote In connections are required, but they can coexist
2. By connecting the REMOTE IN terminal with a Remote Out signal coming from an after-market audio source.
3.
Through the SPEAKER IN CH1-CH2. The AUTO TURN ON (ART) is activated by connecting the amplified
head unit output to the SPEAKER IN CH1-CH2 input channel. This function can be enabled/disabled using
the bit One HD PC software
5.3

PERSONAL COMPUTER and DIGITAL REMOTE CONTROL (DRC MP)

USB cable
(powered)
FUSE HOLDER
Not provided
suggested fuse
2A delayed
12V
Ground
Battery Ground
.
(see section 7.4.1)
USB INPUT
DRC IN
DRC / AC Link cable (4,5 m / 177.16")
Remote in
Remote out
A
M
P
L
I
F
I
E
R
S
(see section 5.1)
HOW TO CONNECT THE DRC MP
DRC/ACLink cable (provied)
bit One HD / 5
REMOTE TURN ON
Remote out
Remote in
.
