MASTER HIGH LEVEL INPUTS SELECTION

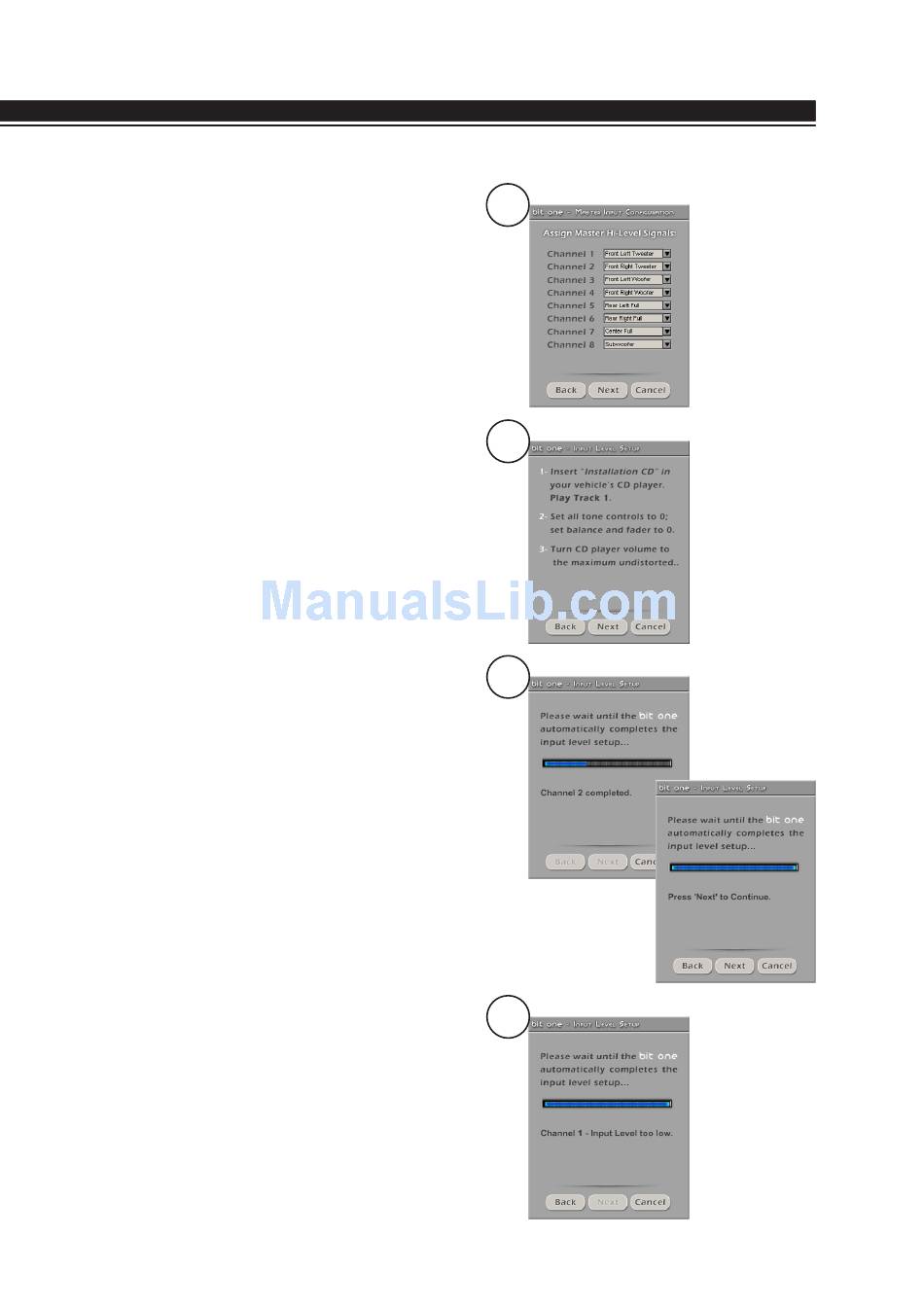

15. How to set up high-level inputs
You can assign to any of the processor input channels
(Ch1÷Ch8) the identifying name corresponding to the
signal coming from the source.
The available names are:
- Front Left Full / Tweeter / Midrange / Woofer;
- Front Right Full / Tweeter / Midrange / Woofer;
- Rear Left Full / Tweeter / Woofer;
- Rear Right Full / Tweeter / Woofer;
- Center Full / Tweeter / Woofer;
- Subwoofer.
The Bit One will use these names to:
- Reconstruct a full range signal coming from an OEM
source with a dedicated multi-channel amplifier;
- Assign the corresponding signal to the respective
output.
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
16. How to calibrate the MASTER input levels
Follow the instructions listed below:
- Insert into the CD player of your source the "Installation
CD" provided;
- Play track 1 (press Play);
- Set all tone controls to zero (0);
- Set balance and fader to center (0);
- Adjust the head unit volume to the maximum
undistorted output level.
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
Remark:
is absolutely required to adapt the Bit One
inputs sensitivity to the signal coming from the source.
17. Automatic calibration
Through a real-time progress bar and specific messages
the software shows how the procedure is being executed.
Once the procedure is completed, the window will show
the message "Press Next to Continue".
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
POSSIBLE ERROR MESSAGE
18. Input level too low
Should the procedure get interrupted during the
calibration with the above message showing up, check
if the signal or its level is present on the indicated
corresponding channel.
Press CANCEL to log out the program.
Press BACK to go back to the inputs set-up.
ADVANCED MANUAL / Bit One ADVANCED MANUAL / Bit One
