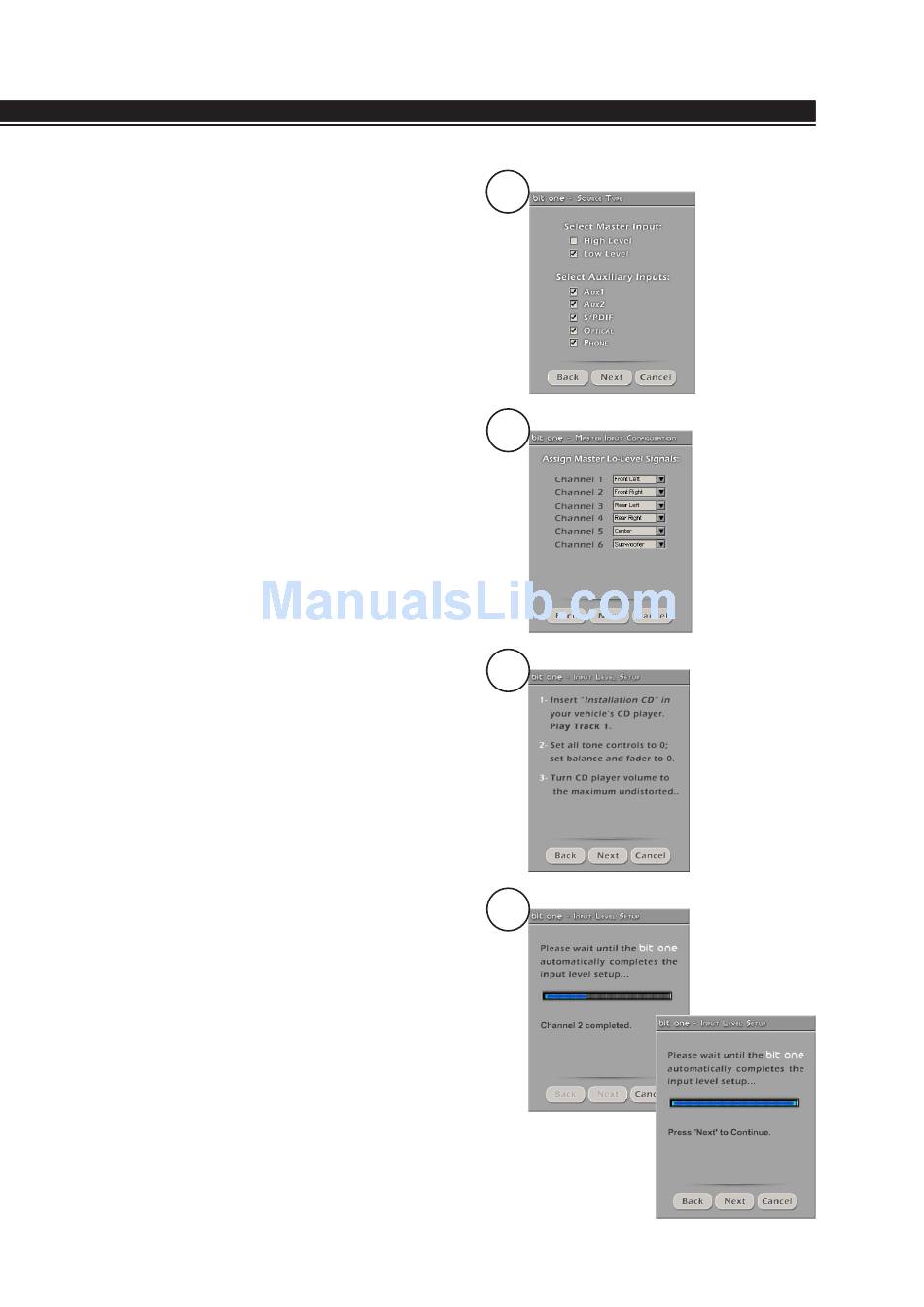

5. Inputs selection
- Select the main inputs (MASTER) type (Low Level or High
Level) used. To change this setting afterwards, you will
have to go through this guided procedure all over again;
- Among the available auxiliary inputs (AUX1 - AUX2 - S/P
DIF - OPTICAL – PHONE) pick those that wil be used.
You can change this setting afterwards by selecting
"Config / External Source" on the software main menu.
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
MASTER LOW-LEVEL INPUTS SELECTION
6. How to set up low-level inputs
An identifying name corresponding to the signal coming
from the source can be assigned to any of the processor
input channels (Ch1÷Ch6). The available names are:
Front Left, Front Right, Rear Left, Rear Right, Center,
Subwoofer. The Bit One will use these names to assign
the corresponding signal to the respective output.
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
7. How to calibrate the MASTER inputs level
Follow the instructions listed below:
- Insert into the CD player of your head unit the
"Installation CD" provided;
- Play track 1 (press Play);
- Set all tone controls to zero (0);
- Set balance and fader to center (0);
- Adjust the head unit volume to the maximum undistorted
output level.
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
Remark:
calibration is absolutely required to adapt the
Bit One inputs sensitivity to the signal coming from the
source.
8. Automatic calibration
Through a real-time progress bar and specific messages
the software shows how the procedure is being executed.
Once the procedure is completed, the window will show
the message "Press Next to Continue".
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
