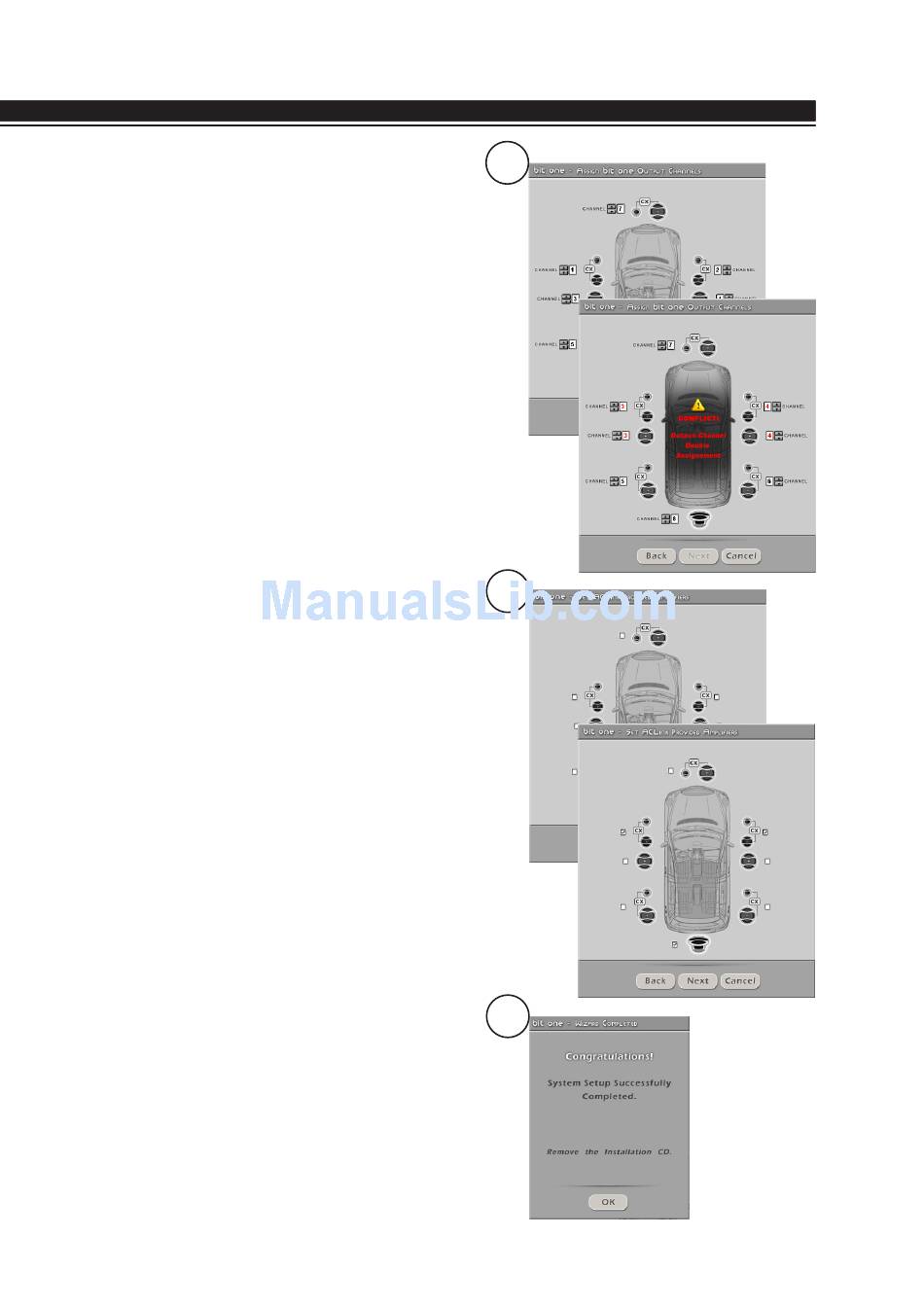

12. Processor outputs (Ch1÷Ch8) allocation
The Bit One features 8 output channels. On this specific
step of the procedure, any signal can be assigned to
each output channel.
Ex.:
the 1 and 2 outputs could be assigned to the rear
channels just because with this setting the cables
going to the relative amplifier would not need to be
lengthened.
Due to a matter of convenience, if the output 1
is assigned to the left woofers, the software will
automatically assign the output 2 to the right woofers.
If during the procedure the output 1 is assigned also
to the left mid-high speakers, the software will show
a warning message. Change the allocation of one of
the two numbers marked in red and the software will
automatically select the first available channel.
Press BACK to go back to the previous step.
Press NEXT to go ahead with the set-up procedure.
Press CANCEL to exit the program.
13. Selecting amplifiers connected through the AD
Link / AC Link connection system
If the system features amplifiers provided with the AD
Link digital input and you want to connect them with the
system, you have to select them on this screenshot of the
set-up procedure.
This means that the Bit One will manage the
corresponding outputs through the AD Link-OUT plug,
managing the other outpust through the RCA-Pre OUT
plugs.
Remark:
keep in mind that you have to assign the
corresponding Amp ID to the specific amplifier. The Bit
One will then automatically recognise the identified
amplifier.
14. System configuration successfully completed
Stop playing the Test track and remove the provided CD-
ROM, called "Installation CD", from the CD player of your
source.
Remark: low level imput De-equalization
the Bit One provides the ability to de-equalize a low
level signal. You have to connect the signal to the low
level inputs and select the hight level inputs as input
tipilogy used (see point 5) on the Bit One software.
Then proceed to the signal processing, see from point
15 through 22.
