Dimensions and weight

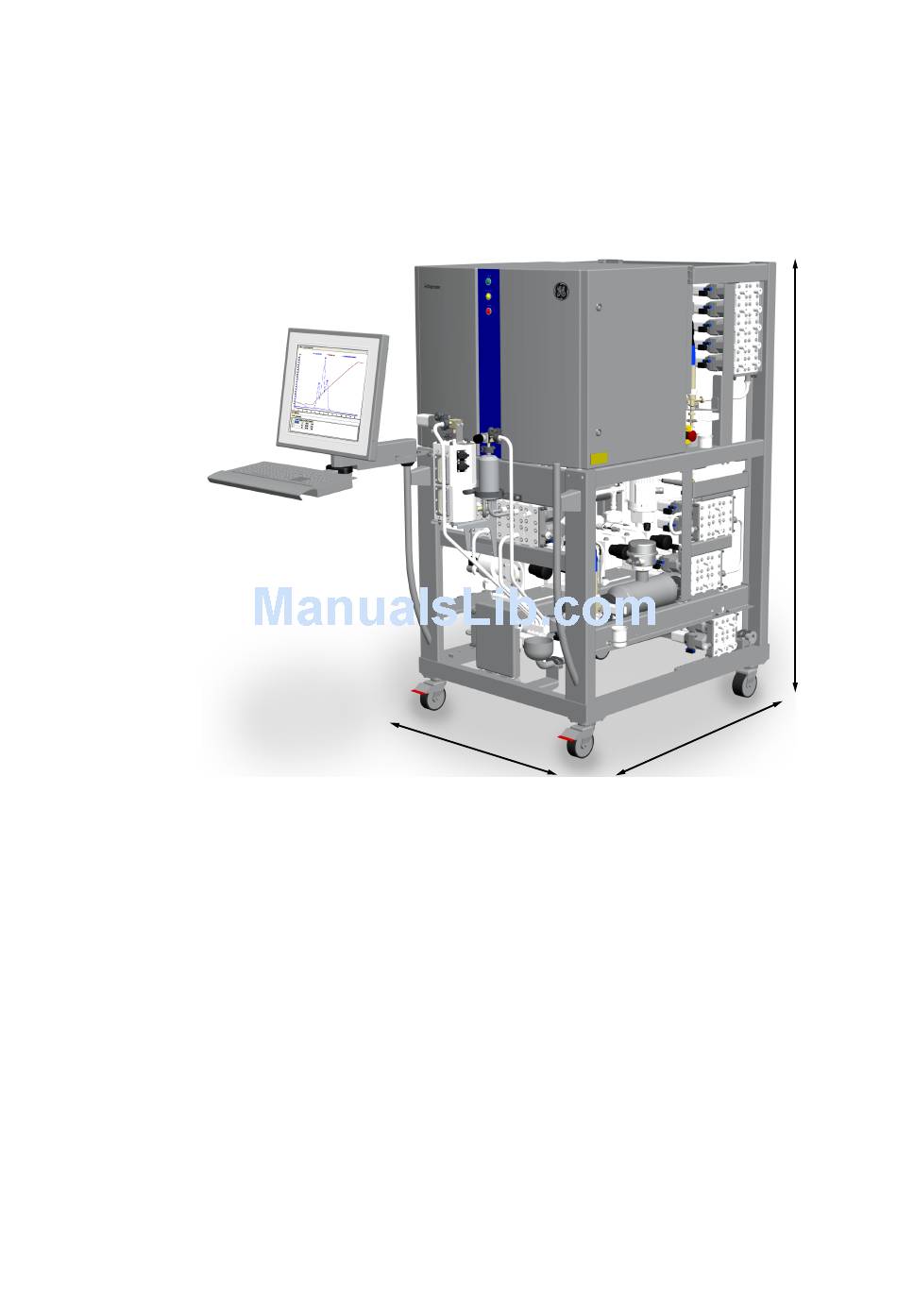

The following illustration shows the dimensions of the ÄKTAprocess 6 mm, 10 mm 3/8"
and 1/2" (Cabinet 10) system.
•
•
The weight of the ÄKTAprocess system is:
•
•
ÄKTAprocess Site Preparation Guide 29-1396-55 AA
1050 mm
ÄKTAprocess 6 mm, 10 mm 3/8" and 1/2" (Cabinet 10): 1050 x 1650 X 1250 mm (W
x H x D) (illustration)
ÄKTAprocess 1" SS and PP (Cabinet 30): 1050 x 1890 X 2200 mm (W x H x D) (not
shown)
ÄKTAprocess 6 mm, 10 mm 3/8" and 1/2" (Cabinet 10): Approximately 400 kg (exact
weight is configuration dependent)
ÄKTAprocess 1" SS and PP (Cabinet 30): Approximately 800 kg (exact weight is con-
figuration dependent)
