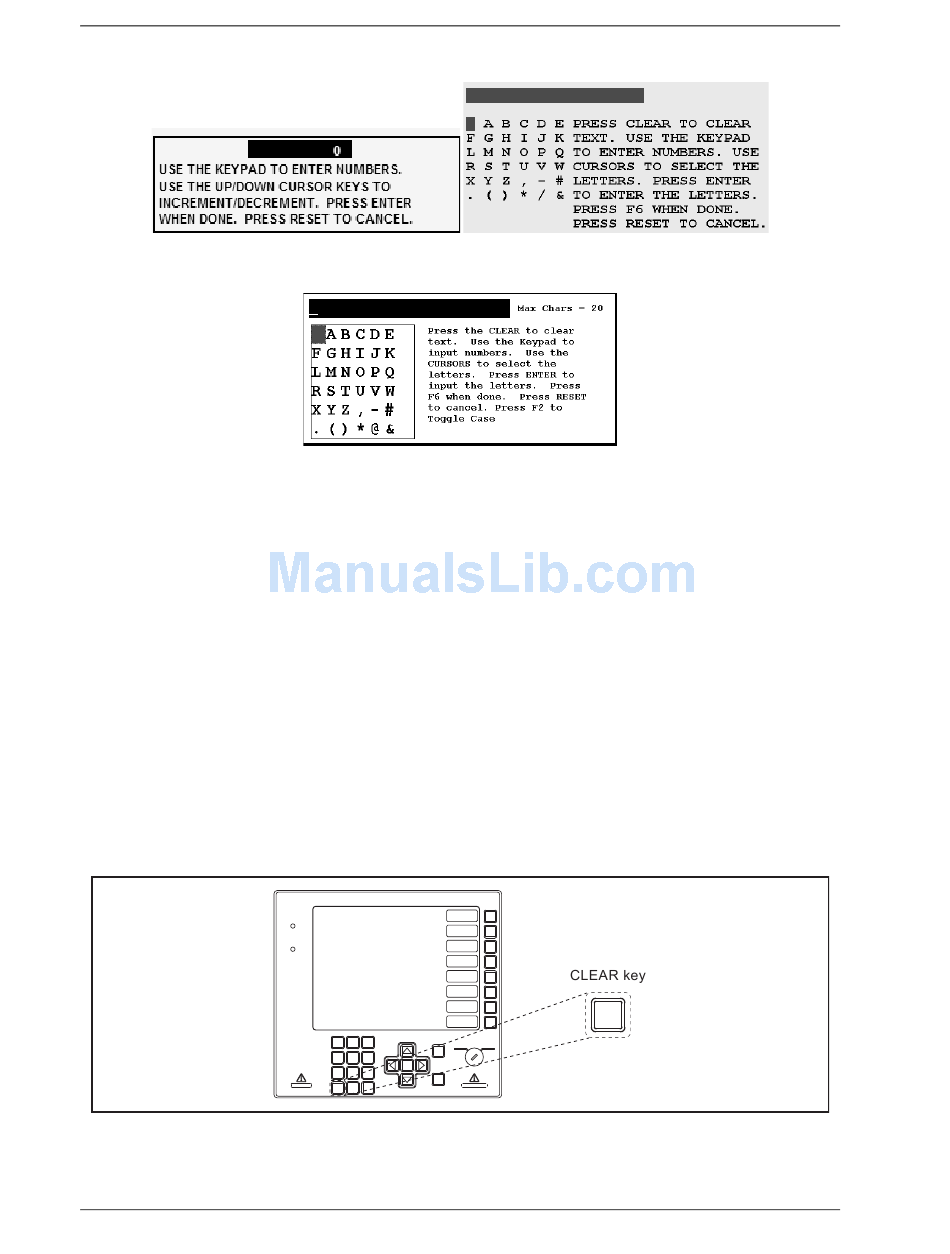

Figure 3-5. Numeric Entry Window (Left); Alphabetic Entry Window (Right)
To enter a number in an entry window, simply key in the individual digits of the number,
using the number keys. In Numeric Entry windows, press ENTER; in Alphabetic or
Alphanumeric Entry windows, press F6. The window closes, and the number you entered
(and, in the case of alphabetic or alphanumeric entry, accompanying letters or symbols)
appears on the SmartPAC 2 screen next to the item you selected.
You can also use the cursor keys to enter information on these entry screens (see Cursor Keys,
page 3-5). The CLEAR key is used to delete entered information (see CLEAR Key, next). To
cancel a numeric entry operation, press RESET (see RESET Key, page 3-10).

CLEAR Key

The CLEAR key, shown in Figure 3-7, is used to delete digits or characters in a SmartPAC 2
entry window (see Figure 3-5 and Figure 3-6). You also use the CLEAR key as directed in
other procedures, such as deleting a tool.
