Selecting A Cam Channel - Wintriss SmartPAC2 User Manual

1126700
(ProCam 16-sensor option shown. Your display may look different.)
Names you have assigned to cam channels in Initialization are displayed on the Cam Channel
Menu in place of the default channel numbers (see SELECT CAM NAMES (Optional),
page 4-10).
Channel numbers that are missing from the menu have been programmed as "global" cams in
Initialization (see SET GLOBAL CAMS (Optional), page 4-15). To view global cam channels,
press F5 (View Global Cam Summary) (see page 5-47).

Selecting a Cam Channel

To make cam settings, you must first select a cam channel. To do so, perform the following
steps:
Select CAM SWITCH on the Tool Program Menu. The Cam Channel Menu displays.
1.
If this display appears, you need to enter the general password to program cam settings.
Security access is set in Initialization mode (see SECURITY ACCESS, page 4-24).
Select a cam channel to program. The Cam Channel Program Type Menu, shown in
2.
Figure 5-45, page 5-39, displays.
5-38

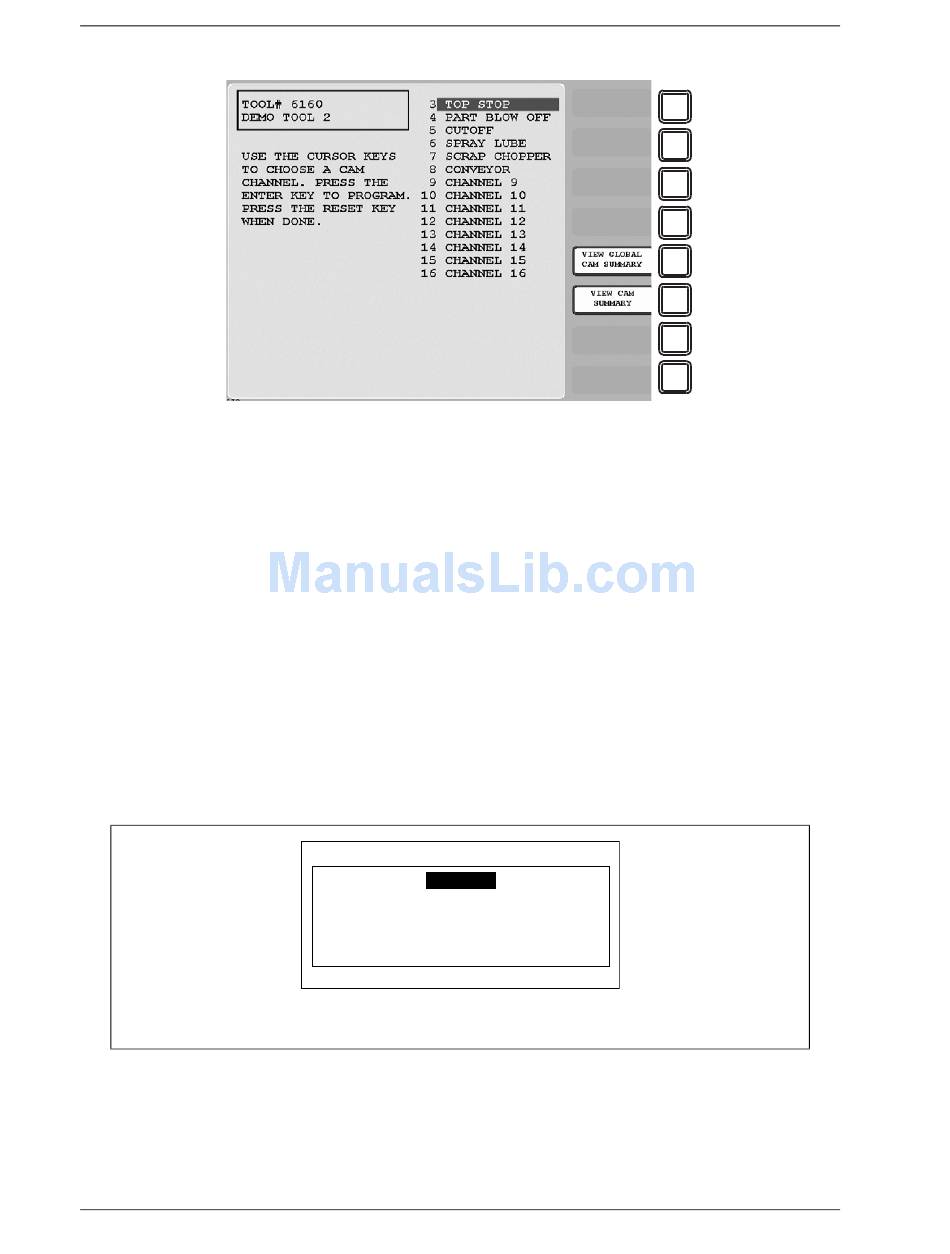

Figure 5-43. Cam Channel Menu
ENTER YOUR PASSWORD
USE THE KEYPAD TO ENTER NUMBERS.
USE THE UP/DOWN CURSON KEYS TO
INCREASE/DECREASE. PRESS ENTER
WHEN DONE. PRESS RESET TO CANCEL.
Figure 5-44. "Enter Your Password" Screen
