CAUTION
DAMAGE TO BOARD FROM STATIC DISCHARGE
Ground yourself before touching circuit boards or chips by touching a large metal object
such as the press. Static electricity can destroy electronic components.
Failure to comply with these instructions could result in property damage.
Locate the USB connector, J121, on the SmartPAC 2 board (refer to Figure 2-7,
6.
page 2-13).
NOTICE
The USB disk can fit into the USB connector in only one orientation. DO NOT try to force
the USB disk into the connector when it is in the wrong orientation.
Making sure that the USB disk is oriented correctly, carefully insert the USB disk into the
7.
USB connector. Wait about a minute for the SmartPAC 2 to recognize the USB disk.
Close the door of the enclosure or console.
8.
Using the cursor keys, highlight "XFER FROM USB DISK," as shown in Figure B-1, and
9.
press ENTER. After a few seconds, the message "USB DISK TRANSFER COMPLETE"
displays briefly, then the Firmware Load Menu appears again, as shown in Figure B-2.

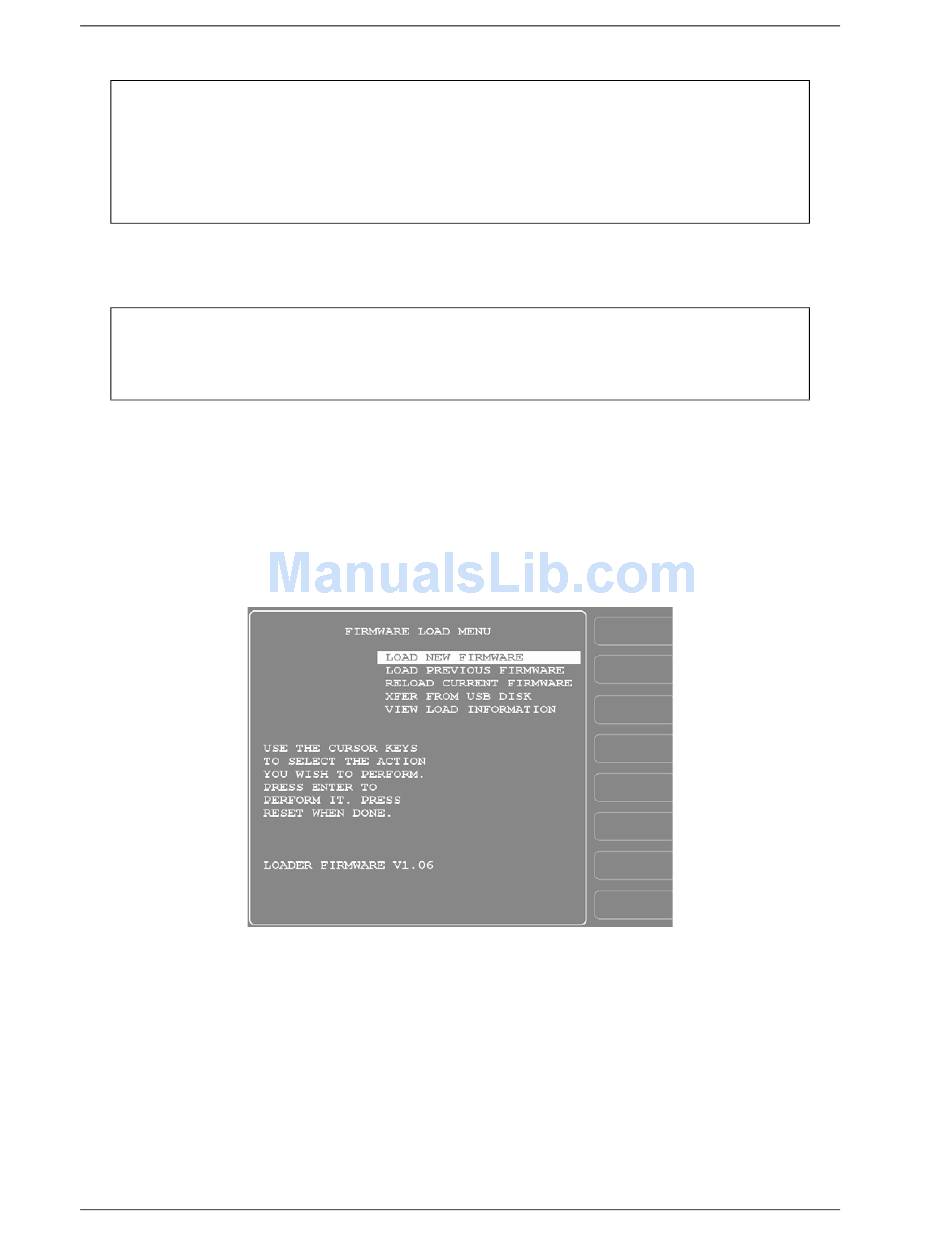

Figure B-2. Firmware Load Menu with "LOAD NEW FIRMWARE" Highlighted

B-4
SmartPAC 2 User Manual
Updating SmartPAC 2 Firmware
