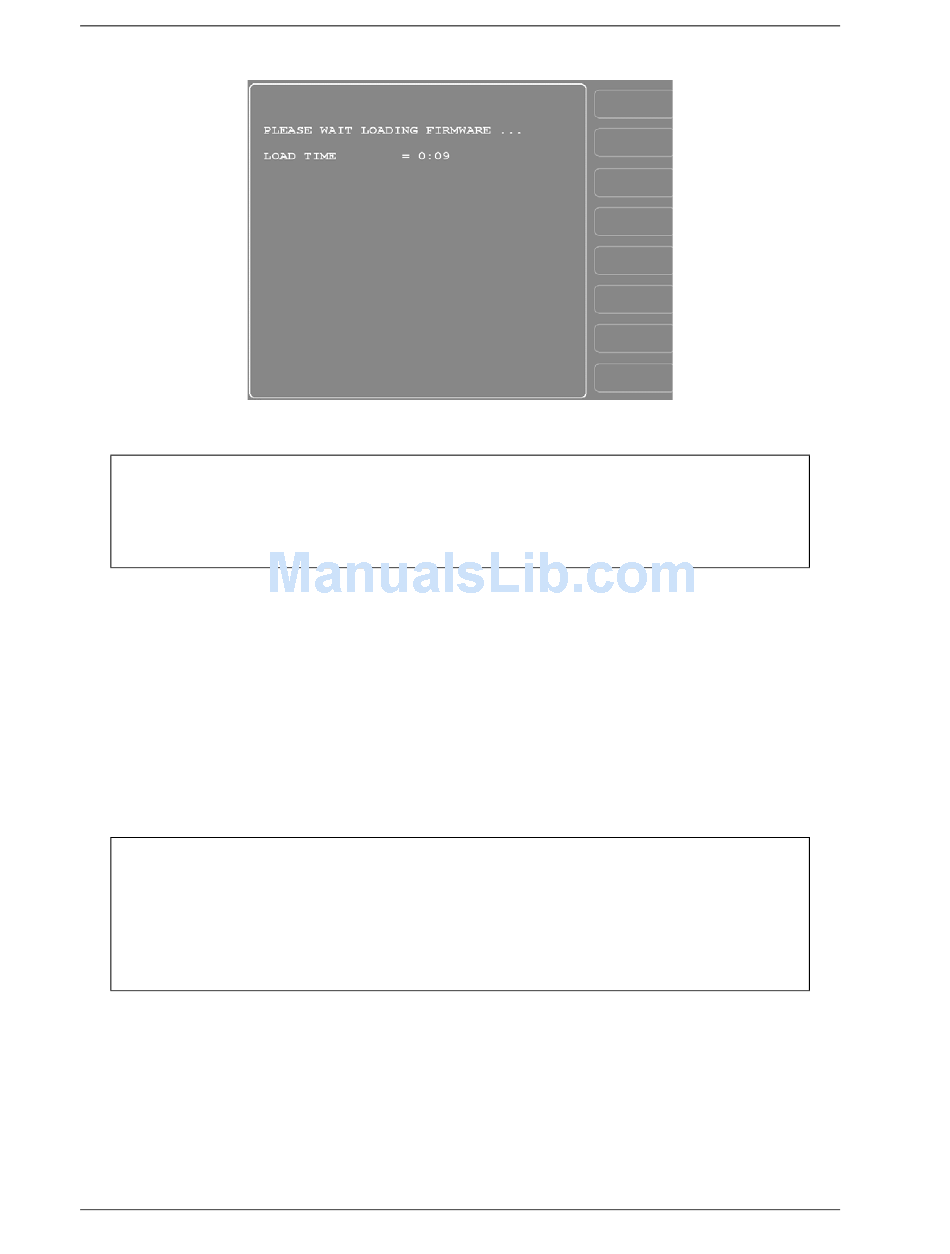

Figure B-4. SmartPAC 2 Display with "Loading Firmware" Message

NOTICE
If power is lost to SmartPAC 2 during installation of the firmware, SmartPAC 2 will default
to the Firmware Load Menu display when the unit is powered back up. Repeat steps 9-11
to install the firmware again.
When the firmware is completely loaded, the Load Time counter stops incrementing, a
12.
yellow status window appears briefly saying "THE DOWNLOAD SEQUENCE IS
COMPLETE," and the SmartPAC 2 will restart (reboot) itself. Once the reboot is
complete, another yellow status window appears saying, "YOU HAVE NOW UPDATED
THE SMARTPAC SOFTWARE. SHUT THE POWER OFF AND THEN TURN IT
BACK ON TO RESTART THE SMARTPAC 2."
Power down the SmartPAC 2. Remove the USB disk from the USB connector.
13.
Power up the SmartPAC 2. Access the Main Initialization Menu and select "INSTALLED
14.
OPTIONS" to check for new installed options or enhancements, if any.
NOTICE
If you have a MultiPAC module connected to SmartPAC 2, the following message may
appear when you power up the unit: "A MULTIPAC MODULE WAS INSTALLED THE
LAST TIME THE UNIT WAS POWERED-UP AND WAS NOT SEEN THIS TIME." If you
receive this message, power down SmartPAC 2 again, then power the unit back up. If the
message still appears, contact Wintriss Tech. Support.
If you suspended a job in order to load SmartPAC 2 firmware, reload the tool and enter the
15.
counts for your job-in-progress from Table B-1, page B2 as follows:
a. Enter Run mode and select COUNTERS.
b. Enter the count values from Table B-1 for each line in the display.
c. When you are finished, you can continue running the job that was in progress.
B-6
SmartPAC 2 User Manual
Updating SmartPAC 2 Firmware
