SmartPAC 2 User Manual
Using both hands, carefully lift the PC board out of the enclosure, or from the mounting
6.
plate if your unit is a panel mount.
Tag or label the board in a conspicuous place to identify it.
7.
Place the old board you have just removed and the new replacement board side by side on
8.
a clean, flat, dry surface.
Carefully eject and remove the compact flash card from the old board and insert it into the
9.
replacement board in the same location (see Figure E-1).
NOTICE
To eject the compact flash card, push the lever on the bottom of the compact flash
receptacle all the way to the left.
To reinstall the compact flash card, insert the card into the flash receptacle with the
INSERT arrow on the label pointing toward the receptacle, and carefully push the card into
the receptacle until you hear it click into place.
Replacing SmartPAC 2 PC Board
INSERT

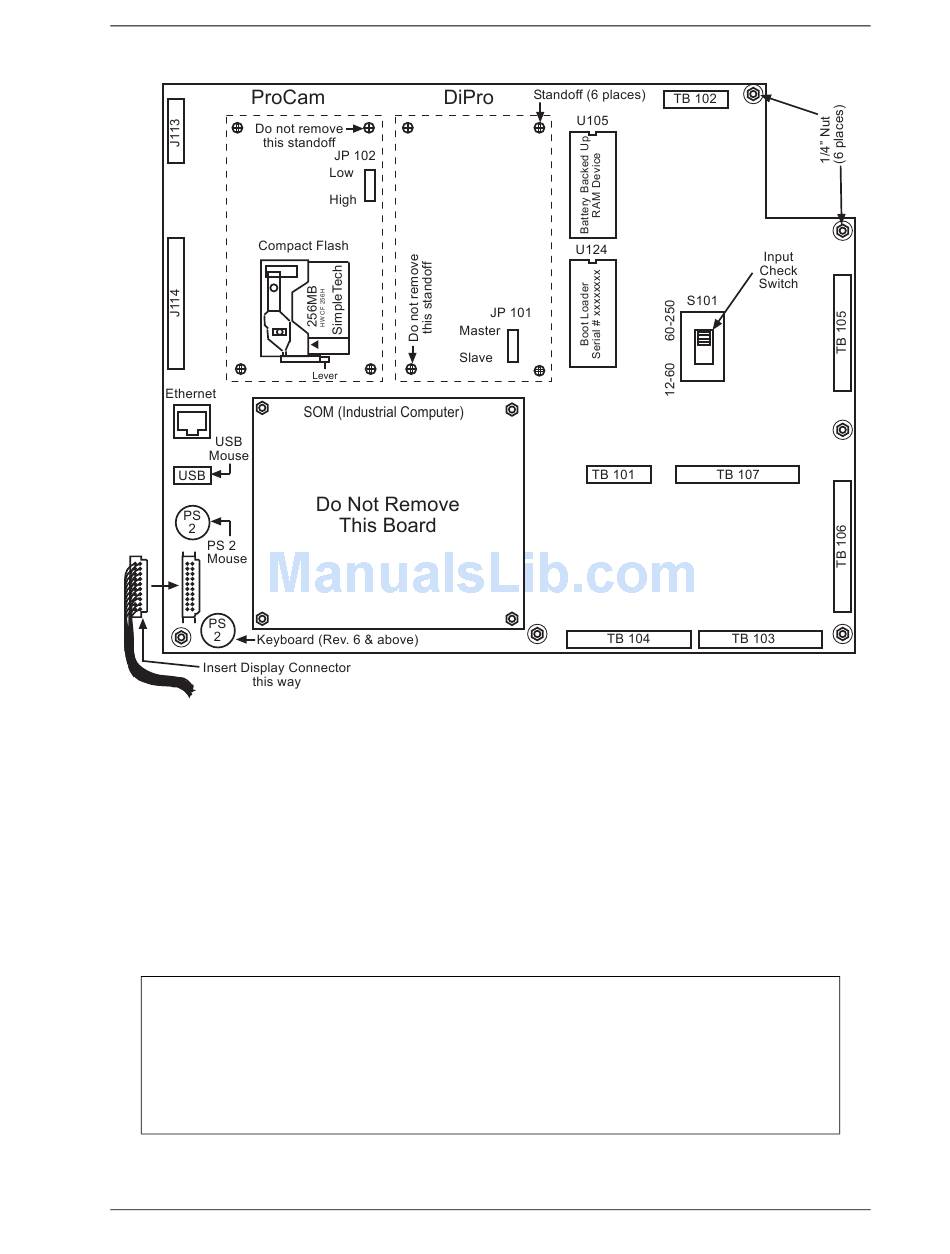

Figure E-1. SmartPAC 2 PC Board

1126700
E-3
